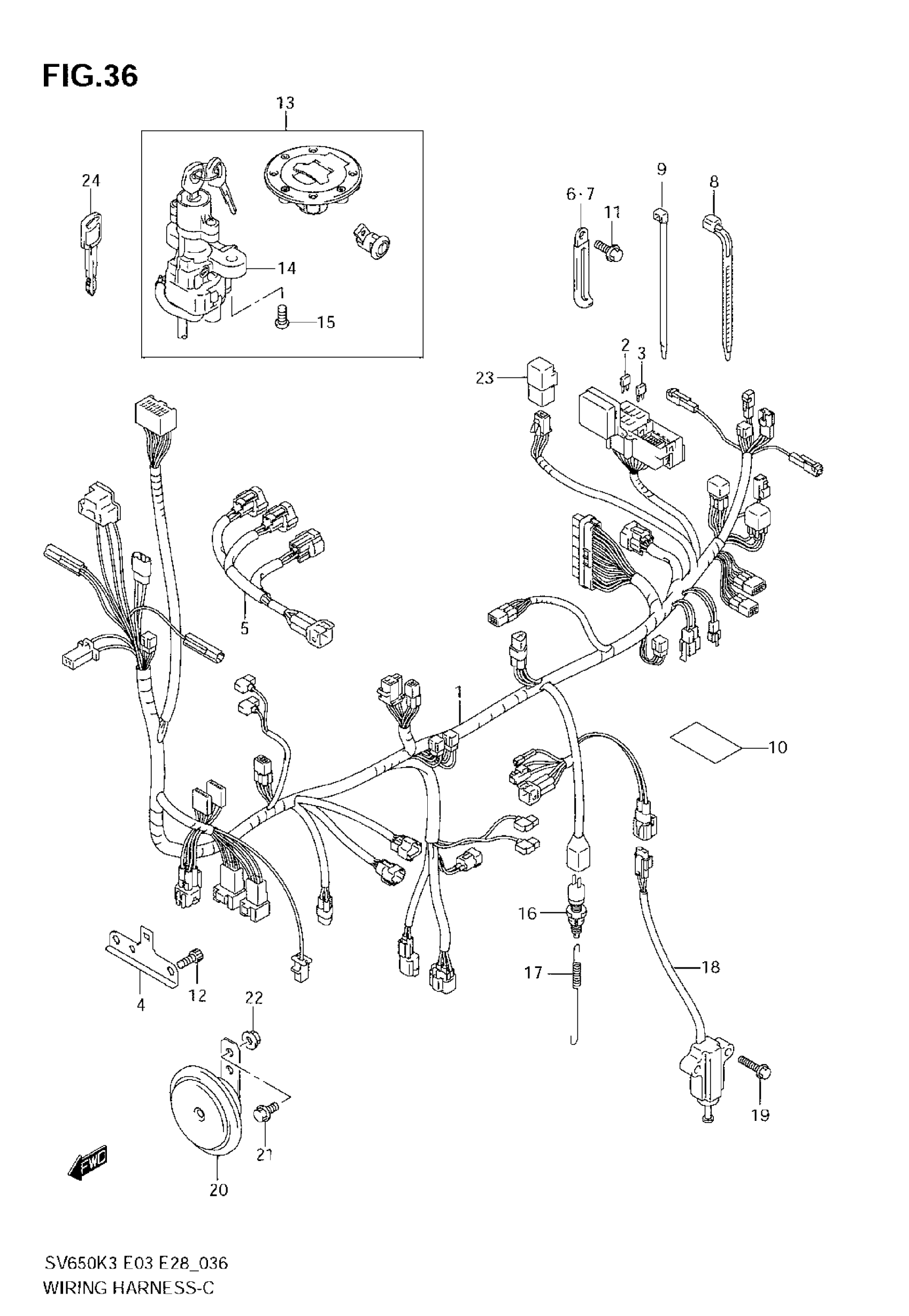

Suzuki SV650 (2007) WIRING HARNESS (SV650K3/K4) Diagram

#

Description
Price

1

HARNESS,WIRING | MODEL K3 This part replaces 36610-17G80.

36610-17GV0

Unavailable

1

HARNESS, WIRING | MODEL K4; Includes Item(s) 2 - 3

36610-17GB0

Unavailable

2

FUSE (10A)

09481-10501

$2.07

3

FUSE (15A)

09481-15501

$2.07

4

HOLDER, COUPLER

36687-17G00

Unavailable

5

WIRE, INJECTOR LEAD

36859-16G00

Unavailable

6

CLAMP (L:45)

09404-06429

$1.82

6

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

7

CLAMP This part replaces 09404-08207.

09404-08212

$1.63

8

CLAMP (L:125)

09407-14403

$2.24

9

CLAMP (L:145)

09407-14407

$2.80

10

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.42

11

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

12

BOLT, NO.3 This part replaces 07130-06103.

07130-0610B

$1.23

13

LOCK SET This part replaces 37000-16820.

37000-16844

$425.42

13

LOCK SET | E33; Includes Item(s) 14 This part replaces 37000-16830.

37000-16852

$429.22

14

LOCK ASSY,STEER This part replaces 37100-16G20.

37100-16G02

$210.22

15

BOLT (8X20)

09139-08016

$3.04

16

SWITCH ASSY, STOP LAMP

37740-24A00

$16.66

17

SPRING | MODEL K3

09443-06005

$3.67

17

SPRING | MODEL K4

09443-06016

$3.58

18

SWITCH ASSY,SID This part replaces 37840-26X50.

37840-26X52

$98.18

19

BOLT (6X25)

09103-06211

$3.62

20

HORN ASSY

38500-17G00

Unavailable

21

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.31

22

NUT This part replaces 08316-10083.

08316-1008B

$2.65

23

RELAY ASSY, FUEL PUMP

38740-24X50

$41.38

24

KEY, BLANK | OPT

37146-33E00

$19.42
