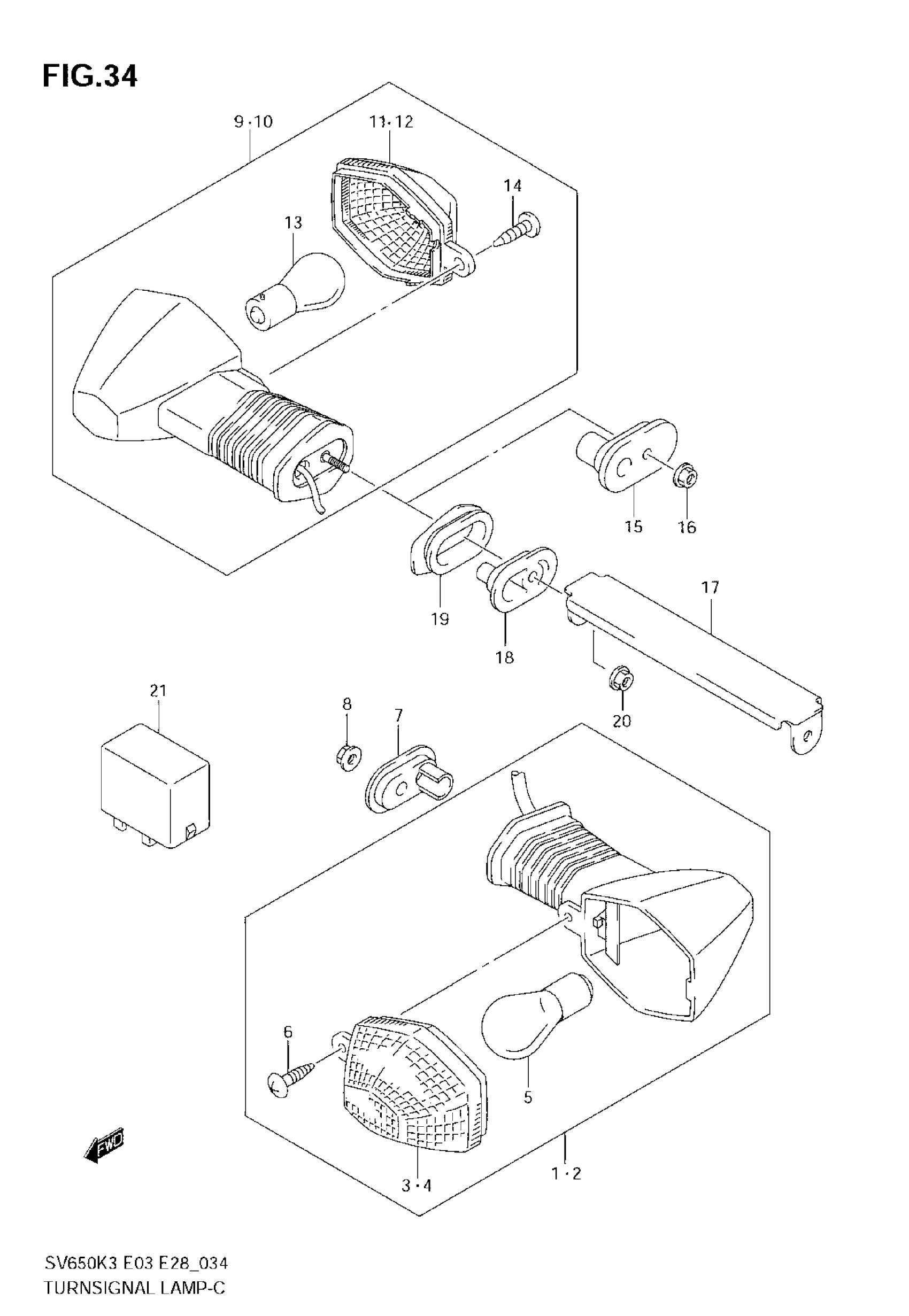

Suzuki SV650 (2007) TURNSIGNAL LAMP (SV650SK3/SK4/SK5/SK6/SK7/SAK7) Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL RH

35601-16G10

$94.43

2

LAMP ASSY, FRONT TURNSIGNAL LH | Includes Item(s) 3 - 6

35602-16G10

$67.29

3

LENS, RH

35612-31F30

$15.68

4

LENS, LH

35632-31F30

$16.23

5

BULB (12V,21W)

09471-12045

$2.95

6

SCREW This part replaces 03242-04163.

03242-0416B

$3.18

7

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.14

8

NUT

08316-1005A

$2.19

9

LAMP ASSY, REAR TURNSIGNAL RH | MODEL K3 This part replaces 35603-16G30.

35603-16GC0

$106.53

9

LAMP ASSY, REAR TURNSIGNAL RH | MODEL K4/K5/K6/K7

35603-16GC0

$106.53

10

LAMP ASSY, REAR TURNSIGNAL LH | MODEL K3

35604-16G30

$62.52

10

LAMP ASSY, REAR TURNSIGNAL LH | MODEL K4/K5/K6/K7; Includes Item(s) 11 - 14

35604-16GC0

$106.53

11

LENS, RH

35632-31F30

$16.23

12

LENS, LH

35612-31F30

$15.68

13

BULB (12V,21W)

09471-12045

$2.95

14

SCREW This part replaces 03242-04163.

03242-0416B

$3.18

15

PLATE,TURNSIGNAL LAMP | MODEL K3

35629-31F40

$4.14

16

NUT | MODEL K3 This part replaces 08316-10053.

08316-1005A

$2.19

17

BRACKET, REAR TURNSIGNAL | MODEL K4/K5/K6/K7

35620-16G00

$17.78

18

PLATE, REAR TURNSIGNAL | MODEL K4/K5/K6/K7

35629-16G00

$6.30

19

CUSHION, REAR | MODEL K4/K5/K6/K7

35647-16G00

$7.30

20

NUT | MODEL K4/K5/K6/K7

08316-1005A

$2.19

21

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
