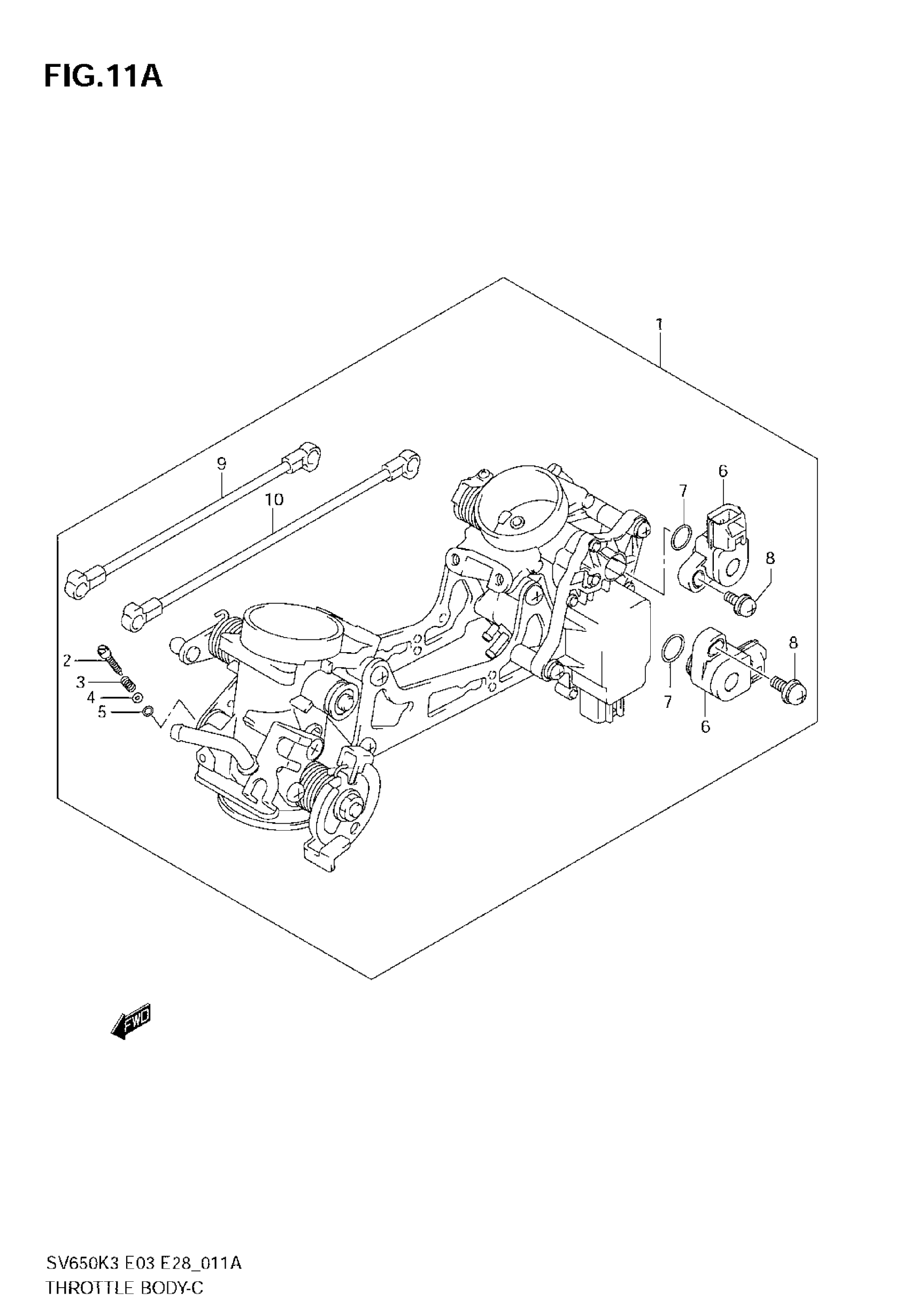

Suzuki SV650 (2007) THROTTLE BODY (MODEL K7) Diagram

THROTTLE BODY | E3,E28

13405-17G20

$1,231.74

THROTTLE BODY | E33; Includes Item(s) 2 - 10

13405-17G30

Unavailable

SCREW

13269-33E00

$11.10

SPRING,THROTTLE SCREW

13268-48700

$4.34

WASHER

13606-47A00

$3.28

O-RING This part replaces 13295-29900.

13295-29901

$4.34

SENSOR ASSY This part replaces 13580-27G20.

13580-27G21

$145.53

.O-RING This part replaces 13575-29G00.

13575-29G01

$3.15

SCREW

13605-02F00

$3.71

ROD ASSY

13552-17G00

$29.33

ROD ASSY

13552-16G00

$29.33
