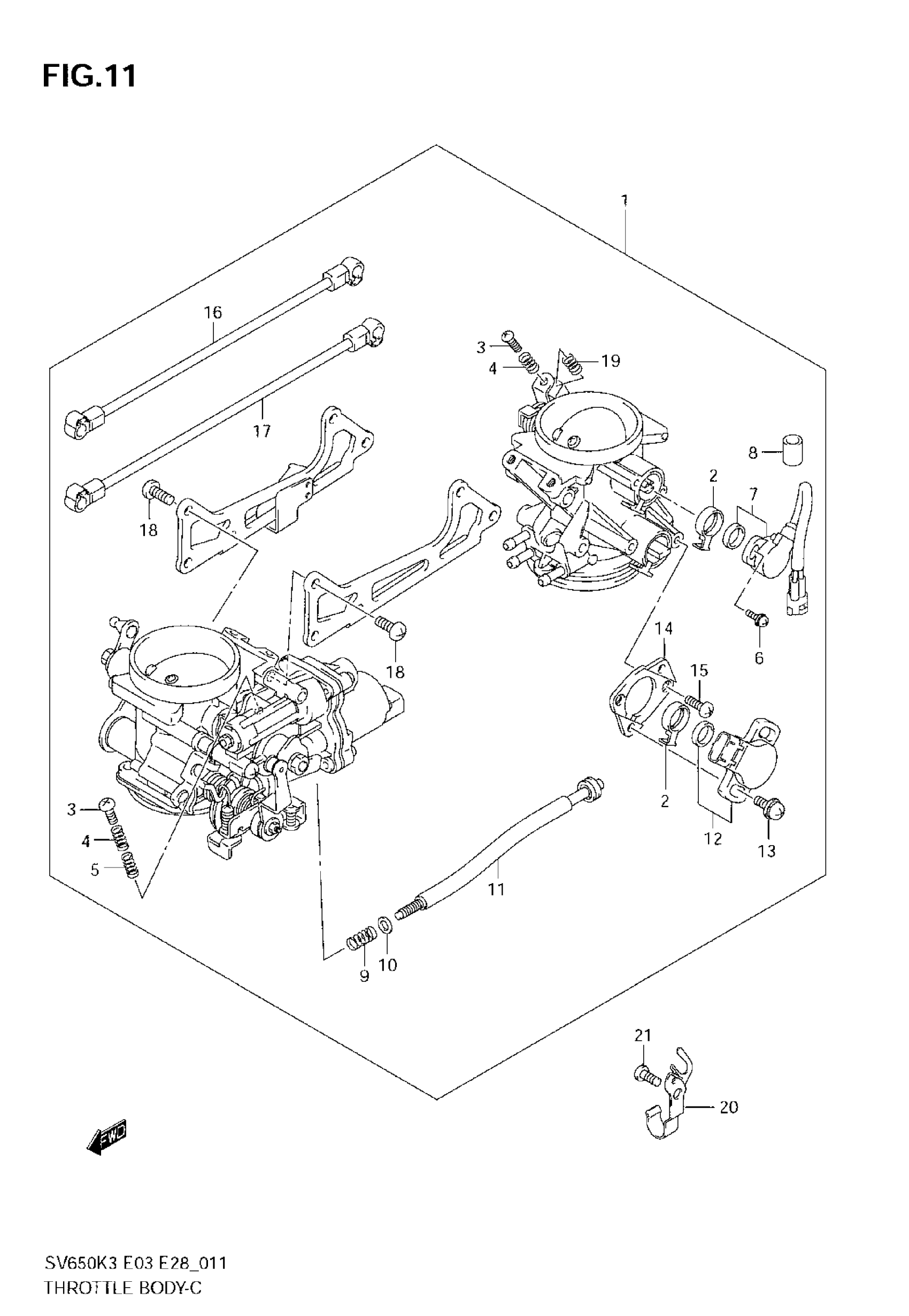

Suzuki SV650 (2007) THROTTLE BODY (MODEL K3/K4/K5/K6) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K3/K4 E3,E28 This part replaces 13405-17G00.

13405-17G02

Unavailable

1

THROTTLE BODY | MODEL K3/K4 E33 This part replaces 13405-17G10.

13405-17G12

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K5/K6 E3,E28 This part replaces 13405-17G01.

13405-17G02

Unavailable

1

THROTTLE BODY | MODEL K5/K6 E33; Includes Item(s) 2 - 19 This part replaces 13405-17G11.

13405-17G12

Unavailable

2

RING

13311-06G00

Unavailable

3

SCREW

13548-42F00

Unavailable

4

SPRING

13271-44B00

$3.89

5

SPRING

13268-96111

$4.35

6

SCREW

13605-39F00

$4.52

7

SENSOR ASSY

13580-16G00

Unavailable

8

HOSE

13683-39F10

Unavailable

9

SPRING

13271-93011

$5.32

10

PACKING

13386-09410

Unavailable

11

ADJUST SCREW ASSY

13270-06G00

$90.23

12

SENSOR ASSY,THR This part replaces 13550-13D60.

13550-13D61

$87.14

13

SCREW

13605-02F00

$3.71

14

PLATE | ?13627-16G00

13627-16G30

Unavailable

15

SCREW

02112-04107

$1.55

16

ROD ASSY

13552-16G10

Unavailable

17

ROD ASSY

13552-16G00

$29.33

18

SCREW

13602-06128

$2.96

19

SPRING

13268-89J00

$5.17

20

PLATE, IDLE ADJUST | MODEL K3/K4

13279-16G00

Unavailable

20

PLATE, IDLE ADJUST | MODEL K5/K6

13279-16G10

Unavailable

21

BOLT This part replaces 01500-06123.

01500-0612A

$1.78
