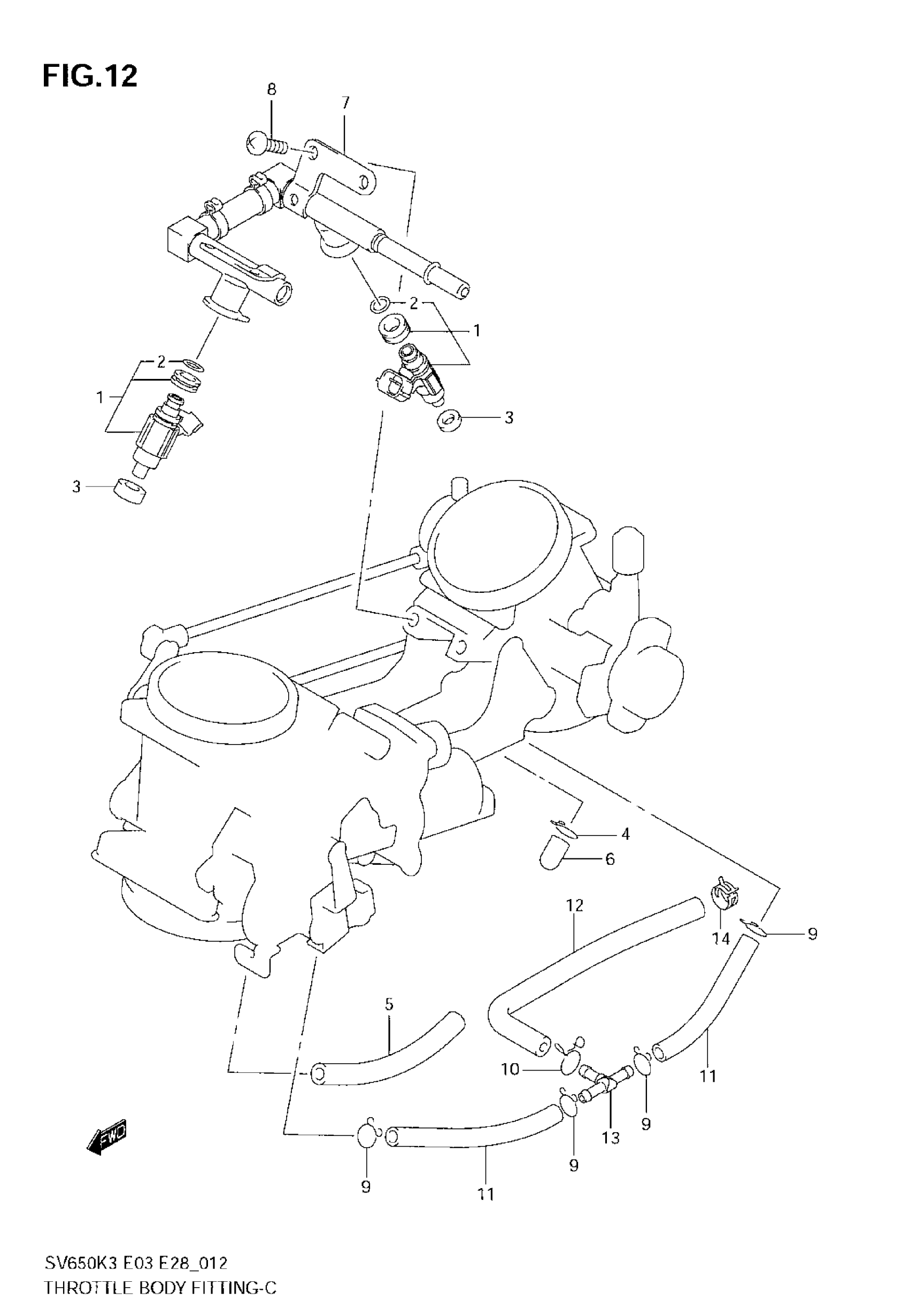

Suzuki SV650 (2007) THROTTLE BODY FITTING (MODEL K3/K4/K5/K6) Diagram

#

Description

Price

1

INJECTOR ASSY | Includes Item(s) 2

15710-17G00

$321.43

2

O RING

15717-16G00

$11.70

3

SEAL

13672-33E00

$10.34

4

CLIP

09401-06101

$2.03

5

HOSE(3.2X7.4X22 | L:225!80 This part replaces 13681-39F00-225.

13681-39F01-225

$10.73

6

CAP | E3,28

13274-84000

$3.82

6

CAP | E33

13274-84000

$3.82

7

DELIVERY PIPE ASSY This part replaces 15730-17G00.

15730-17G01

$306.43

8

SCREW

13602-06128

$2.96

9

CLIP | E33

09401-06101

$2.03

10

CLIP | E33 This part replaces 09401-10410.

09401-10401

$1.49

11

HOSE(3.2X7.4X22 | E33 L:225!70 This part replaces 13681-39F00-225.

13681-39F01-225

$10.73

12

HOSE | E33 This part replaces 13683-16G10.

13683-17G00

Unavailable

13

NIPPLE | E33

13685-04F10

$11.07

14

CLIP (ID:9.4,H:8) | E33

09401-09403

$2.03
