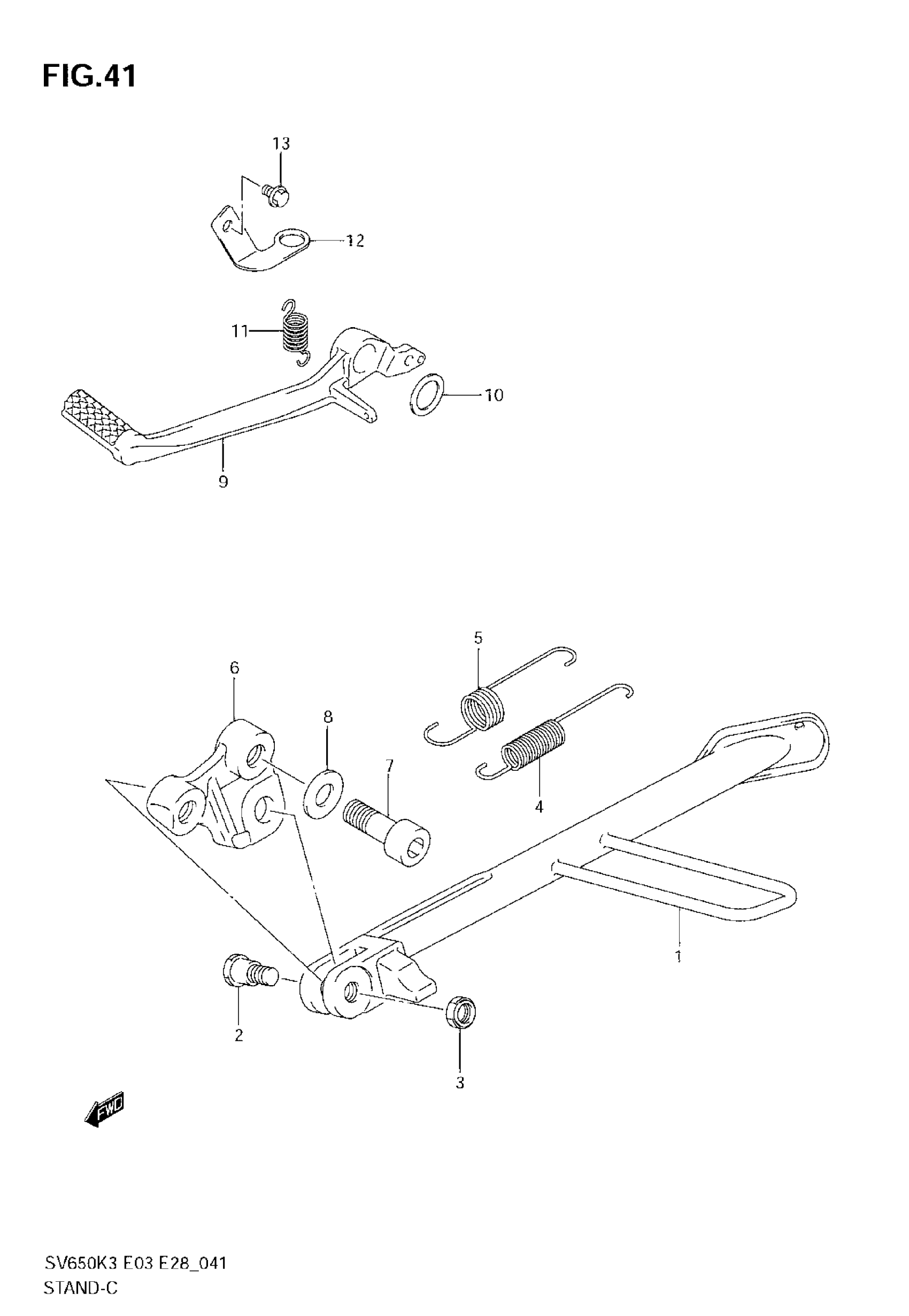

Suzuki SV650 (2007) STAND Diagram

#

Description
Price

1

STAND, PROP | MODEL K3

42310-17G00

Unavailable

1

STAND, PROP | MODEL K4/K5/K6/K7

42310-17G10

$168.60

2

BOLT, PROP STAND

09111-10027

$3.37

3

NUT, PROP STAND

42321-03FK0

$5.17

4

SPRING, INNER

09443-14069

$6.06

5

SPRING, OUTER

09443-19012

$5.89

6

BRACKET, PROP STAND

42330-16G00

$108.15

7

BOLT

09106-12003

$5.10

8

WASHER

09160-12061

$2.15

9

PEDAL, BRAKE

43111-16G00

$120.42

10

WASHER

09160-18022

$2.92

11

SPRING | SV650K3 This part replaces 09443-17024.

09443-17024-XC0

Unavailable

11

SPRING | SV650SK3 This part replaces 09443-13031.

09443-13031-XC0

$6.88

11

SPRING, RETURN | MODEL K4/K5/K6/K7

09443-13035

$6.53

12

BRACKET, STOP SWITCH | SV650K3

43251-16G50

Unavailable

12

BRACKET, STOP SWITCH | SV650SK3

43251-16G00

Unavailable

13

BOLT, CLAMP | MODEL K3 This part replaces 01550-06123.

01550-0612A

$1.97
