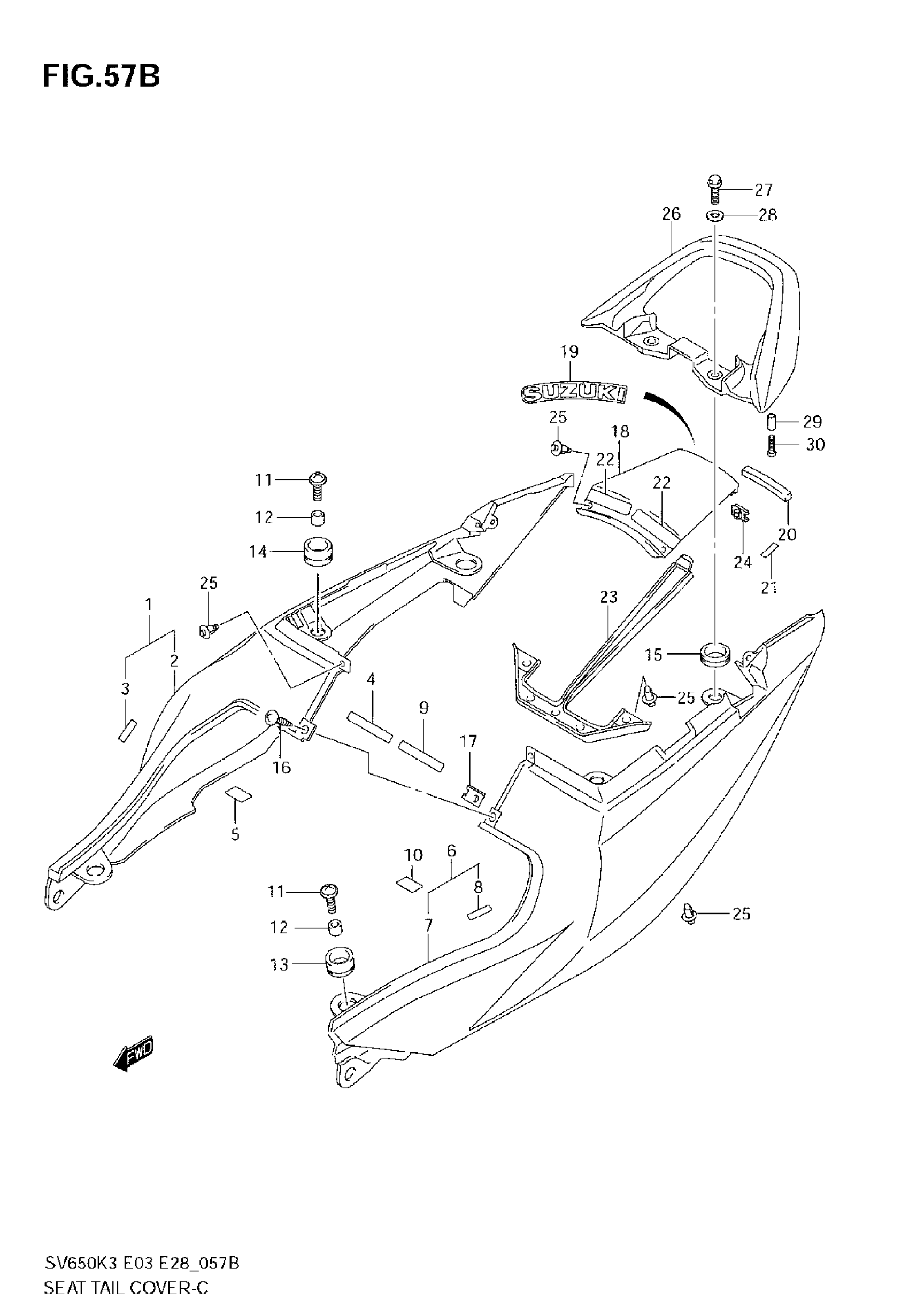

Suzuki SV650 (2007) SEAT TAIL COVER (SV650SK4) Diagram

#

Description
Price

1

COVER,SEAT TAIL This part replaces 45501-16G20-YC2.

45501-16G21-YC2

Unavailable

1

COVER,SEAT TAIL This part replaces 45501-16G20-YU9.

45511-16G02

$79.73

1

COVER SET, SEAT TAIL, R (BLACK) | Includes Item(s) 2 - 5 This part replaces 45501-16G20-YAY.

45501-16G21-YAY

$237.42

2

COVER,SEAT TAIL This part replaces 45511-16G01-YC2.

45501-16G21-YC2

Unavailable

2

COVER,SEAT TAIL This part replaces 45511-16G01-YU9.

45511-16G02

$79.73

2

COVER, SEAT TAIL, R (BLACK)

45511-16G01-YAY

Unavailable

3

TAPE, SEAT TAIL COVER FR

45516-42F00

$8.93

4

TAPE, SEAT TAIL COVER FR NO.2

45517-16G10

Unavailable

5

TAPE, SEAT TAIL COVER FR NO.3

47161-10D00

$5.98

6

COVER,SEAT TAIL This part replaces 45502-16G20-YC2.

45502-16G21-YC2

Unavailable

6

COVER,SEAT TAIL This part replaces 45502-16G20-YU9.

45502-16G21-YU9

Unavailable

6

COVER SET, SEAT TAIL, L (BLACK) | Includes Item(s) 7 - 10 This part replaces 45502-16G20-YAY.

45502-16G21-YAY

$237.42

7

COVER,SEAT TAIL This part replaces 45512-16G01-YC2.

45512-16G02

Unavailable

7

COVER, SEAT TAIL, L (YELLOW)

45512-16G01-YU9

Unavailable

7

COVER, SEAT TAIL, L (BLACK)

45512-16G01-YAY

Unavailable

8

TAPE, SEAT TAIL COVER FR

45516-42F00

$8.93

9

TAPE, SEAT TAIL COVER FR NO.2

45517-16G10

Unavailable

10

TAPE, SEAT TAIL COVER FR NO.3

47161-10D00

$5.98

11

SCREW

09136-06082

$2.12

12

SPACER

09180-06286

$2.50

13

CUSHION | FR This part replaces 09320-10052.

09320-10079

$3.61

14

CUSHION,FRAME COVER UP | CTR This part replaces 47115-16G00.

47115-16G01

$3.37

15

CUSHION (20X32X9) | RR This part replaces 09320-20010.

09320-20011

$2.69

16

SCREW This part replaces 03241-15123.

03241-1512B

$2.39

17

NUT

09148-05038

$1.97

18

COVER,SEAT TAIL This part replaces 45503-16G00-YC2.

45503-16G01-YC2

Unavailable

18

COVER, SEAT TAIL, CENTER (YELLOW)

45503-16G00-YU9

Unavailable

18

COVER,SEAT TAIL | Includes Item(s) 19 - 22 This part replaces 45503-16G00-YAY.

45503-16G01-YAY

$95.77

19

.EMBLEM,SUZUKI (SILVER) This part replaces 68161-16G00-YD8.

68161-16G01-YD8

$7.20

20

CUSHION, SEAT TAIL COVER CTR

45518-16G00

$6.47

21

TAPE, SEAT TAIL COVER

45517-16G00

$8.05

22

TAPE

45516-42F00

$8.93

23

COVER, SEAT TAIL, REAR (BLUE)

45514-16G00-YC2

$71.72

23

COVER, SEAT TAIL, REAR (YELLOW)

45514-16G00-YU9

Unavailable

23

COVER, SEAT TAIL, REAR (BLACK)

45514-16G00-YAY

$77.92

24

NUT

09148-06018

$3.16

25

CLIP

09409-06314-5PK

$2.78

26

HANDLE, PILLION RIDER (BLUE)

46211-16G00-YC2

Unavailable

26

HANDLE,PILLION This part replaces 46211-16G00-YU9.

46211-16G00-13L

$283.85

26

HANDLE, PILLION RIDER (BLACK)

46211-16G00-YAY

Unavailable

27

BOLT This part replaces 01551-08403.

01551-0840B

$3.29

28

WASHER

09160-08501

$2.28

29

SPACER

09180-06271

$2.35

30

SCREW

09139-06112

$3.93
