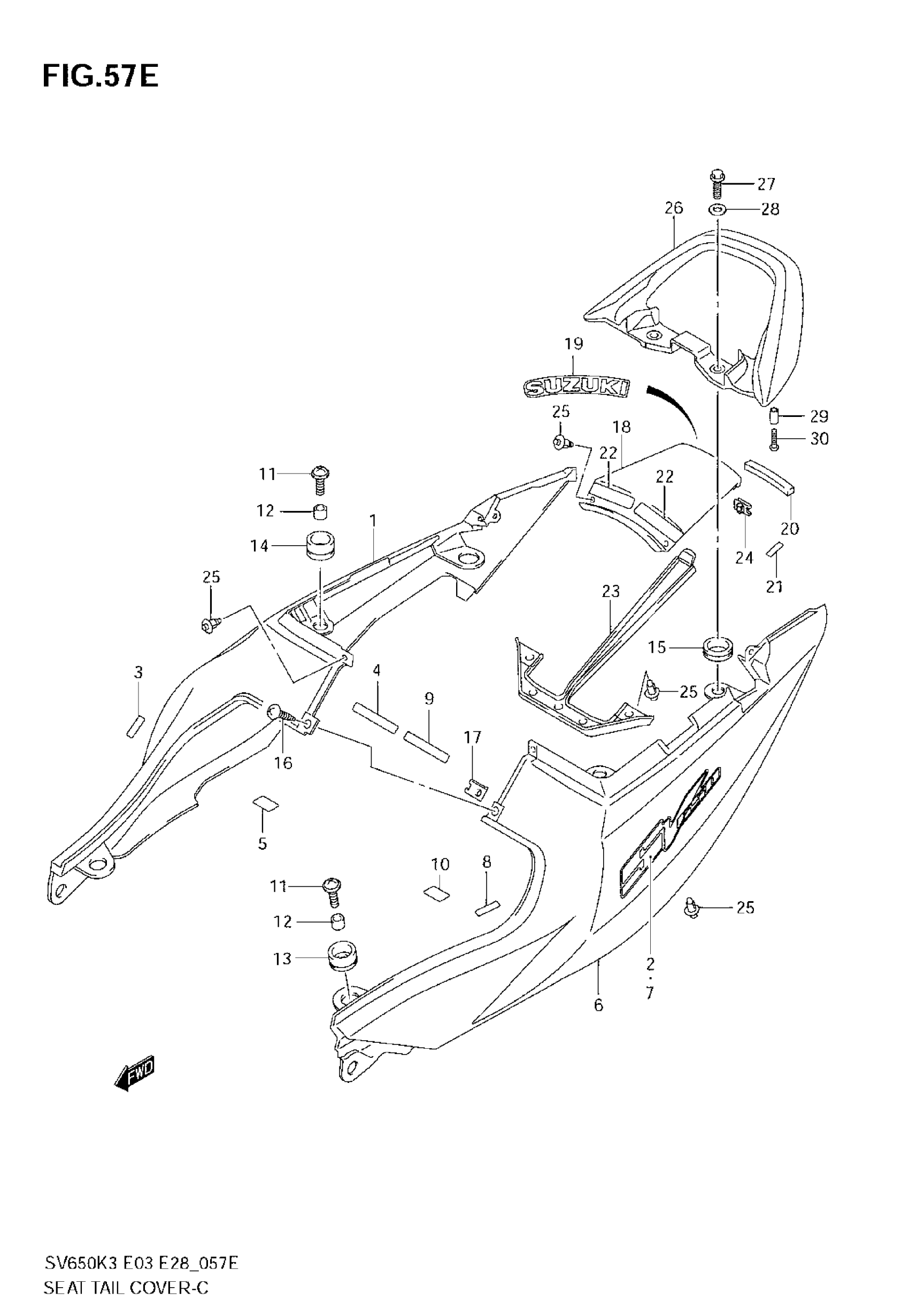

Suzuki SV650 (2007) SEAT TAIL COVER (SV650K6) Diagram

#

Description
Price

1

COVER, SEAT TAIL, R (SILVER)

45501-17G11-YDV

Unavailable

1

COVER, SEAT TAIL, R (GRAY)

45501-17G11-YHF

Unavailable

1

COVER,SEAT TAIL This part replaces 45501-17G11-YHH.

45501-17G12-YHH

Unavailable

1

COVER,SEAT TAIL | Includes Item(s) 2 - 5 This part replaces 45501-17G11-YHJ.

45501-17G12-YHJ

$213.38

2

EMBLEM, SEAT TAIL COVER | FOR YDV

68161-17G00-CTB

Unavailable

2

EMBLEM, SEAT TAIL COVER | FOR YHF

68161-17G00-CTC

Unavailable

2

EMBLEM,SEAT TAI | FOR YHH This part replaces 68161-17G00-CTD.

68161-17G01-CTD

$24.12

2

EMBLEM, SEAT TAIL COVER | FOR YHJ

68161-17G00-CTE

Unavailable

3

TAPE, SEAT TAIL COVER FR

45516-42F00

$10.08

4

TAPE, SEAT TAIL COVER FR NO.2

45517-16G10

Unavailable

5

TAPE, SEAT TAIL COVER FR NO.3

47161-10D00

$6.75

6

COVER, SEAT TAIL, L (SILVER)

45502-17G11-YDV

Unavailable

6

COVER, SEAT TAIL, L (GRAY)

45502-17G11-YHF

Unavailable

6

COVER, SEAT TAIL, L (RED)

45502-17G11-YHH

Unavailable

6

COVER,SEAT TAIL | Includes Item(s) 7 - 10 This part replaces 45502-17G11-YHJ.

45502-17G12-YHJ

$213.38

7

EMBLEM, SEAT TAIL COVER | FOR YDV

68161-17G00-CTB

Unavailable

7

EMBLEM, SEAT TAIL COVER | FOR YHF

68161-17G00-CTC

Unavailable

7

EMBLEM,SEAT TAI | FOR YHH This part replaces 68161-17G00-CTD.

68161-17G01-CTD

$24.12

7

EMBLEM, SEAT TAIL COVER | FOR YHJ

68161-17G00-CTE

Unavailable

8

TAPE, SEAT TAIL COVER FR

45516-42F00

$10.08

9

TAPE, SEAT TAIL COVER FR NO.2

45517-16G10

Unavailable

10

TAPE, SEAT TAIL COVER FR NO.3

47161-10D00

$6.75

11

SCREW

09136-06082

$2.13

12

SPACER

09180-06286

$2.53

13

CUSHION | FR This part replaces 09320-10052.

09320-10079

$3.32

14

CUSHION,FRAME COVER UP | CTR This part replaces 47115-16G00.

47115-16G01

$3.17

15

CUSHION (20X32X9) | RR This part replaces 09320-20010.

09320-20011

$2.71

16

SCREW This part replaces 03241-15123.

03241-1512B

$2.38

17

NUT

09148-05038

$1.97

18

COVER, SEAT TAIL, CENTER (SILVER) | E28

45503-16G00-YDV

Unavailable

18

COVER, SEAT TAIL, CENTER (GRAY) | E28

45503-16G00-YHF

Unavailable

18

COVER,SEAT TAIL This part replaces 45503-16G00-YHH.

45513-16G00

$44.72

18

COVER,SEAT TAIL | Includes Item(s) 19 - 22 This part replaces 45503-16G00-YHJ.

45513-16G00

$44.72

19

.EMBLEM,SUZUKI (SILVER) | FOR YHF,YHH,YHJ This part replaces 68161-16G00-YD8.

68161-16G01-YD8

Unavailable

19

EMBLEM, "SUZUKI" | FOR YDV

68161-16G00-17U

Unavailable

20

CUSHION, SEAT TAIL COVER CTR

45518-16G00

$7.30

21

TAPE, SEAT TAIL COVER

45517-16G00

$9.08

22

TAPE

45516-42F00

$10.08

23

COVER, SEAT TAIL, REAR (SILVER) | E28

45514-16G00-YDV

Unavailable

23

COVER, SEAT TAIL, REAR (GRAY) | E28

45514-16G00-YHF

Unavailable

23

COVER,SEAT TAIL This part replaces 45514-16G00-YHH.

45514-16G00

$29.40

23

COVER, SEAT TAIL, REAR (BLUE)

45514-16G00-YHJ

Unavailable

24

NUT

09148-06018

$2.90

25

CLIP

09409-06314-5PK

$2.80

26

HANDLE, PILLION RIDER (SILVER) | E28

46211-16G00-YDV

Unavailable

26

HANDLE, PILLION RIDER (GRAY) | E28

46211-16G00-YHF

Unavailable

26

HANDLE,PILLION This part replaces 46211-16G00-YHH.

46211-16G00-13L

$315.87

26

HANDLE, PILLION RIDER (BLUE)

46211-16G00-YHJ

Unavailable

27

BOLT This part replaces 01551-08403.

01551-0840B

$3.01

28

WASHER

09160-08501

$2.29

29

SPACER

09180-06271

$2.17

30

SCREW

09139-06112

$4.28
