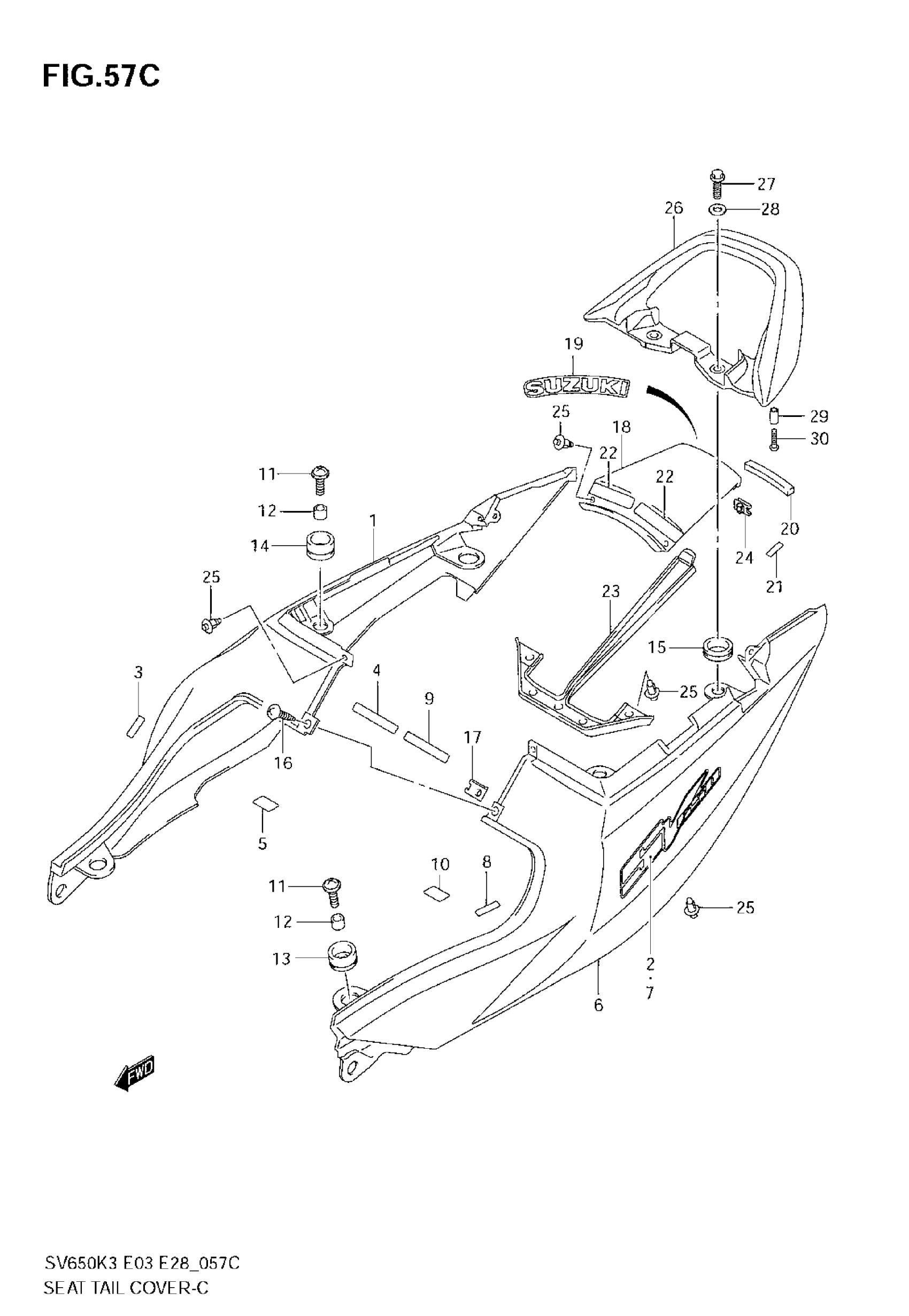

Suzuki SV650 (2007) SEAT TAIL COVER (SV650K5) Diagram

#

Description
Price

1

COVER,SEAT TAIL This part replaces 45501-17G20-YC2.

45501-17G21-YC2

Unavailable

1

COVER,SEAT TAIL This part replaces 45501-17G20-YEC.

45501-17G21-YEC

Unavailable

1

COVER, SEAT TAIL, R (BLACK)

45501-17G20-YAY

Unavailable

1

COVER, SEAT TAIL, R (RED) | Includes Item(s) 2 - 5

45501-17G20-YU7

Unavailable

2

EMBLEM, SEAT TAIL COVER | FOR YC2

68161-17G10-BRT

Unavailable

2

EMBLEM, SEAT TAIL COVER | FOR YEC

68161-17G10-BRV

Unavailable

2

EMBLEM, SEAT TAIL COVER | FOR YAY

68161-17G10-BRS

Unavailable

2

EMBLEM, SEAT TAIL COVER | FOR YU7

68161-17G10-BRU

Unavailable

3

TAPE, SEAT TAIL COVER FR

45516-42F00

$8.93

4

TAPE, SEAT TAIL COVER FR NO.2

45517-16G10

Unavailable

5

TAPE, SEAT TAIL COVER FR NO.3

47161-10D00

$5.98

6

COVER,SEAT TAIL This part replaces 45502-17G20-YC2.

45502-17G21-YC2

Unavailable

6

COVER,SEAT TAIL This part replaces 45502-17G20-YEC.

45502-17G21-YEC

Unavailable

6

COVER, SEAT TAIL, L (BLACK)

45502-17G20-YAY

Unavailable

6

COVER, SEAT TAIL, L (RED) | Includes Item(s) 7 - 10

45502-17G20-YU7

Unavailable

7

EMBLEM, SEAT TAIL COVER | FOR YC2

68161-17G10-BRT

Unavailable

7

EMBLEM, SEAT TAIL COVER | FOR YEC

68161-17G10-BRV

Unavailable

7

EMBLEM, SEAT TAIL COVER | FOR YAY

68161-17G10-BRS

Unavailable

7

EMBLEM, SEAT TAIL COVER | FOR YU7

68161-17G10-BRU

Unavailable

8

TAPE, SEAT TAIL COVER FR

45516-42F00

$8.93

9

TAPE, SEAT TAIL COVER FR NO.2

45517-16G10

Unavailable

10

TAPE, SEAT TAIL COVER FR NO.3

47161-10D00

$5.98

11

SCREW

09136-06082

$2.12

12

SPACER

09180-06286

$2.50

13

CUSHION | FR This part replaces 09320-10052.

09320-10079

$3.61

14

CUSHION,FRAME COVER UP | CTR This part replaces 47115-16G00.

47115-16G01

$3.37

15

CUSHION (20X32X9) | RR This part replaces 09320-20010.

09320-20011

$2.69

16

SCREW This part replaces 03241-15123.

03241-1512B

$2.39

17

NUT

09148-05038

$1.97

18

COVER,SEAT TAIL This part replaces 45503-16G00-YC2.

45503-16G01-YC2

Unavailable

18

COVER, SEAT TAIL, CENTER (YELLOW)

45503-16G00-YEC

Unavailable

18

COVER,SEAT TAIL This part replaces 45503-16G00-YAY.

45503-16G01-YAY

$95.77

18

COVER, SEAT TAIL, CENTER (RED) | Includes Item(s) 19 - 22

45503-16G00-YU7

Unavailable

19

.EMBLEM,SUZUKI (SILVER) | FOR YC2,YAY,YU7 This part replaces 68161-16G00-YD8.

68161-16G01-YD8

$7.20

19

EMBLEM, "SUZUKI" | FOR YEC

68161-16G00-17U

Unavailable

20

CUSHION, SEAT TAIL COVER CTR

45518-16G00

$6.47

21

TAPE, SEAT TAIL COVER

45517-16G00

$8.05

22

TAPE

45516-42F00

$8.93

23

COVER, SEAT TAIL, REAR (BLUE)

45514-16G00-YC2

$71.72

23

COVER,SEAT TAIL This part replaces 45514-16G00-YEC.

45514-16G00

$26.05

23

COVER, SEAT TAIL, REAR (BLACK)

45514-16G00-YAY

$77.92

23

COVER, SEAT TAIL, REAR (RED)

45514-16G00-YU7

Unavailable

24

NUT

09148-06018

$3.16

25

CLIP

09409-06314-5PK

$2.78

26

HANDLE, PILLION RIDER (BLUE)

46211-16G00-YC2

Unavailable

26

HANDLE,PILLION This part replaces 46211-16G00-YEC.

46211-16G00-13L

$283.85

26

HANDLE, PILLION RIDER (BLACK)

46211-16G00-YAY

Unavailable

26

HANDLE,PILLION This part replaces 46211-16G00-YU7.

46211-16G00-13L

$283.85

27

BOLT This part replaces 01551-08403.

01551-0840B

$3.29

28

WASHER

09160-08501

$2.28

29

SPACER

09180-06271

$2.35

30

SCREW

09139-06112

$3.93
