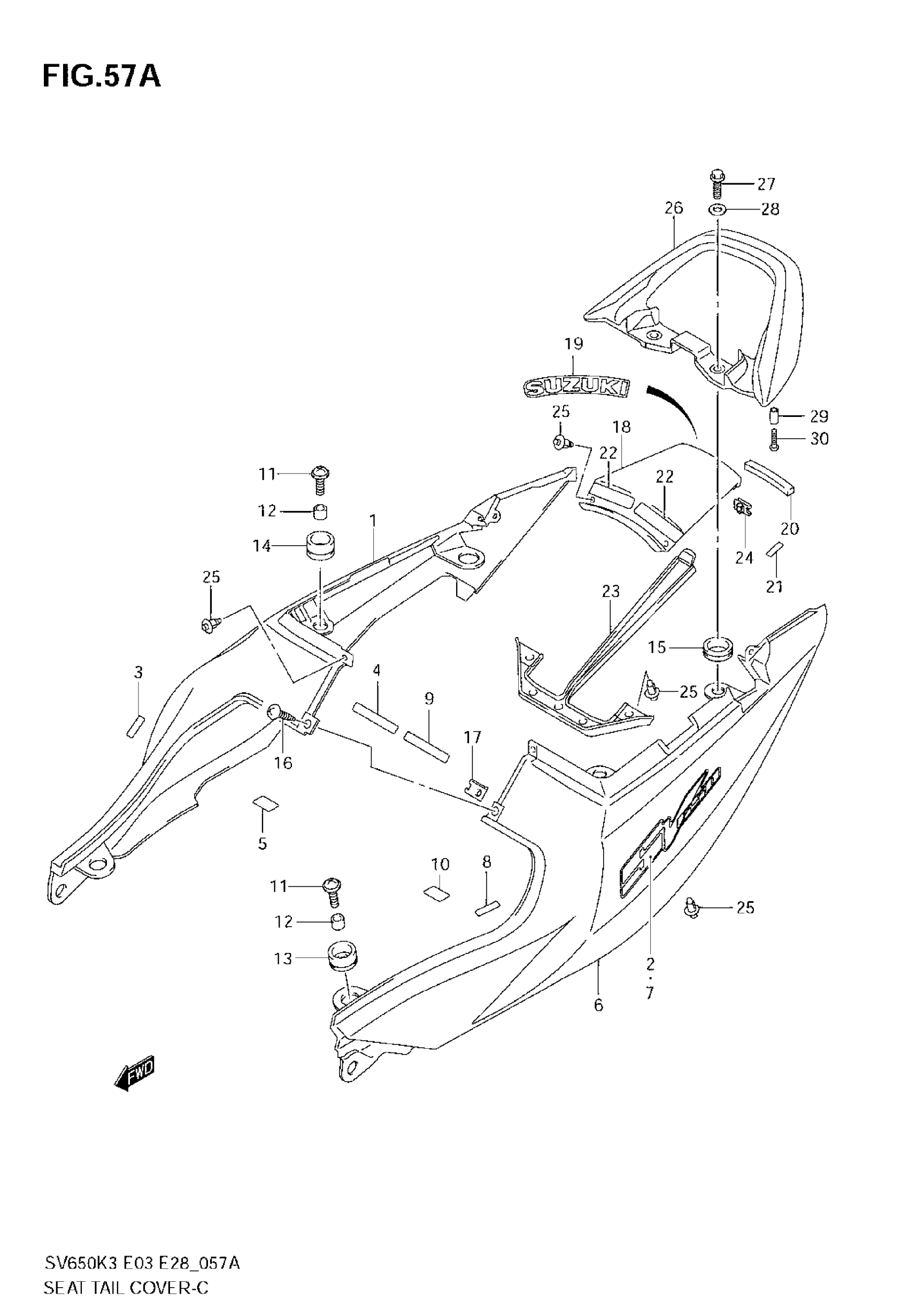

Suzuki SV650 (2007) SEAT TAIL COVER (SV650K4) Diagram

#

Description
Price

1

COVER,SEAT TAIL This part replaces 45501-17G10-YEX.

45501-17G11-YEX

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 45501-17G10-YU9.

45501-17G11-YU9

Unavailable

1

COVER, SEAT TAIL, R (BLACK) | Includes Item(s) 2 - 5

45501-17G10-YAY

Unavailable

2

EMBLEM, SEAT TAIL COVER | FOR YEX

68161-17G00-APF

Unavailable

2

EMBLEM, SEAT TAIL COVER | FOR YU9

68161-17G00-APG

Unavailable

2

EMBLEM, SEAT TAIL COVER | FOR YAY

68161-17G00-APH

Unavailable

3

TAPE, SEAT TAIL COVER FR

45516-42F00

$10.08

4

TAPE, SEAT TAIL COVER FR NO.2

45517-16G10

Unavailable

5

TAPE, SEAT TAIL COVER FR NO.3

47161-10D00

$6.75

6

COVER,SEAT TAIL This part replaces 45502-17G10-YEX.

45502-17G11-YEX

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 45502-17G10-YU9.

45502-17G11-YU9

Unavailable

6

COVER, SEAT TAIL, L (BLACK) | Includes Item(s) 7 - 10

45502-17G10-YAY

Unavailable

7

EMBLEM, SEAT TAIL COVER | FOR YEX

68161-17G00-APF

Unavailable

7

EMBLEM, SEAT TAIL COVER | FOR YU9

68161-17G00-APG

Unavailable

7

EMBLEM, SEAT TAIL COVER | FOR YAY

68161-17G00-APH

Unavailable

8

TAPE, SEAT TAIL COVER FR

45516-42F00

$10.08

9

TAPE, SEAT TAIL COVER FR NO.2

45517-16G10

Unavailable

10

TAPE, SEAT TAIL COVER FR NO.3

47161-10D00

$6.75

11

SCREW

09136-06082

$2.13

12

SPACER

09180-06286

$2.53

13

CUSHION | FR This part replaces 09320-10052.

09320-10079

$3.32

14

CUSHION,FRAME COVER UP | CTR This part replaces 47115-16G00.

47115-16G01

$3.17

15

CUSHION (20X32X9) | RR This part replaces 09320-20010.

09320-20011

$2.71

16

SCREW This part replaces 03241-15123.

03241-1512B

$2.38

17

NUT

09148-05038

$1.97

18

COVER,SEAT TAIL This part replaces 45503-16G00-YC2.

45503-16G01-YC2

Unavailable

18

COVER, SEAT TAIL, CENTER (YELLOW)

45503-16G00-YU9

Unavailable

18

COVER,SEAT TAIL | Includes Item(s) 19 - 22 This part replaces 45503-16G00-YAY.

45503-16G01-YAY

$107.57

19

.EMBLEM,SUZUKI (SILVER) This part replaces 68161-16G00-YD8.

68161-16G01-YD8

Unavailable

20

CUSHION, SEAT TAIL COVER CTR

45518-16G00

$7.30

21

TAPE, SEAT TAIL COVER

45517-16G00

$9.08

22

TAPE

45516-42F00

$10.08

23

COVER, SEAT TAIL, REAR (BLUE)

45514-16G00-YC2

Unavailable

23

COVER, SEAT TAIL, REAR (YELLOW)

45514-16G00-YU9

Unavailable

23

COVER, SEAT TAIL, REAR (BLACK)

45514-16G00-YAY

$87.95

24

NUT

09148-06018

$2.90

25

CLIP

09409-06314-5PK

$2.80

26

HANDLE, PILLION RIDER (BLUE)

46211-16G00-YC2

Unavailable

26

HANDLE,PILLION This part replaces 46211-16G00-YU9.

46211-16G00-13L

$315.87

26

HANDLE, PILLION RIDER (BLACK)

46211-16G00-YAY

Unavailable

27

BOLT This part replaces 01551-08403.

01551-0840B

$3.01

28

WASHER

09160-08501

$2.29

29

SPACER

09180-06271

$2.17

30

SCREW

09139-06112

$4.28
