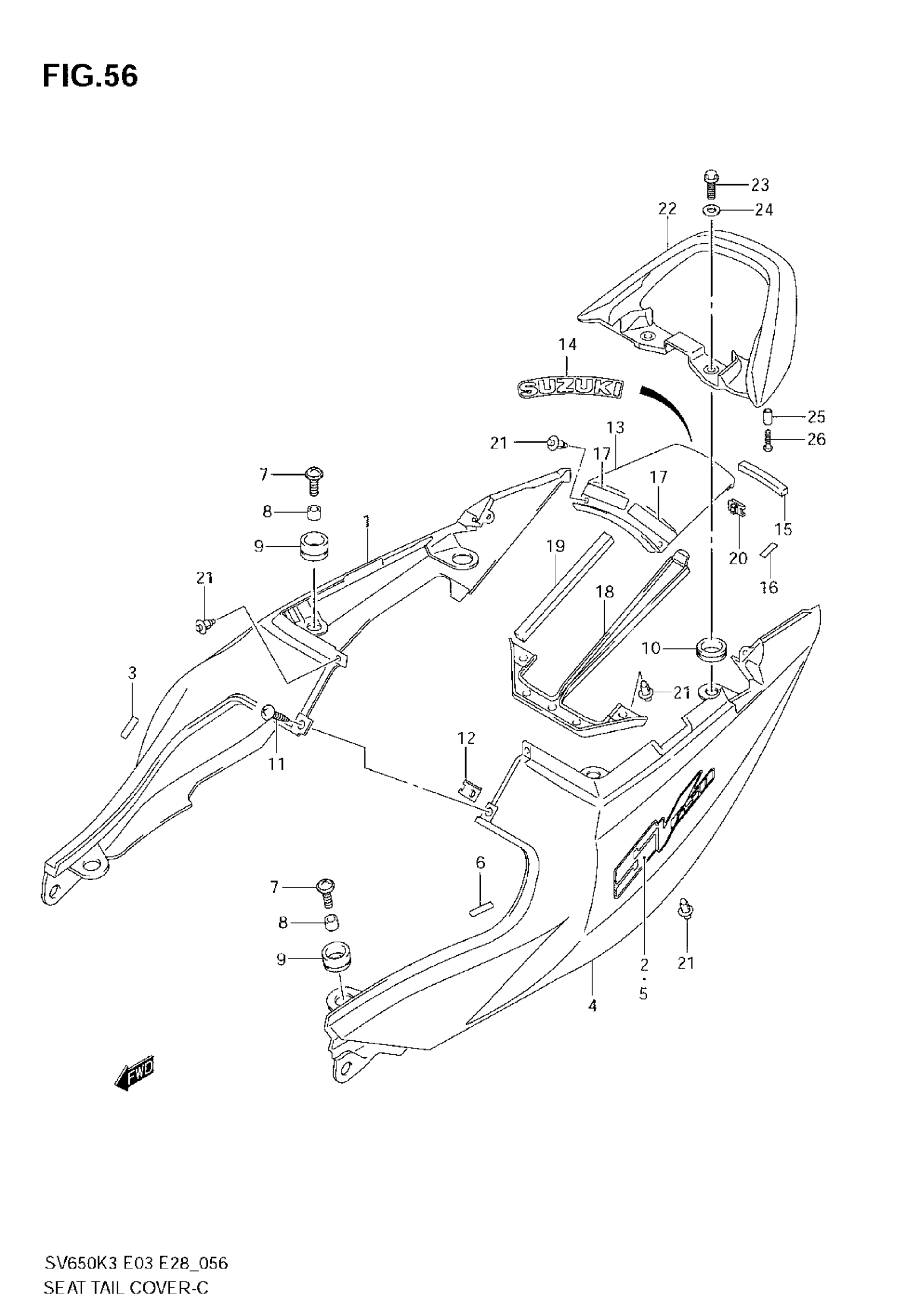

Suzuki SV650 (2007) SEAT TAIL COVER (SV650K3) Diagram

#

Description
Price

1

COVER,SEAT TAIL This part replaces 45501-17G00-YC2.

45501-17G01-YC2

Unavailable

1

COVER, SEAT TAL This part replaces 45501-17G00-YD8.

45501-17G01-YD8

Unavailable

1

COVER, SEAT TAIL, R (BLACK) | Includes Item(s) 2 - 3

45501-17G00-33J

Unavailable

2

EMBLEM, SEAT TAIL COVER | FOR YC2

68161-17G00-ML6

Unavailable

2

EMBLEM, SEAT TAIL COVER | FOR YD8

68161-17G00-ML4

Unavailable

2

EMBLEM, SEAT TAIL COVER | FOR 33J

68161-17G00-ML5

Unavailable

3

TAPE, SEAT TAIL COVER FR

45516-42F00

$8.93

4

COVER,SEAT TAIL This part replaces 45502-17G00-YC2.

45502-17G02-YC2

$264.02

4

COVER,SEAT TAIL This part replaces 45502-17G00-YD8.

45502-17G02-YD8

Unavailable

4

COVER, SEAT TAIL, L (BLACK) | Includes Item(s) 5 - 6

45502-17G00-33J

Unavailable

5

EMBLEM, SEAT TAIL COVER | FOR YC2

68161-17G00-ML6

Unavailable

5

EMBLEM, SEAT TAIL COVER | FOR YD8

68161-17G00-ML4

Unavailable

5

EMBLEM, SEAT TAIL COVER | FOR 33J

68161-17G00-ML5

Unavailable

6

TAPE, SEAT TAIL COVER FR

45516-42F00

$8.93

7

SCREW

09136-06105

$1.97

8

SPACER

09180-06286

$2.50

9

CUSHION | FR,CTR

09320-10045

$3.76

10

CUSHION (20X32X9) | RR This part replaces 09320-20010.

09320-20011

$2.69

11

SCREW This part replaces 03241-15123.

03241-1512B

$2.39

12

NUT

09148-05038

$1.97

13

COVER,SEAT TAIL This part replaces 45503-16G00-YC2.

45503-16G01-YC2

Unavailable

13

COVER, SEAT TAIL, CENTER (SILVER)

45503-16G00-YD8

Unavailable

13

COVER, SEAT TAIL, CENTER (BLACK) | Includes Item(s) 14 - 17

45503-16G00-33J

Unavailable

14

.EMBLEM,SUZUKI (SILVER) | FOR YC2,33J This part replaces 68161-16G00-YD8.

68161-16G01-YD8

$7.20

14

EMBLEM, "SUZUKI" | FOR YD8

68161-16G00-YU8

Unavailable

15

CUSHION, SEAT TAIL COVER CTR

45518-16G00

$6.47

16

TAPE, SEAT TAIL COVER

45517-16G00

$8.05

17

TAPE

45516-42F00

$8.93

18

COVER, SEAT TAIL, REAR (BLUE)

45514-16G00-YC2

$71.72

18

COVER, SEAT TAIL, REAR (SILVER)

45514-16G00-YD8

Unavailable

18

COVER, SEAT TAIL, REAR (BLACK)

45514-16G00-33J

Unavailable

19

CUSHION,SEAT TA This part replaces 45519-16G00.

45519-16G01

$7.38

20

NUT

09148-06018

$3.16

21

CLIP

09409-06314-5PK

$2.78

22

HANDLE, PILLION RIDER (BLUE)

46211-16G00-YC2

Unavailable

22

HANDLE, PILLION RIDER (SILVER)

46211-16G00-YD8

Unavailable

22

HANDLE,PILLION This part replaces 46211-16G00-33J.

46211-16G00-13L

$283.85

23

BOLT This part replaces 01551-08403.

01551-0840B

$3.29

24

WASHER

09160-08501

$2.28

25

SPACER

09180-06271

$2.35

26

SCREW

09139-06112

$3.93
