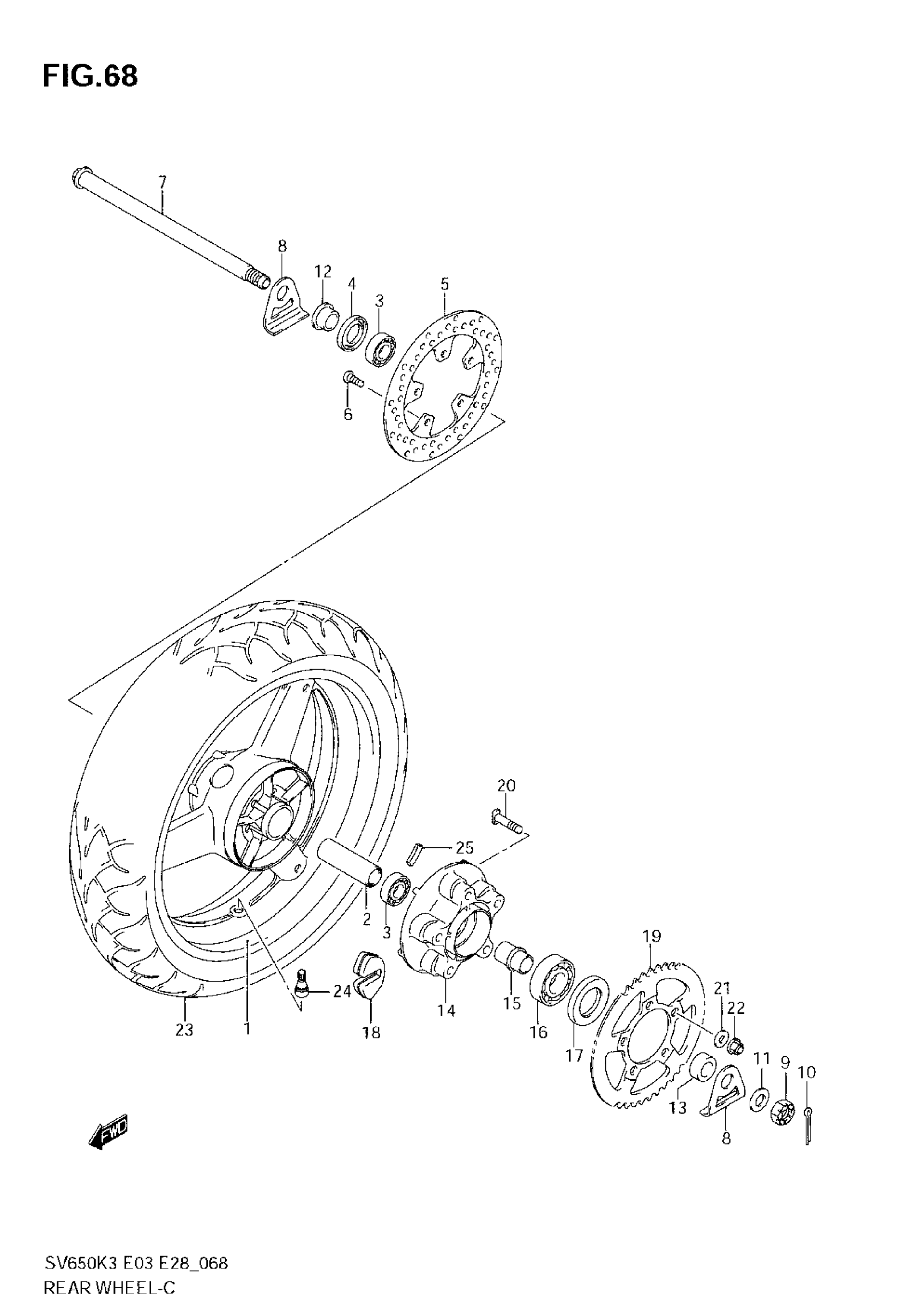

Suzuki SV650 (2007) REAR WHEEL (SV650 K3/SK3/K4/SK4/K5/SK5/K6/SK6/K7/SK7) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K3/K4 This part replaces 64111-08F10-Y6G.

64111-08F11-Y6G

Unavailable

1

WHEEL, REAR 17M/CXMT4.50 (BLACK) | MODEL K5/K6/K7

64111-08F11-019

Unavailable

2

SPACER, HUB BEARING

09180-20062

$19.13

3

BEARING (20X47X14)

09262-20042

$23.28

4

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$12.49

5

DISC, REAR BRAKE

69211-40F10

$318.10

6

BOLT (8X33)

09106-08148

$4.80

7

AXLE, REAR

64711-17G10

$141.12

8

WASHER

61445-17G00

$8.60

9

NUT

08314-40187

$5.64

10

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

11

WASHER

09160-18030

$2.56

12

SPACER,RR AXLE,R

64741-22D00

$23.13

13

SPACER, AXLE LH

64751-26E00

$24.55

14

DRUM, REAR SPROCKET

64611-19F00

Unavailable

15

RETAINER,RR HUB BEARING

64733-27A00

$26.93

16

BEARING (25X62X17)

09262-25073

$25.92

17

SEAL,OIL (35X62X8)

09285-35001

$10.19

18

ABSORBER,RR HUB SHOCK

64651-27A01

$9.78

19

SPROCKET, REAR (NT:45) | SV650K3/K4/K5/K6/K7

64511-32C00

$93.37

19

SPROCKET, REAR (NT:44) | SV650SK3/SK4/SK5/SK6/SK7

64511-33C01

$84.03

20

BOLT

09119-10043

$4.26

21

WASHER (10.5X22X2.3) This part replaces 09160-10506.

09160-10039

$2.26

22

NUT

08319-31107

$2.73

23

TIRE, REAR, 160/60ZR17M/C (69W) (DUNLOP) | DT220 ST L

65110-17G00

$406.73

24

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

25

BALANCER, WHEEL NO.1 | MODEL K3/K4

55411-00A00

$1.49

25

BALANCER, WHEEL NO.2 | MODEL K3/K4 This part replaces 55412-00A01.

55412-17G00

$7.05

25

BALANCER, WHEEL NO.1 | MODEL K5/K6/K7

55411-17G00

$7.63

25

BALANCER, WHEEL NO.2 | MODEL K5/K6/K7

55412-17G00

$7.05

25

BALANCER, WHEEL NO.3 | MODEL K5/K6/K7

55413-17G00

Unavailable
