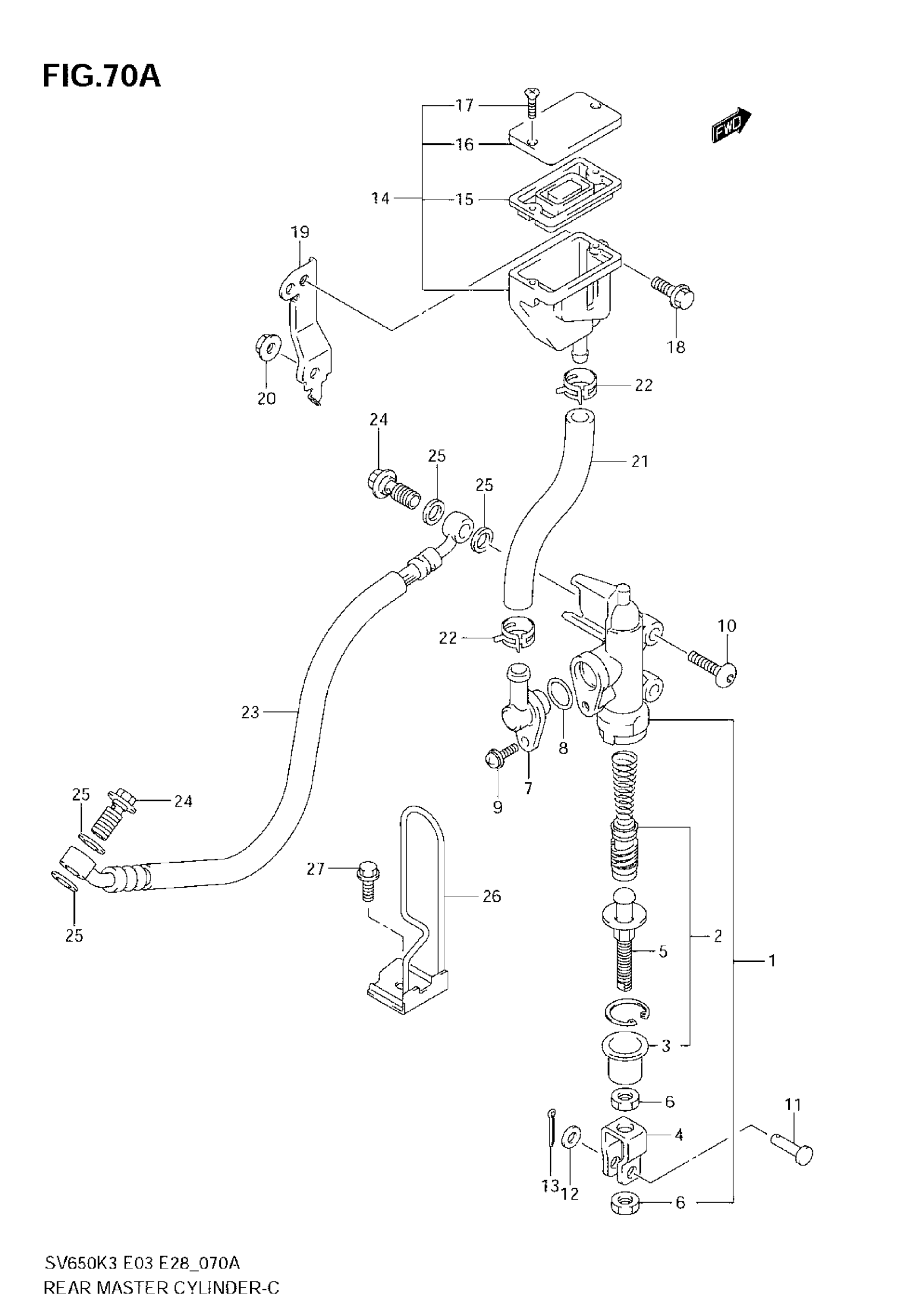

Suzuki SV650 (2007) REAR MASTER CYLINDER (SV650SK3) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-16G00

$234.91

2

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$26.60

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-27A30

$13.81

5

ROD, PUSH

69670-48B00

$26.97

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-05A00

$5.56

8

O RING

69686-34200

$2.93

9

SCREW

02112-7412A

$2.12

10

BOLT (6X20)

09139-06028

$3.70

11

PIN

09200-06068

$4.11

12

WASHER

08322-0106A

$1.84

13

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

14

TANK ASSY,RR RESERVOIR | Includes Item(s) 15 - 17

69740-01D02

$70.49

15

DIAPHRAGM

59667-04700

$9.78

16

CAP

59669-05D00

$16.76

17

SCREW

69689-04A00

$1.78

18

BOLT, TANK

09103-06222

$2.26

19

BRACKET, RR RESERVOIR TANK

69750-16G00

Unavailable

20

NUT, BRACKET

09159-10111

Unavailable

21

HOSE, RESERVOIR TANK

69731-16G00

Unavailable

22

CLIP

09401-13417

$2.26

23

HOSE,RR BRAKE This part replaces 69480-16G00.

69480-16G01

Unavailable

24

UNION This part replaces 09360-10042.

09360-10062

$6.43

25

WASHER (10X15X1.5)

09161-10009

$1.84

26

GUIDE, RR BRAKE HOSE NO.1

69260-16G00

Unavailable

27

BOLT This part replaces 01547-06163.

01547-0616B

$2.45
