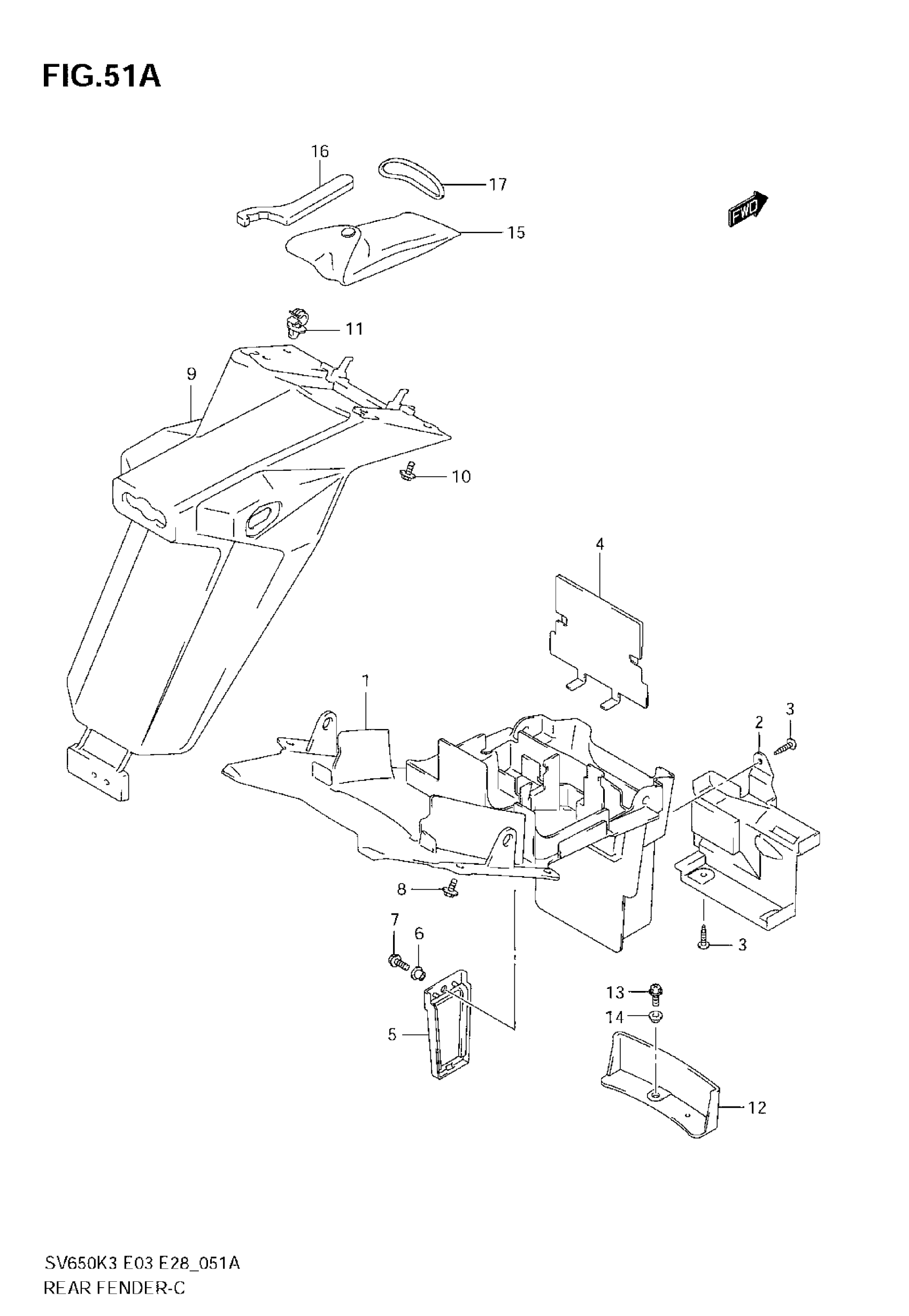

Suzuki SV650 (2007) REAR FENDER (MODEL K4/K5/K6/K7) Diagram

#

Description
Price

1

FENDER, REAR, FRONT (BLACK) | MODEL K4/K5/K6

63110-16GA0-291

Unavailable

1

FENDER, REAR, FRONT (BLACK) | MODEL K7

63110-16GA0-5PK

Unavailable

2

COVER, REAR FENDER FRONT

63261-16GA0

Unavailable

3

SCREW This part replaces 03541-05123.

03541-0512A

$1.49

4

COVER, REAR FENDER UPPER

63251-16GA0

Unavailable

5

LID, REAR FENDER FRONT

63190-16GA0

$39.48

6

GROMMET

09409-08329

$2.40

7

PLUNGER

09409-08330

$2.38

8

BOLT,6X14 | MODEL K4/K5/K6 This part replaces 09116-06098.

09116-06098-XC0

$2.47

8

BOLT | MODEL K7

09116-06210

$2.47

9

FENDER, REAR (BLACK) | MODEL K4/K5/K6 This part replaces 63112-16GB1-291.

63112-16GB1-5PK

$90.22

9

FENDER, REAR (BLACK) | MODEL K7

63112-16GB1-5PK

$90.22

10

BOLT,6X14 | MODEL K4/K5/K6 This part replaces 09116-06098.

09116-06098-XC0

$2.47

10

BOLT | MODEL K7

09116-06210

$2.47

11

CLIP

09403-07325

$2.92

12

MUDGUARD, LOWER

63421-16GA0

Unavailable

13

SCREW This part replaces 02162-06163.

02162-0616B

$2.03

14

WASHER

09169-06071

$2.50

15

TOOL ASSY

09800-21035

Unavailable

16

CLAMP, WRENCH

09822-00004

$14.43

17

O RING(D:3.5,ID This part replaces 09280-61002.

09280-61004

$2.60
