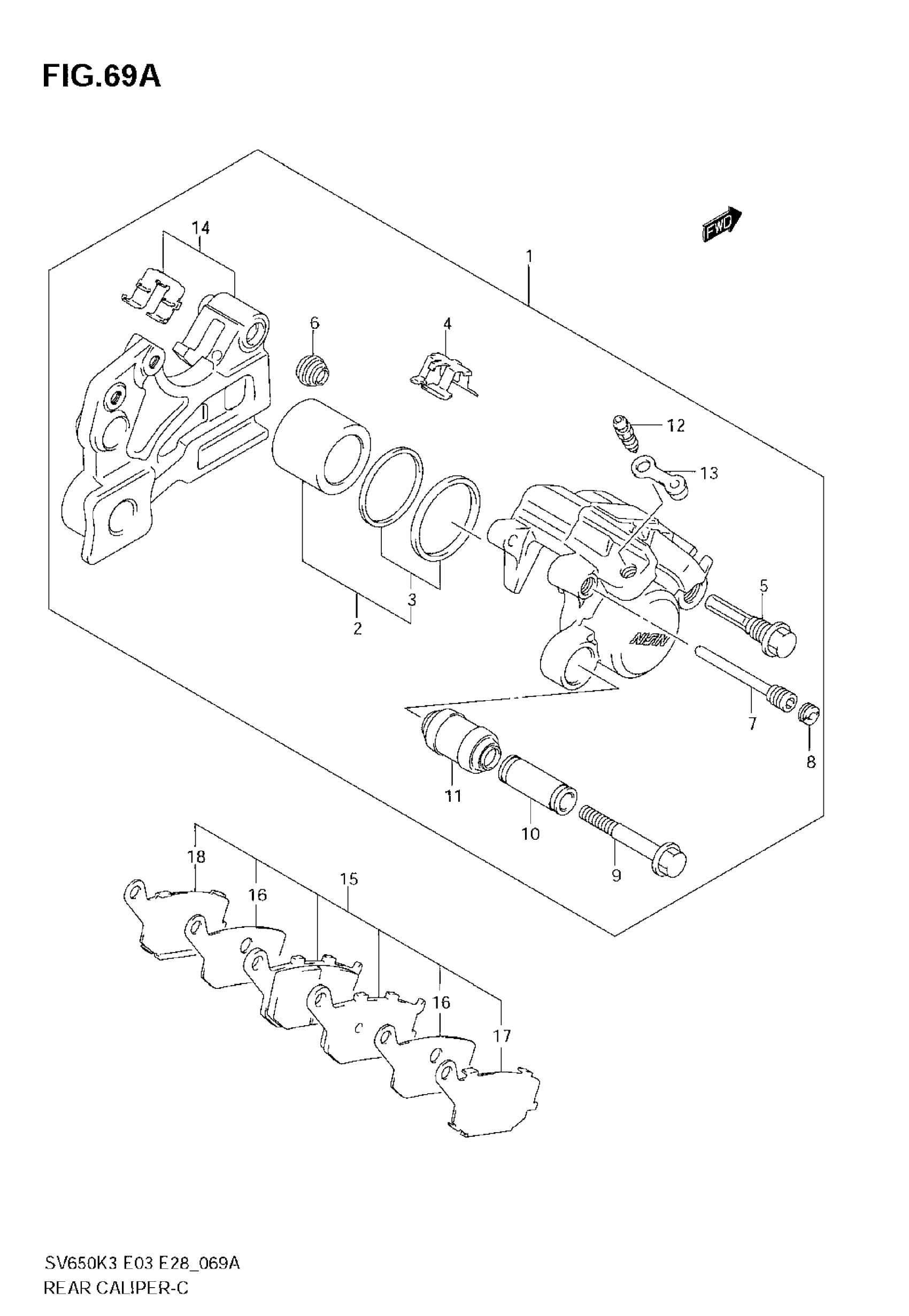

Suzuki SV650 (2007) REAR CALIPER (SV650AK7/SAK7) Diagram

#

Description
Price

1

CALIPER ASSY,RR | Includes Item(s) 2 - 14 This part replaces 69100-17G20-999.

69100-17G21-999

$320.90

2

PISTON SET

69100-04810

$47.22

3

..SEAL SET,PISTON

69100-04820

$8.77

4

.SPRING,PAD

69115-06G00

$13.50

5

BOLT

69105-04F00

$14.08

6

BOOT

59303-14500

$5.52

7

PIN, HANGER

69141-40F00

$29.48

8

PLUG

59146-21E10

$6.15

9

BOLT

69182-04F00

$9.07

10

SLEEVE

69185-04F00

$18.50

11

.BOOT,SLEEVE

69186-04F00

$13.22

12

BLEEDER

59121-01A00

$8.73

13

CAP

59122-01A00

$4.34

14

BRACKET

69150-17G20

$151.08

15

PAD & RETAINER SET | Includes Item(s) 16 - 18 This part replaces 69100-16851.

69100-16852

$63.44

16

INSULATOR

69132-06G00

$20.80

17

.RETAINER

69133-16G00

$16.78

18

.RETAINER

69134-16G00

$16.48
