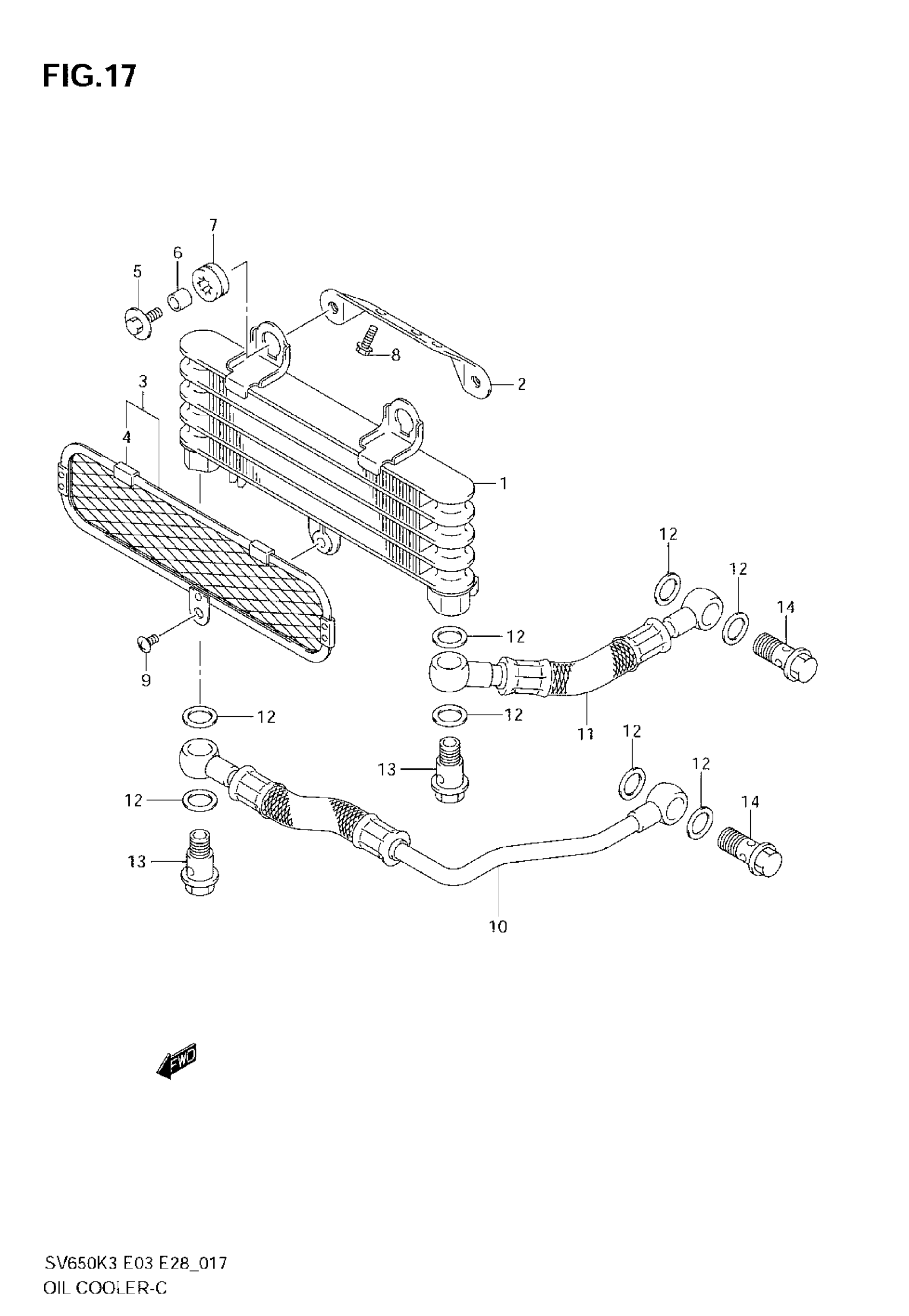

Suzuki SV650 (2007) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY, OIL | MODEL K3

16600-17G00

Unavailable

1

COOLER ASSY, OIL | MODEL K4/K5/K6/K7

16600-27G00

Unavailable

2

BRACKET, OIL COOLER | MODEL K3

16620-17G00

Unavailable

2

BRACKET, OIL COOLER | MODEL K4/K5/K6/K7

16620-27G00

$9.90

3

GUARD COMP, OIL COOLER | MODEL K3

16650-17G00

Unavailable

3

GUARD,OIL COOLE | MODEL K4/K5/K6/K7; Includes Item(s) 4 This part replaces 16650-27G01.

16650-27G02

$30.92

4

.PROTECTOR, CTR This part replaces 17765-09F00.

17765-09F01

$2.92

5

BOLT

09116-06167

$2.19

6

SPACER

09180-06310

$1.91

7

CUSHION

09320-09009

$4.64

8

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

9

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

10

HOSE,OIL COOLER This part replaces 16460-17G00.

16460-17G01

$167.60

11

HOSE, OIL COOLER LH

16470-17G00

$124.28

12

GASKET, OIL COOLER HOSE | MODEL K3

09168-14011

$1.85

12

.GASKET (14X20X1.5) | MODEL K4/K5/K6/K7

09168-14015

$2.03

13

BOLT

09360-12012

$11.57

14

BOLT

09360-14012

$10.86
