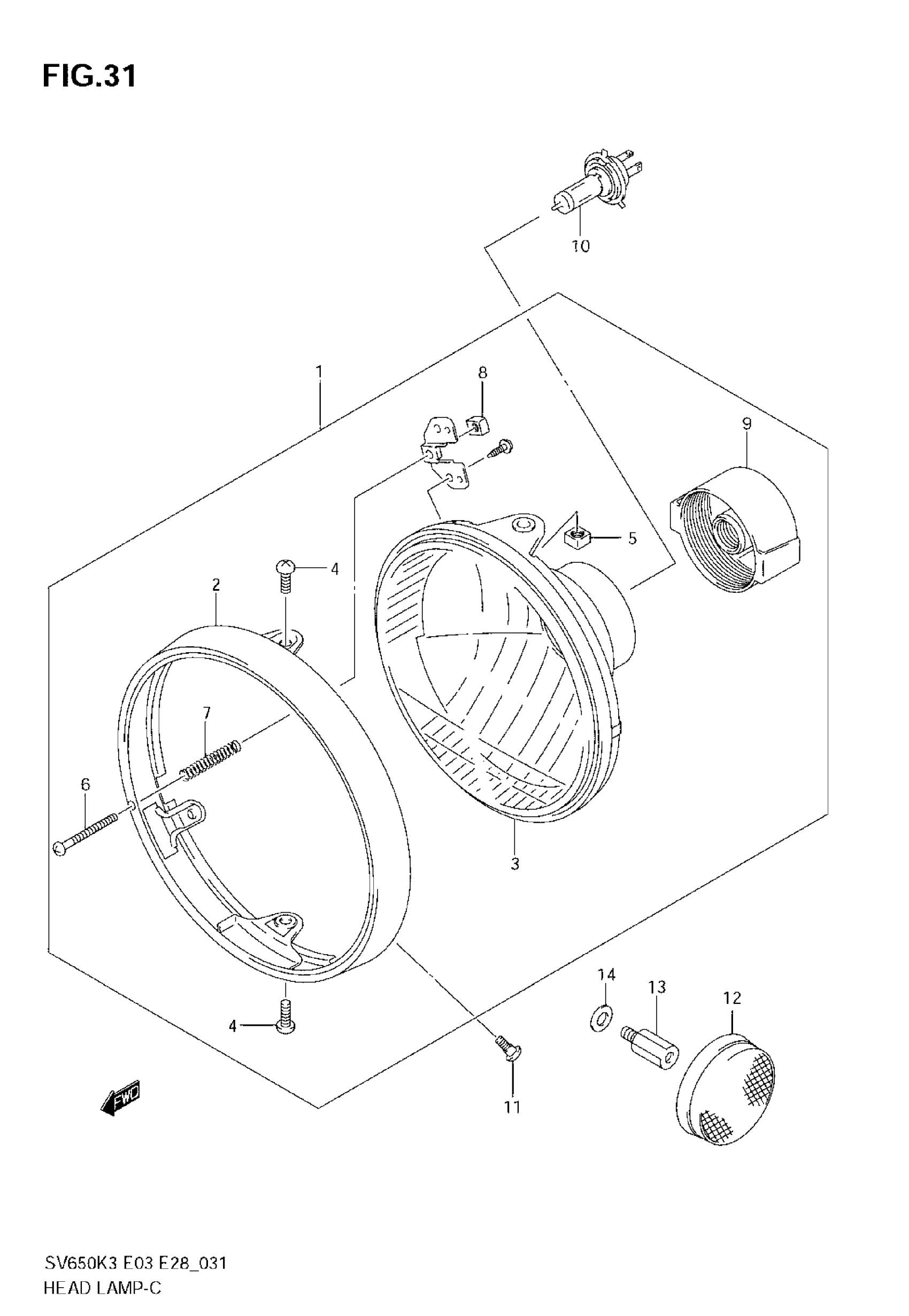

Suzuki SV650 (2007) HEADLAMP (SV650K3/K4/K5/K6/K7/AK7) Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 9 This part replaces 35100-19F70-999.

35100-19F01-999

$222.22

2

RIM

35111-19F00

$102.22

3

LAMP UNIT

35121-19F00

$153.02

4

.SCREW (5X16)

35181-19F00

$3.25

5

NUT

35135-45900

$3.25

6

SCREW, ADJUSTING

35151-19F00

$4.52

7

SPRING

35154-49200

$5.50

8

.NUT

35152-45600

$3.47

9

.COVER,SOCKET

35174-19F00

$30.22

10

BULB (12V60/55W,H4)

09471-12060

$25.15

11

SCREW

09139-05038

$2.06

12

REFLEX REFLECTOR ASSY, FR SIDE

35950-14A00

$16.94

13

BOLT (5X10)

09119-05023

$12.35

14

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.84
