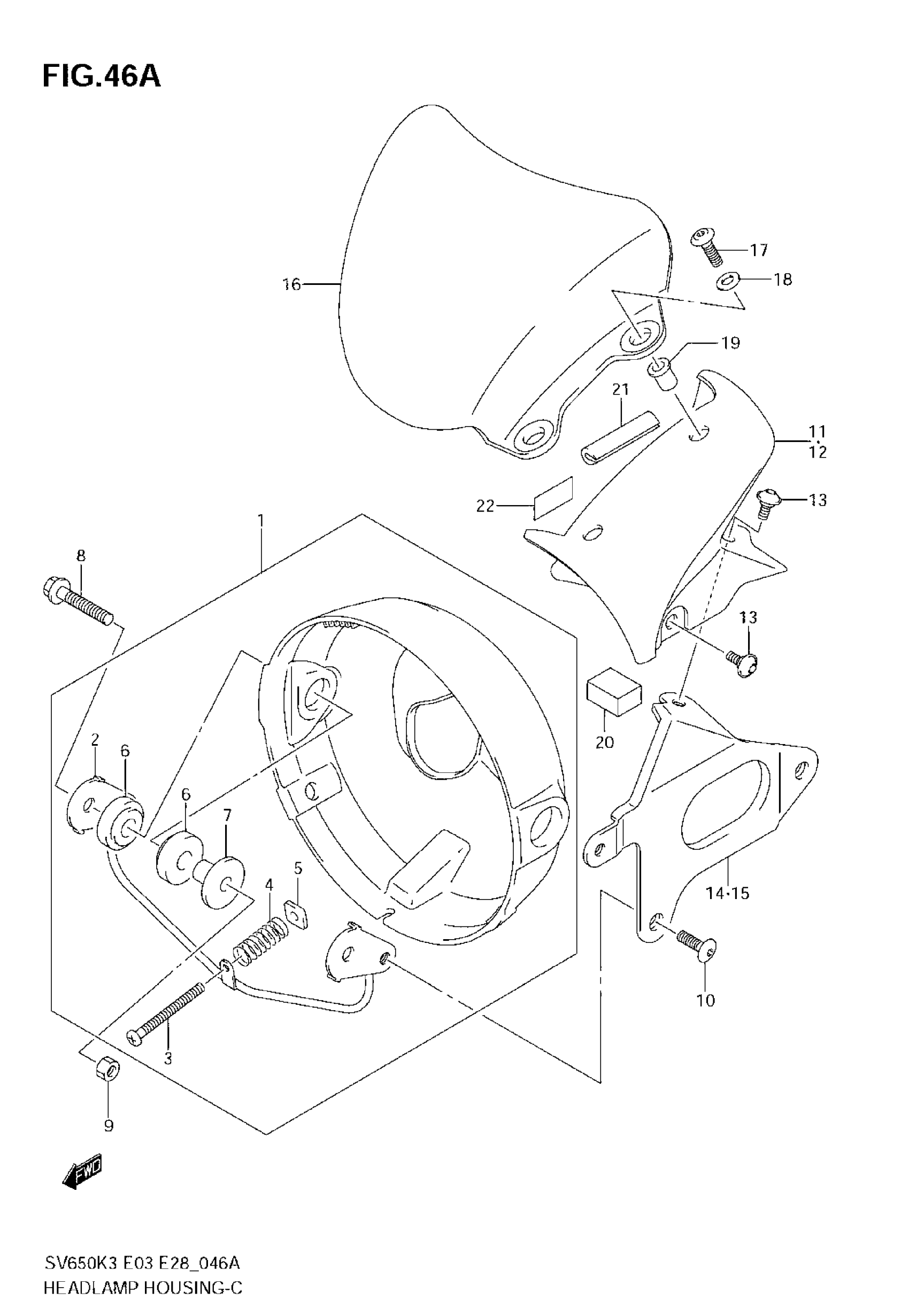

Suzuki SV650 (2007) HEADLAMP HOUSING (SV650K5/K6) Diagram

#

Description
Price

1

HOUSING ASSY,HE | Includes Item(s) 2 - 7 This part replaces 51800-16G10.

51800-16G11

$170.62

2

PLATE

51850-16G10

Unavailable

3

SCREW, ADJUSTER

09125-05128

$2.73

4

SPRING, ADJUSTER

51837-25D00

$5.10

5

NUT, ADJUSTER

51825-25D00

$4.10

6

CUSHION This part replaces 09320-12065.

09320-12101

$2.98

7

SPACER

09180-08217

$3.37

8

BOLT

09103-08391

$2.50

9

NUT This part replaces 08310-00083.

08310-0008A

$1.84

10

SCREW, BRACE

09139-06030

$3.70

11

COVER,HEADLAMP | MODEL K5 This part replaces 51814-16G00-YC2.

51814-16G00-13L

$57.08

11

COVER,HEADLAMP | MODEL K5 This part replaces 51814-16G00-YEC.

51814-16G00-13L

$57.08

11

COVER, HEADLAMP RH (BLACK) | MODEL K5

51814-16G00-YAY

Unavailable

11

COVER, HEADLAMP RH (RED) | MODEL K5

51814-16G00-YU7

Unavailable

11

COVER, HEADLAMP RH (SILVER) | MODEL K6

51814-16G00-YDV

$75.42

11

COVER, HEADLAMP RH (GRAY) | MODEL K6

51814-16G00-YHF

Unavailable

11

COVER,HEADLAMP | MODEL K6 This part replaces 51814-16G00-YHH.

51814-16G00-13L

$57.08

11

COVER,HEADLAMP | MODEL K6 This part replaces 51814-16G00-YHJ.

51814-16G00-13L

$57.08

12

CVR,HDLMP HSNG, | MODEL K5 This part replaces 51815-16G00-YC2.

51815-16G00-13L

$29.07

12

CVR,HDLMP HSNG, | MODEL K5 This part replaces 51815-16G00-YEC.

51815-16G00-13L

$29.07

12

COVER, HEADLAMP LH (BLACK) | MODEL K5

51815-16G00-YAY

Unavailable

12

COVER, HEADLAMP LH (RED) | MODEL K5

51815-16G00-YU7

Unavailable

12

COVER, HEADLAMP LH (SILVER) | MDOEL K6

51815-16G00-YDV

Unavailable

12

COVER, HEADLAMP LH (GRAY) | MDOEL K6

51815-16G00-YHF

Unavailable

12

CVR,HDLMP HSNG, | MDOEL K6 This part replaces 51815-16G00-YHH.

51815-16G00-13L

$29.07

12

CVR,HDLMP HSNG, | MDOEL K6 This part replaces 51815-16G00-YHJ.

51815-16G00-13L

$29.07

13

SCREW

09139-05064

$2.57

14

PLATE, COVER RH

51850-16GA0

$29.37

15

PLATE, COVER LH

51860-16GA0

$28.83

16

COVER, METER

51816-16G00

$143.78

17

SCREW, COVER

09139-05032

$1.89

18

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.84

19

NUT

09159-05019

$7.14

20

CUSHION

92146-14G10

$5.67

21

MOLDING

94631-35F00

$7.40

22

TAPE

94632-22D00

Unavailable
