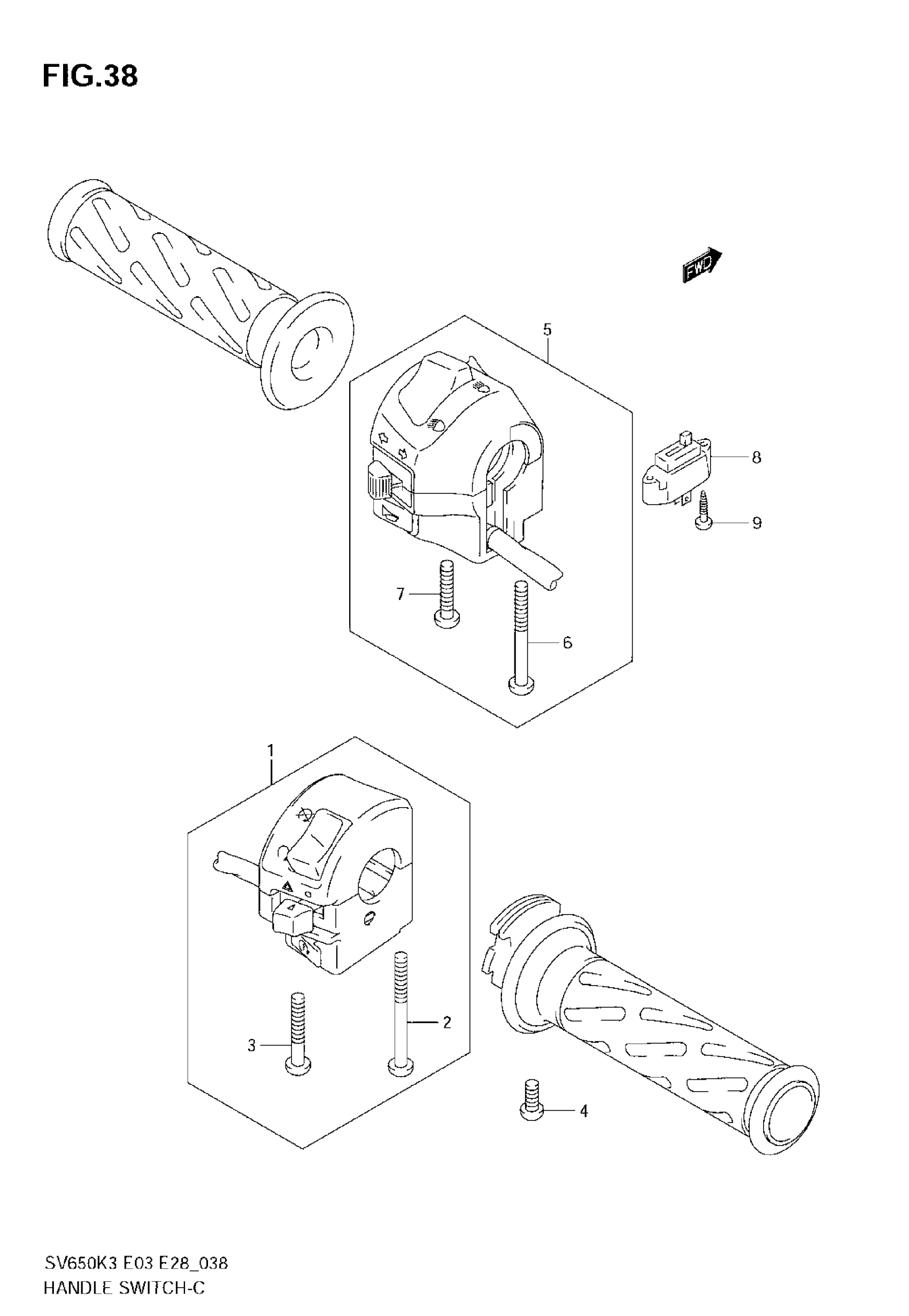

Suzuki SV650 (2007) HANDLE SWITCH (SV650K3/K4/K5/K6/K7/AK7) Diagram

#

Description

Price

1

SWITCH ASSY, HANDLE RH | MODEL K3/K4

37200-17G50

Unavailable

1

SWITCH ASSY, HANDLE RH | MODEL K5/K6/K7; Includes Item(s) 2 - 3

37200-17G10

$125.18

2

SCREW This part replaces 02112-05505.

02112-0550B

$2.39

3

.SCREW This part replaces 02112-05305.

02112-0530B

$1.49

4

SCREW, THROTTLE

02112-0510A

$1.49

5

SWITCH ASSY,HAN | Includes Item(s) 6 - 7 This part replaces 37400-17G10.

37400-17G11

$167.27

6

.SCREW This part replaces 02112-05455.

02112-0545B

$2.26

7

SCREW (5X25)

09125-05066

$1.65

8

SWITCH ASSY, CLUTCH

37560-31F00

$18.50

9

SCREW (3X14)

09132-03017

$2.11
