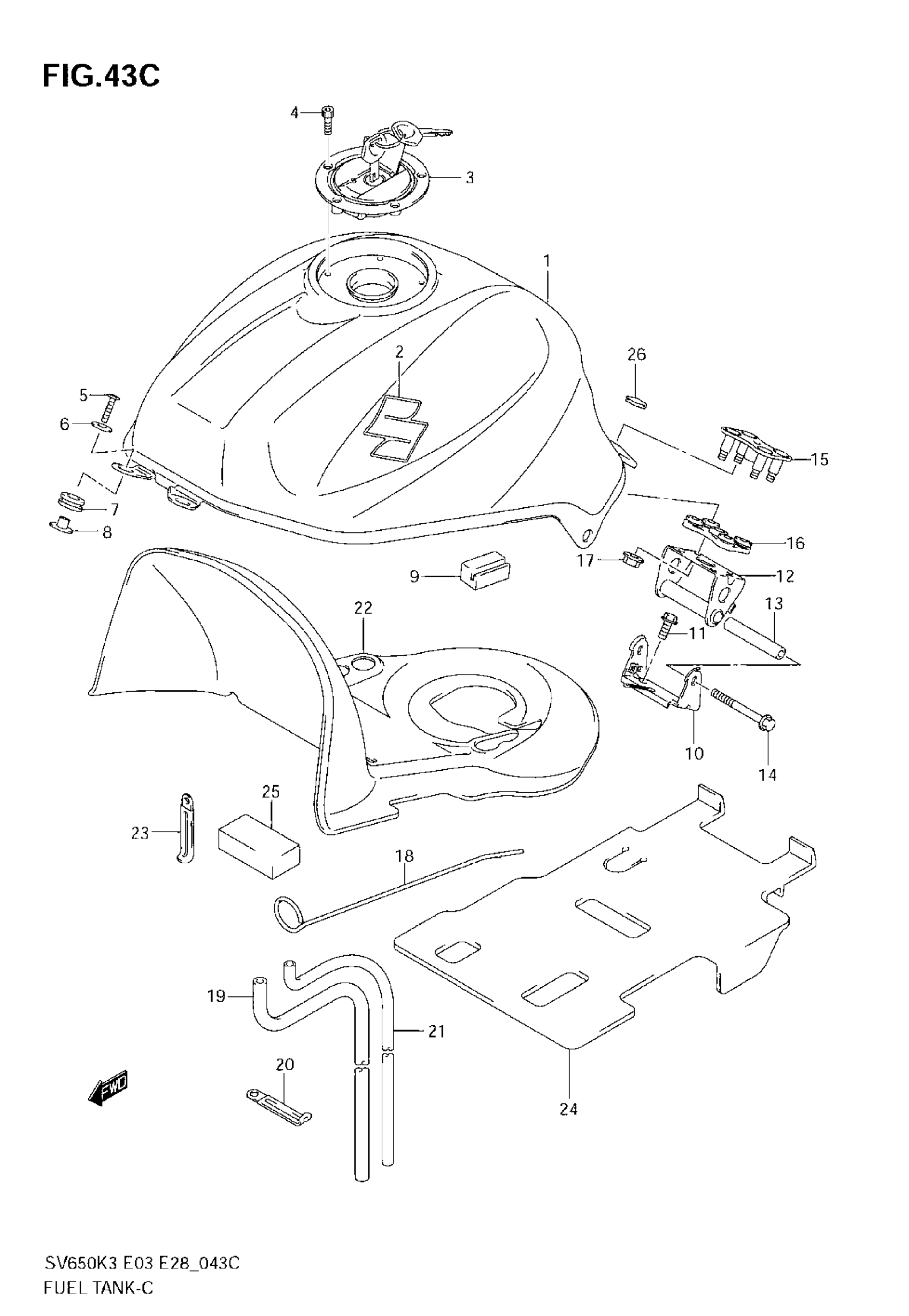

Find the part on the Fuel Tank diagram for your 2007 Suzuki SV650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki SV650 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY,FUEL( | E3,E28 This part replaces 44100-16G60-YAY.

44100-16G61-YAY

1
Out of stock

1

TANK ASSY, FUEL (GRAY) | E3,E28

44100-16G60-YHG

1
Out of stock

1

1

$1,182.33

In stock

1

TANK ASSY,FUEL( | E3,E28 This part replaces 44100-16G60-YKY.

44100-16G61-YKY

1
Out of stock

1

1

$1,609.65

In stock

1

TANK ASSY, FUEL (GRAY) | E33

44100-16G81-YHG

1
Out of stock

1

TANK ASSY,FUEL( | E33 This part replaces 44100-16G81-YHL.

44100-16G82-YHL

1
Out of stock

1

1

$1,039.88

In stock

2

EMBLEM

68111-18G20

2

$32.20

In stock

4

BOLT

09106-05017

3

$2.92

In stock

5

SCREW, FRONT

09139-06029

2
Out of stock

6

WASHER

09160-06054

2

$1.73

In stock

7

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

2
Out of stock

8

SPACER

44512-16G00

2
Out of stock

9

CUSHION, SIDE

44541-16G00

2

$7.92

In stock

10

1

$26.50

In stock

11

2

$2.42

In stock

12

BRACKET, CENTER

44530-16G00

1

$45.70

In stock

13

SPACER, JOINT

44561-35F00

1
Out of stock

14

BOLT, JOINT

09103-06060

1
Out of stock

15

BRACKET,FUEL TANK RR UP

44570-16G00

1
Out of stock

16

CUSHION

44542-16G00

1

$15.55

In stock

17

NUT This part replaces 08319-31063.

08319-3106A

4
Out of stock

18

STAY,FUEL TANK

44574-16G00

1

$30.17

In stock

19

1

$14.15

In stock

20

1

$1.89

In stock

21

1

$10.89

In stock

22

SHIELD, TANK HEAT

44191-16G00

1
Out of stock

23

1

$1.89

In stock

24

SHEET, HEAT RUBBER | WITHOUT ABS

44271-16G10

1
Out of stock

24

SHEET, HEAT RUBBER | WITH ABS

44271-17G00

—
Out of stock

25

CUSHION, TANK

44545-16G00

1

$8.13

In stock

26

2

$6.02

In stock
