2007 Suzuki SV650 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2007 Suzuki SV650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

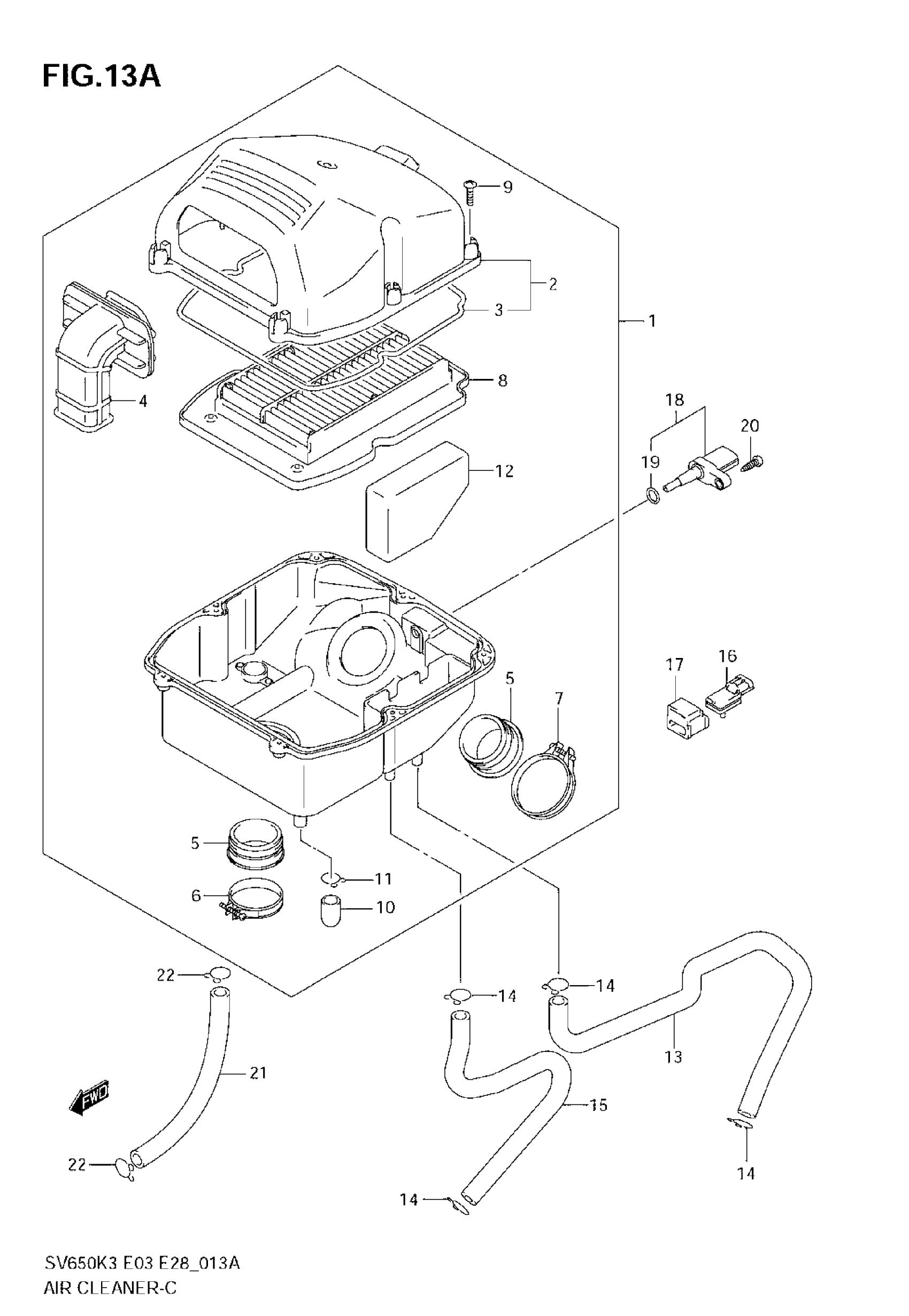

2007 Suzuki SV650 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 12

13700-17G10

1
Out of stock

2

CAP,AIR CLEANER This part replaces 13740-16G00.

13740-16G01

1
Out of stock

3

GASKET

13746-16G00

1
Out of stock

4

TUBE,INLET This part replaces 13891-17G00.

13891-17G01

1
Out of stock

5

TUBE,OUTLET This part replaces 13881-17G00.

13881-17G01

2
Out of stock

6

CLAMP, OUTLET TUBE FRONT

13826-17G00

1
Out of stock

7

CLAMP, OUTLET TUBE REAR

13826-17G00

1
Out of stock

8

FILTER, AIR CLEANER

13780-16G00

1
Out of stock

9

SCREW

03541-0520A

7
Out of stock

10

.PLUG

13859-41B10

1
Out of stock

11

CLIP

09401-14301

1
Out of stock

12

FILTER, BREATHER

13788-17G00

1
Out of stock

13

TUBE, BREATHER CRANKCASE

13851-17G00

1
Out of stock

14

CLIP

09401-15101

4
Out of stock

15

TUBE, BREATHER CYLINDER

13851-17G10

1
Out of stock

16

SENSOR, BOOST

18591-41F00

2
Out of stock

17

HOLDER

18595-41F00

2
Out of stock

18

SENSOR AIR TEMP | Includes Item(s) 19

13650-41F10

1
Out of stock

19

O-RING

13655-41F10

1
Out of stock

20

SCREW

03511-0516A

1
Out of stock

21

HOSE, ISC VALVE

13865-17G00

1
Out of stock

22

CLIP

09401-15101

2
Out of stock
