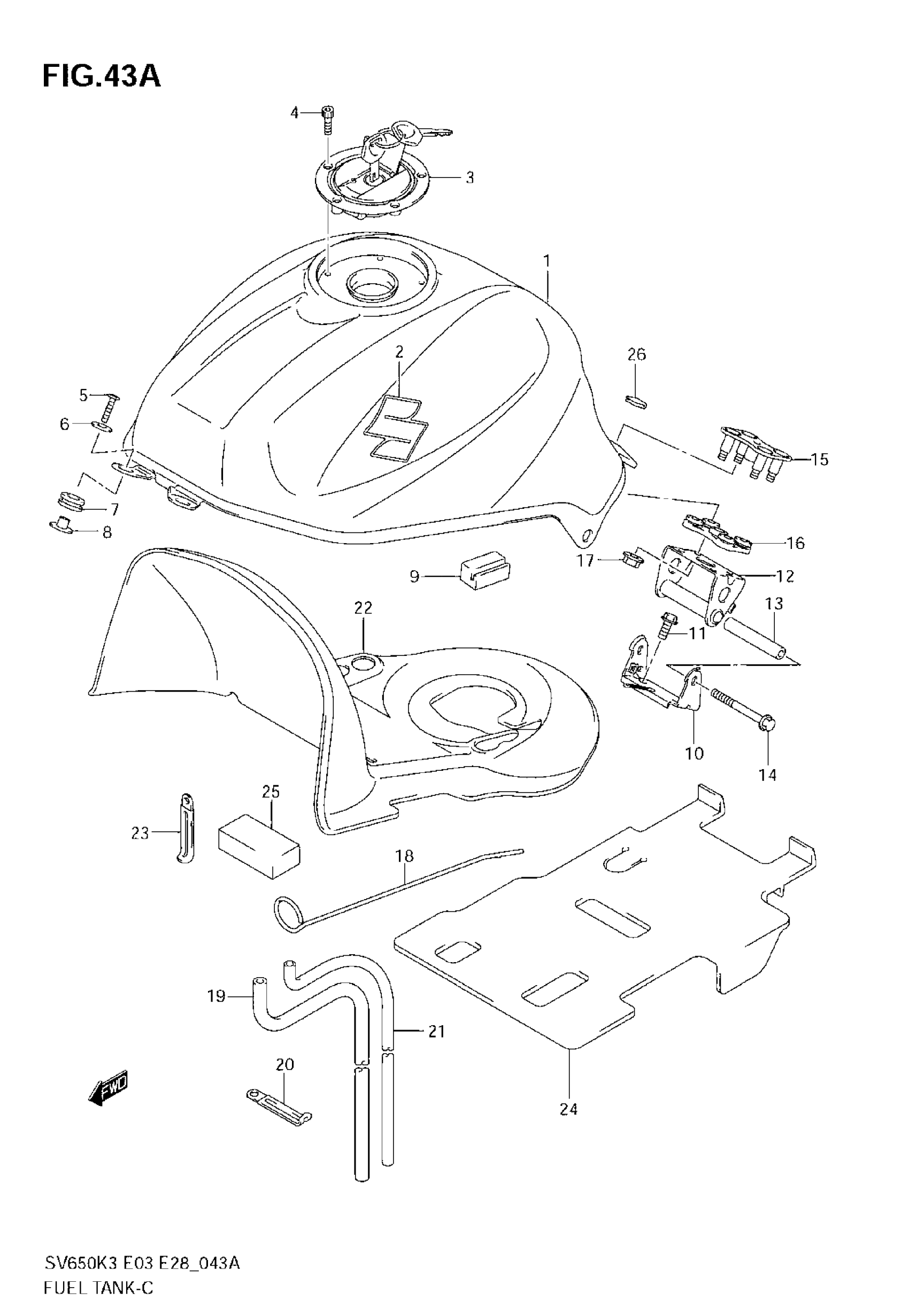

Suzuki SV650 (2007) FUEL TANK (MODEL K4) Diagram

#

Description
Price

1

TANK ASSY,FUEL( | E3,E28 This part replaces 44100-16G30-YC2.

44110-16G03-13L

Unavailable

1

TANK ASSY, FUEL (YELLOW) | E3,E28

44100-16G30-YU9

Unavailable

1

TANK ASSY, FUEL (BLACK) | E3,E28

44100-16G30-YAY

Unavailable

1

TANK ASSY, FUEL (BLUE) | E33

44100-16G50-YC2

Unavailable

1

TANK ASSY,FUEL | E33 This part replaces 44100-16G50-YU9.

44100-16G51-YU9

Unavailable

1

TANK ASSY, FUEL (BLACK) | E33; Includes Item(s) 2 - 2

44100-16G50-YAY

Unavailable

2

EMBLEM,FUEL TAN | FOR YC2 This part replaces 68111-18G00-CS4.

68111-18G01-0AT

$15.38

2

EMBLEM,FUEL TAN | FOR YU9 This part replaces 68111-18G00-ASJ.

68111-18G01-YGP

Unavailable

2

EMBLEM,FUEL TAN | FOR YAY This part replaces 68111-18G00-ACV.

68111-18G01-0AT

$15.38

3

CAP SET,FUEL TA | E3,E28 This part replaces 44200-16850.

44200-16852

$108.21

3

CAP SET,FUEL TA | E33 This part replaces 44200-16860.

44200-16862

$270.23

4

BOLT

09106-05017

$2.80

5

SCREW, FRONT

09139-06029

$4.84

6

WASHER

09160-06054

$1.62

7

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$3.77

8

SPACER

44512-16G00

$6.80

9

CUSHION, SIDE

44541-16G00

$7.27

10

BRACKET COMP,FU This part replaces 44550-16G00.

44550-16G01

$26.50

11

BOLT This part replaces 01550-08203.

01550-0820A

$2.25

12

BRACKET, CENTER

44530-16G00

$45.70

13

SPACER, JOINT

44561-35F00

$13.06

14

BOLT, JOINT

09103-06060

$2.61

15

BRACKET,FUEL TANK RR UP

44570-16G00

Unavailable

16

CUSHION

44542-16G00

$15.55

17

NUT This part replaces 08319-31063.

08319-3106A

$2.01

18

STAY,FUEL TANK

44574-16G00

$30.17

19

HOSE,WATER DRAI This part replaces 44423-17G00.

44423-17G01

$14.15

20

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

21

HOSE,FUEL TANK This part replaces 44424-16G00.

44424-18G01

$9.99

22

SHIELD, TANK HEAT

44191-16G00

Unavailable

23

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

24

SHEET, HEAT RUBBER

44271-16G10

Unavailable

25

CUSHION, TANK

44545-16G00

$8.13

26

MOLDING This part replaces 68241-16G00.

68241-16G01

$6.02
