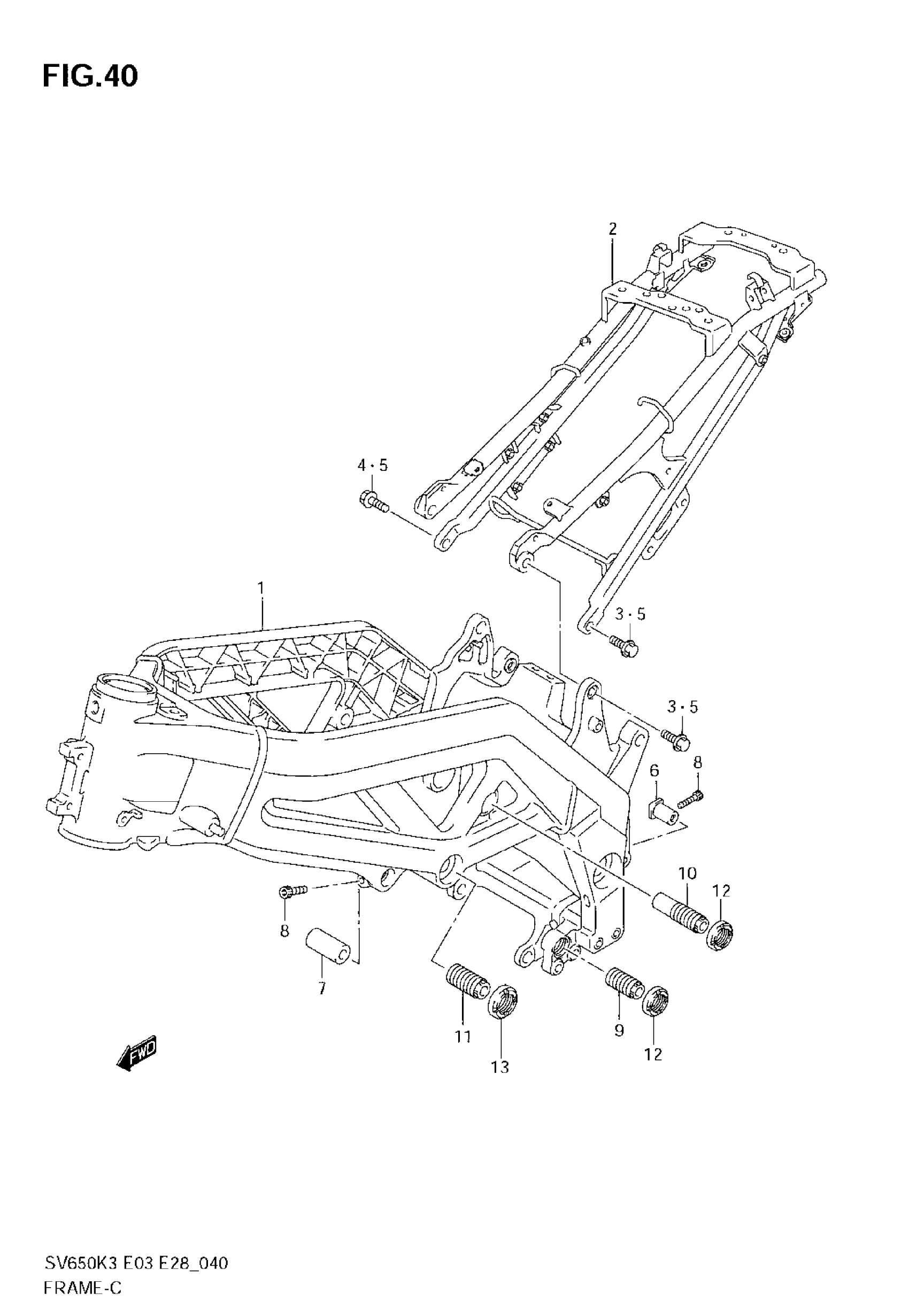

Suzuki SV650 (2007) FRAME (MODEL K3/K4/K5/K6) Diagram

#

Description
Price

1

FRAME (SILVER) | MODEL K3

41100-17G00-YBM

Unavailable

1

FRAME (SILVER) | MODEL K4

41100-17G10-YBM

Unavailable

1

FRAME (BLACK) | MODEL K5/K6

41100-17G10-YAP

Unavailable

2

RAIL, SEAT | MODEL K3

41200-16G00

Unavailable

2

RAIL, SEAT | MODEL K4

41200-16G10

Unavailable

2

RAIL, SEAT (BLACK) | MODEL K5/K6

41200-16G20-YAP

Unavailable

3

BOLT, SEAT RAIL | MODEL K3

09103-10296

$6.44

4

BOLT,SEAT RAIL | MODEL K3 This part replaces 41233-16G00.

41233-16G0V

Unavailable

5

BOLT,SEAT RAIL | MODEL K4 This part replaces 41233-35F00.

41233-35F0V

$10.65

5

BOLT,SEAT RAIL | MODEL K5/K6 This part replaces 41233-18G00.

41233-18G20

$8.65

6

SPACER, CRANKCASE UPPER

41941-19F01

$40.33

7

SPACER, HEAD FRONT

41942-02F00

$28.70

8

BOLT, SPACER This part replaces 09106-08149.

09106-08170

$3.49

9

BOLT, CRANK CASE ADJUST LWR This part replaces 41921-16G00.

41921-16G01

$23.47

10

BOLT, REAR HEAD ADJUST LH

41921-17G00

$35.10

11

BOLT, CRANK CASE ADJUST CTR

41923-16G00

$31.28

12

NUT, REAR HEAD ADJUST

41922-33E00

$22.52

13

NUT,CRANK CASE ADJUST CTR This part replaces 41922-19F00.

41922-19F20

$18.90
