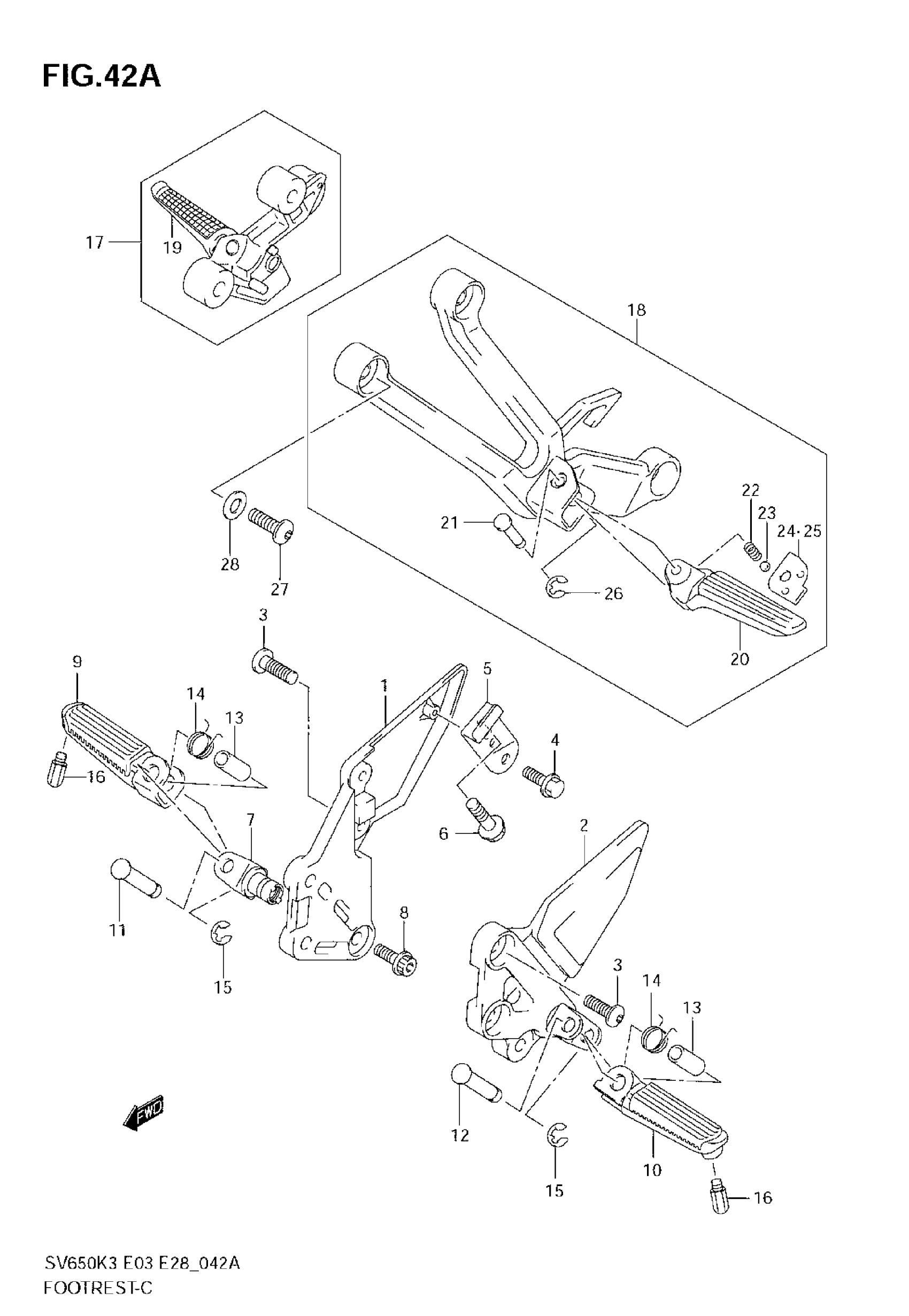

Suzuki SV650 (2007) FOOTREST (MODEL K4/K5/K6/K7) Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH | MODEL K4/K5 This part replaces 43511-16G20.

43511-16G21

$138.38

1

BRACKET, FRONT FOOTREST RH | MODEL K6/K7

43511-16G21

$138.38

2

BRACKET, FRONT FOOTREST LH | MODEL K4 This part replaces 43521-16G20.

43521-16G21

$123.17

2

BRACKET, FRONT FOOTREST LH | MODEL K5/K6/K7

43521-16G21

$123.17

3

BOLT, PANEL (8X18) | MODEL K4 This part replaces 09106-08118.

09106-08161

$3.70

3

BOLT, BRACKET | MODEL K5/K6/K7

09106-08167

$3.35

4

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

5

PLATE, RH | MODEL K4/K5/K6

43571-16G00

Unavailable

5

PLATE, RH | MODEL K7

43571-17G20

$17.70

6

BOLT This part replaces 01550-08203.

01550-0820A

$2.23

7

HOLDER,FOOTREST This part replaces 43530-16G00.

43540-04K00

$31.43

8

BOLT, HOLDER

09106-10064

$4.90

9

BAR, FRONT FOOTREST RH

43510-02F11

$59.98

10

BAR, FRONT FOOTREST LH

43520-02F11

$59.13

11

PIN, RH

09208-08014

$4.32

12

PIN, LH

09208-08016

$3.61

13

SPACER

09180-08149

$5.58

14

SPRING

09448-18022

$3.79

15

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49

16

BOLT, BANK SENSOR

43576-48B02

$7.48

17

FOOTREST ASSY, PILLION RH

43600-17G20

$228.32

18

FOOTREST ASSY, PILLION LH | Includes Item(s) 19 - 26

43700-17G20

$228.32

19

BAR, PILLION RH

43611-35F01

$64.30

20

BAR, PILLION LH

43621-35F01

$61.93

21

PIN

87259-85510

$5.19

22

SPRING

09440-05005

$1.58

23

BALL

06111-07004

$1.49

24

PLATE, RH

43816-33E21

$10.41

25

PLATE, LH

43826-33E22

$10.41

26

E RING This part replaces 08332-11043.

08332-1104A

$1.49

27

BOLT, BRACKET

09106-08150

$3.42

28

WASHER

09164-08020

$2.06
