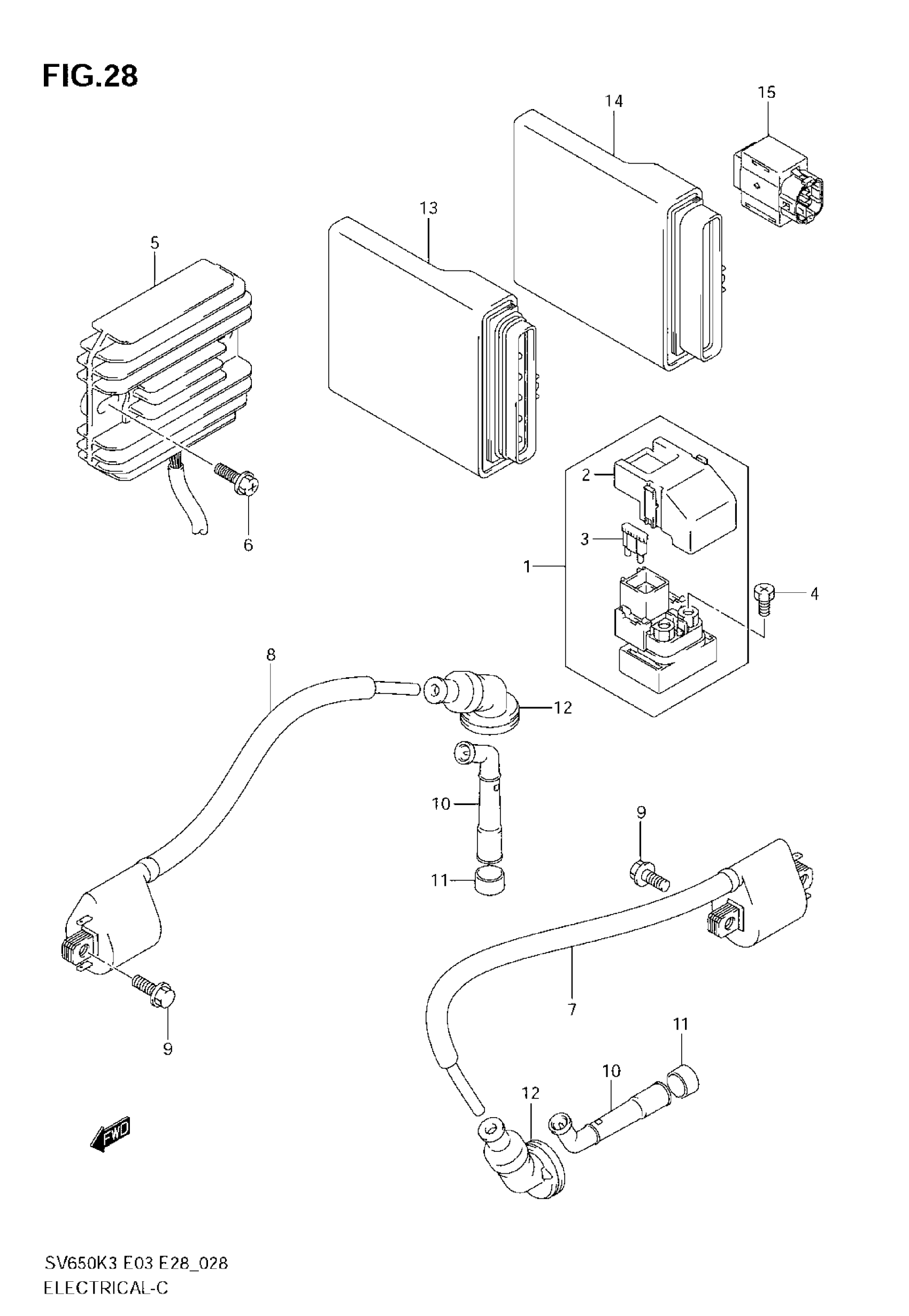

Suzuki SV650 (2007) ELECTRICAL (MODEL K3/K4/K5/K6) Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR | Includes Item(s) 2 - 3 This part replaces 31800-06G00.

31800-06G02

$67.32

2

COVER, RELAY ASSY

31861-47E00

$16.15

3

FUSE (30A)

09481-30101

$2.26

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY This part replaces 32800-16G00.

32800-16G02

$243.97

6

BOLT This part replaces 02162-0620A.

02162-0620C

$1.71

7

COIL ASSY, IGNITION | FOR FRONT This part replaces 33410-17G00.

33410-17G01

$72.92

8

COIL ASSY,IGNIT | FR REAR This part replaces 33420-17G00.

33420-17G01

$92.78

9

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

10

CAP ASSY,SPARK PLUG

33510-17G00

$33.46

11

SEAL, SPARK PLUG CAP

33541-23E01

$6.34

12

SEAL,HIGH TENSION CORD CTR This part replaces 33542-17G00.

33542-17G01

$8.12

13

CONTROL UNIT, FI | MODEL K3/K4 E3/E28/E33 MODEL K5/K6 E3/E28

32920-17G20

Unavailable

13

CONTROL UNIT, FI | MODEL K6 E3/E28

32920-17G40

Unavailable

14

CONTROL UNIT, FI | MODEL K5 E33

32920-17G40

Unavailable

15

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92
