Description

Price

1

CHAIN, CAMSHAFT DRIVE This part replaces 12760-19F00.

12760-19F01

$197.58

2

GUIDE,CAM CHAIN This part replaces 12771-19F00.

12771-19F01

$50.08

3

GUIDE,CAM CHAIN NO.2 This part replaces 12782-19F00.

12782-19F01

$44.38

4

BOLT This part replaces 07130-06123.

07130-0612A

$2.50

5

TENSIONER,CAM CHAIN This part replaces 12811-17G00.

12811-17G01

$73.27

6

BOLT,CAM CHAIN TENSIONER

12812-35C00

$8.73

7

WASHER

08211-06181

$1.80

8

ADJUSTER ASSY, TENSIONER | Includes Item(s) 9 - 10

12830-17G00

$121.77

9

GASKET, TENSIONER ADJUSTER

12837-24F10

$4.78

10

SPRING

12831-35F00

$6.87

11

PLUG, TENSIONER ADJUSTER

12833-17G00

$7.87

12

.GASKET,TENSIONER ADJUSTER

12837-24A10

$3.25

13

BOLT This part replaces 07130-06253.

07130-0625B

$3.04

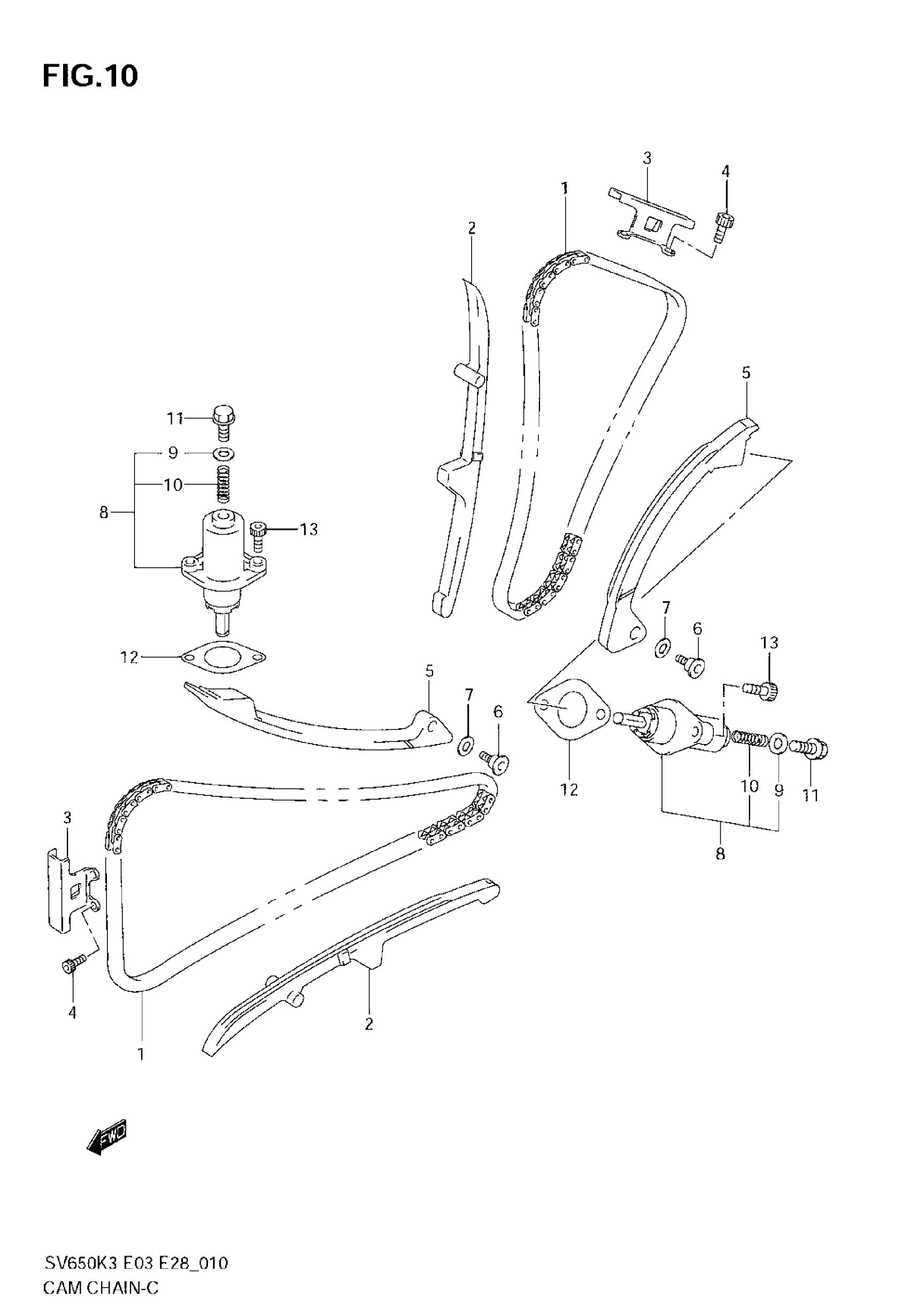

Suzuki SV650 (2007) CAM CHAIN (MODEL K3/K4) Diagram
