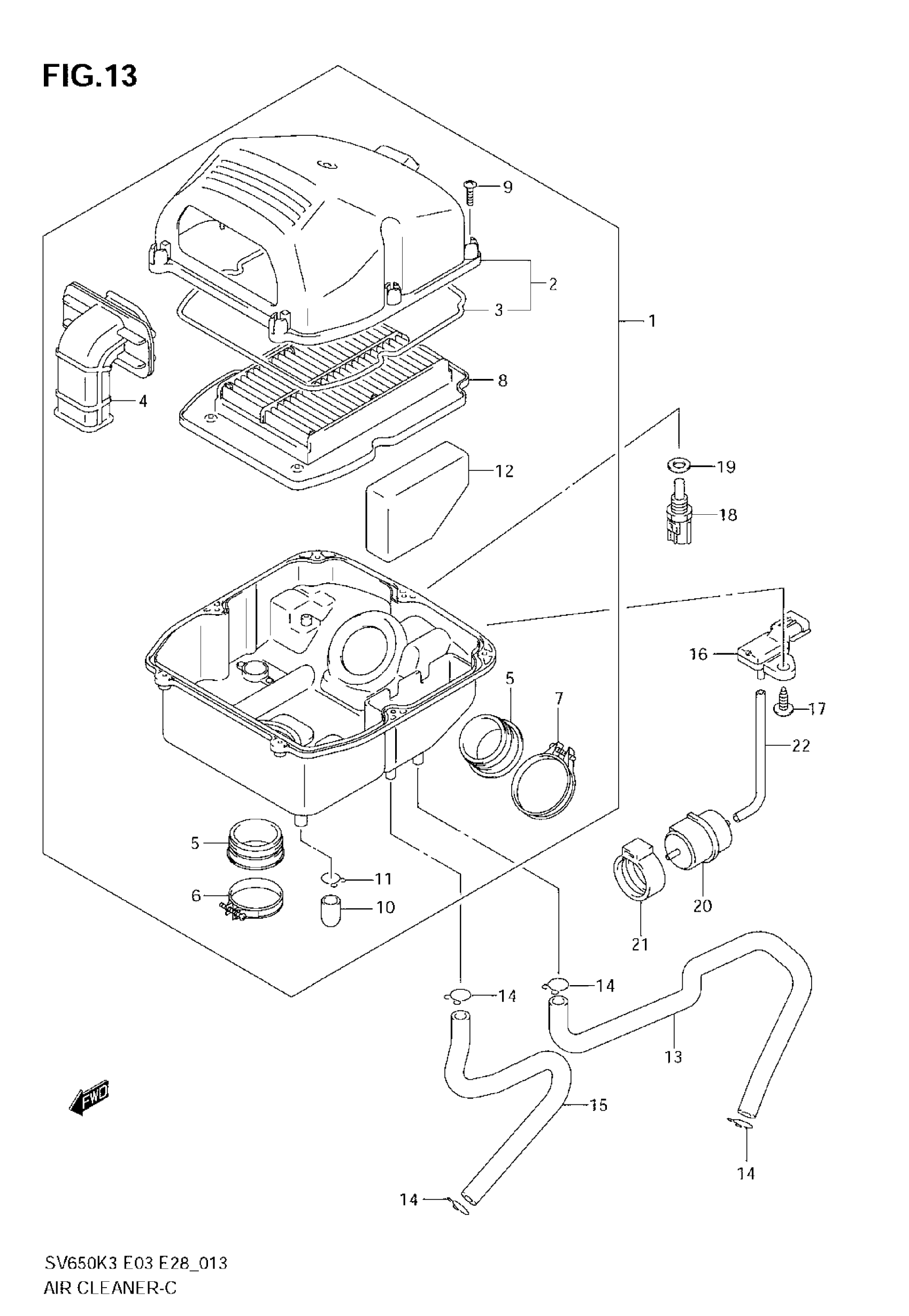

Suzuki SV650 (2007) AIR CLEANER (MODEL K3/K4/K5/K6) Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 12

13700-17G00

Unavailable

2

CAP,AIR CLEANER This part replaces 13740-16G00.

13740-16G01

$43.12

3

GASKET

13746-16G00

$8.13

4

TUBE,INLET This part replaces 13891-17G00.

13891-17G01

$49.22

5

TUBE,OUTLET This part replaces 13881-17G00.

13881-17G01

$10.66

6

CLAMP, CUTLET TUBE FRONT

13826-17G00

$5.64

7

CLAMP, OUTLET TUBE REAR

13826-17G00

$5.64

8

FILTER, AIR CLEANER

13780-16G00

$33.23

9

SCREW This part replaces 03541-05203.

03541-0520A

$1.80

10

.PLUG

13859-41B10

$7.38

11

CLIP

09401-14301

$2.35

12

FILTER, BREATHER

13788-17G00

$9.69

13

TUBE, BREATHER CRANKCASE

13851-17G00

$23.07

14

CLIP

09401-15101

$2.26

15

TUBE, BREATHER CYLINDER

13851-17G10

$18.58

16

SENSOR COMP, BOOST

18590-17G01

$382.13

17

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

18

SENSOR AIR TEMP

13650-57F00

$121.55

19

GASKET

09168-12017

$1.95

20

CHAMBER, VACUUM

13715-06G00

Unavailable

21

BAND, VACUUM CHAMBER

13912-17G00

Unavailable

22

HOSE (3.5X7.5X600) | L:600!160 This part replaces 09355-35755-600.

09355-35007-600

$6.94
