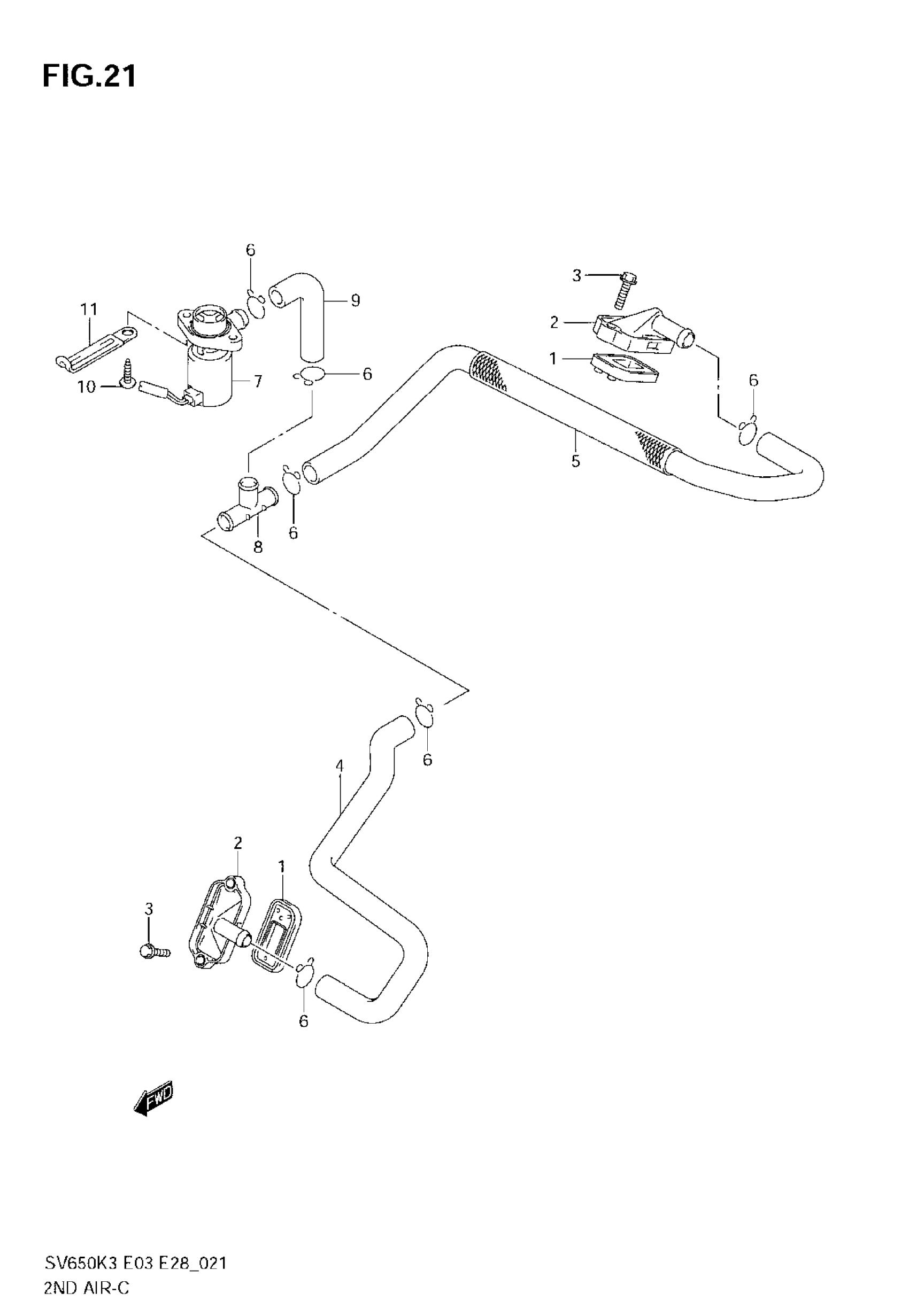

Suzuki SV650 (2007) 2ND AIR (MODEL K3/K4/K5/K6) Diagram

#

Description

Price

1

.VALVE ASSY,2ND AIR REED

18450-06G00

$36.82

2

COVER,2ND AIR

18531-06G01

$13.41

3

BOLT

09103-06201

$2.64

4

HOSE, 2ND AIR VALVE FRONT | MODEL K3/K4

18461-17G00

Unavailable

4

HOSE, 2ND AIR VALVE FRONT | MODEL K5/K6

18461-17G10

$22.52

5

HOSE, 2ND AIR VALVE REAR

18471-17G00

$29.83

6

CLIP

09401-15101

$2.26

7

VALVE ASSY, AIR CUT | MODEL K3/K4 This part replaces 18510-10G10.

18510-10G20

Unavailable

7

VALVE ASSY, AIR CUT | MODEL K5/K6

18510-10G20

Unavailable

8

JOINT

13855-18A03

$5.50

9

HOSE, 2ND AIR CLEANER

18711-06G00

$10.95

10

SCREW This part replaces 03541-05203.

03541-0520A

$1.80

11

CLAMP

09404-06429

$1.83
