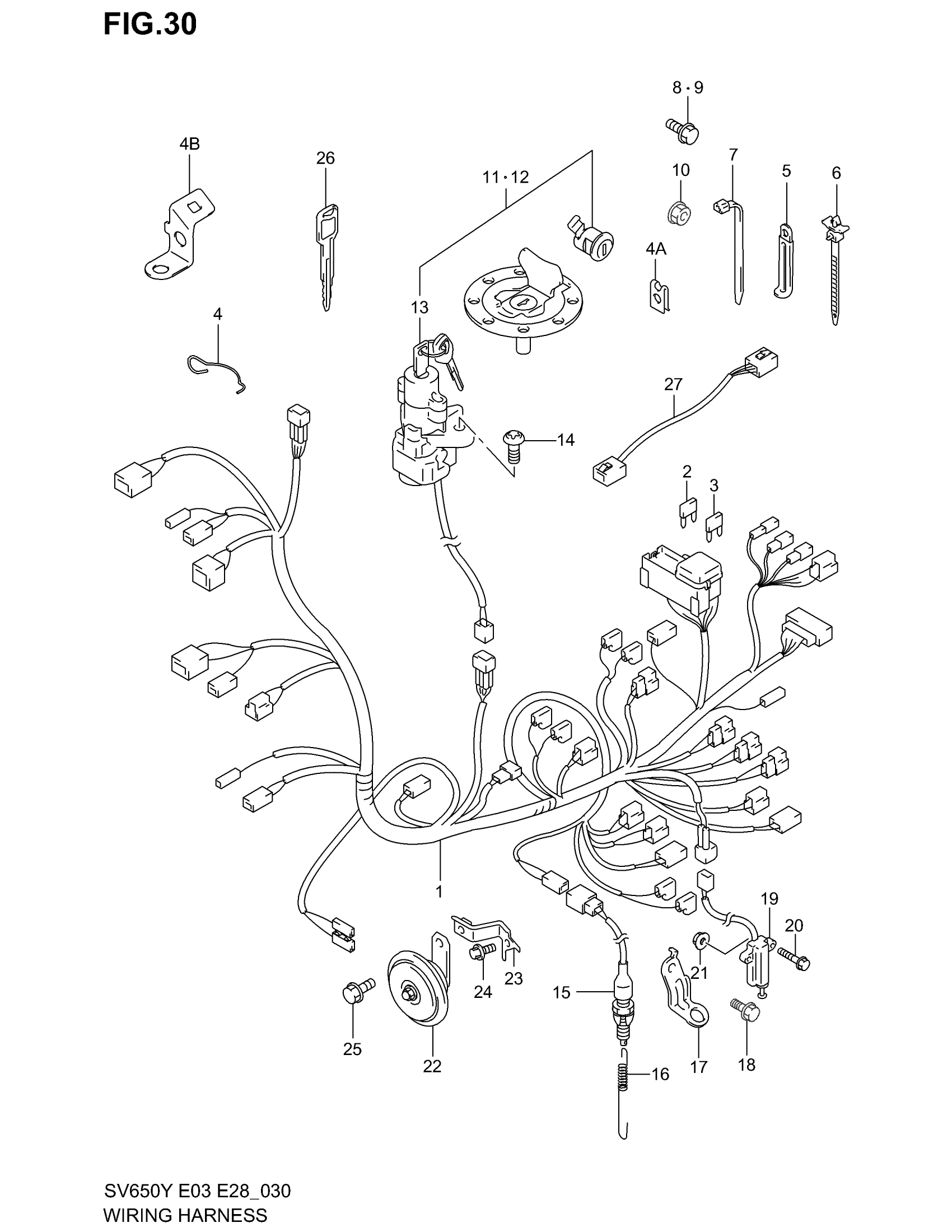

Suzuki SV650 (2002) WIRING HARNESS (SV650X/Y/K1/K2) Diagram

#

Description
Price

1

HARNESS, WIRING NO.1 | MODEL X/Y

36610-20F10

Unavailable

1

HARNESS, WIRING NO.1 | MODEL K1

36610-20F40

Unavailable

1

HARNESS, WIRING NO.1 | MODEL K2; Includes Item(s) 2 - 3

36610-20F60

Unavailable

2

FUSE (10A)

09481-10501

$2.06

3

FUSE (15A)

09481-15501

$2.02

4

GUIDE, WIRING HARNESS

36619-20F00

Unavailable

4A

NUT, CLAMP | MODEL K2

53141-19A00

$4.34

4B

HOLDER, COUPLER | MODEL K2

36687-19F10

Unavailable

5

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

5

CLAMP (L:135)

09404-06435

$3.68

5

CLAMP This part replaces 09404-08207.

09404-08212

$1.50

6

CLAMP (L:90)

09407-11402

$1.80

6

CLAMP This part replaces 09407-17401.

09407-17402

$3.93

7

CLAMP (L:125)

09407-14403

$2.26

7

CLAMP (L:165)

09407-18402

$2.19

8

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

9

BOLT This part replaces 01550-08253.

01550-0825A

$2.32

10

NUT This part replaces 08316-10083.

08316-1008B

$2.66

11

LOCK SET | MODEL X/Y

37101-19830

Unavailable

11

LOCK SET | MODEL K1/K2 This part replaces 37101-19850.

37101-19830

Unavailable

12

LOCK SET | MODEL X/Y E33

37101-19840

Unavailable

12

LOCK SET | MODEL K1/K2 E33; Includes Item(s) 13 - 13 This part replaces 37101-19860.

37101-19840

Unavailable

13

LOCK ASSY, STEERING | MODEL X/Y

37100-19F00

Unavailable

13

LOCK ASSY, STEERING | MODEL K1/K2 This part replaces 37100-19F20.

37100-19F00

Unavailable

14

BOLT (8X20)

09139-08016

$3.37

15

SWITCH ASSY, STOP LAMP | MODEL X/Y/K1

37740-31D00

$28.23

15

SWITCH ASSY, STOP LAMP | MODEL K2

37740-19F00

$31.28

16

SPRING

09443-06005

$3.37

17

BRACKET, STOP LAMP SWITCH

43251-19F10

Unavailable

18

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

19

SWITCH ASSY,SID This part replaces 37840-19F00.

37840-19F01

$83.27

20

BOLT (6X20) | MODEL X/Y/K1 This part replaces 37849-19F00.

09103-06248

Unavailable

20

BOLT(6X20) | MODEL K2

09103-06248

Unavailable

21

NUT This part replaces 08316-10063.

08316-1006B

$2.50

22

HORN ASSY | MODEL X/Y/K1

38500-02F60

Unavailable

22

HORN ASSY | MODEL K2

38500-19F00

Unavailable

23

BRACKET, HORN

38590-19F00

Unavailable

24

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

25

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

26

KEY, BLANK | OPT

37146-33E00

$21.21

27

WIRE, STARTER CONTROL | OPT

36854-19F00

Unavailable
