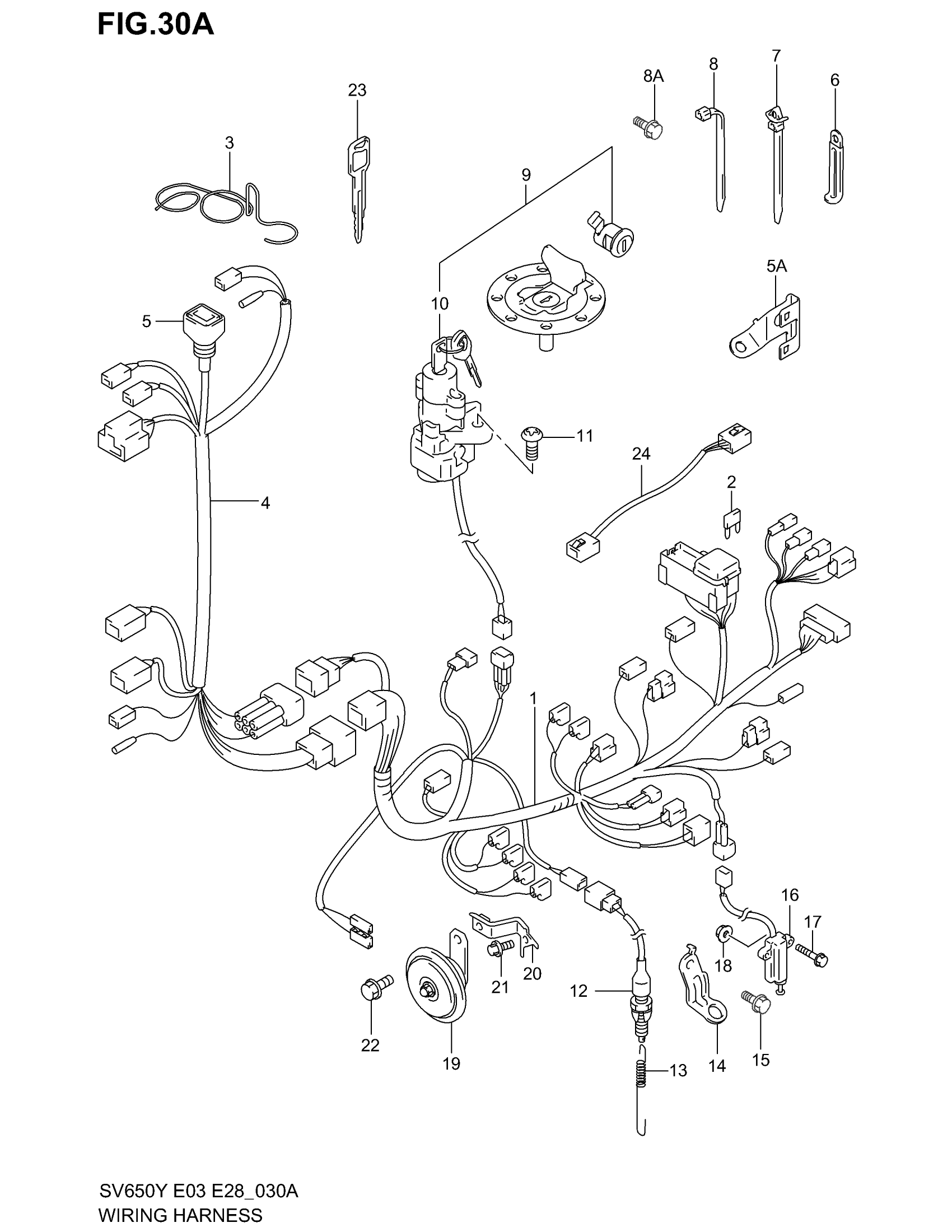

Suzuki SV650 (2002) WIRING HARNESS (SV650SX/SY/SK1/SK2) Diagram

#

Description
Price

1

HARNESS, WIRING NO.1 | MODEL X/Y

36610-19F00

Unavailable

1

HARNESS, WIRING NO.1 | MODEL K1

36610-19F40

Unavailable

1

HARNESS, WIRING NO.1 | MODEL K2; Includes Item(s) 2 - 2

36610-19F60

Unavailable

2

FUSE (10A)

09481-10501

$2.06

2

FUSE (15A)

09481-15501

$2.02

3

GUIDE, WIRING HARNESS

36619-33E00

Unavailable

4

HARNESS, WIRING NO.2 | MODEL X/Y/K1

36620-19F10

Unavailable

4

HARNESS, WIRING NO.2 | MODEL K2; Includes Item(s) 5

36620-19F30

Unavailable

5

COVER, SPEEDOMETER COUPLER

36618-33E00

$8.77

5A

HOLDER, COUPLER | MODEL K2

36687-19F00

Unavailable

6

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

6

CLAMP (L:135)

09404-06435

$3.68

7

CLAMP (L:90)

09407-11402

$1.80

7

CLAMP This part replaces 09407-17401.

09407-17402

$3.93

8

CLAMP (L:125)

09407-14403

$2.26

8

CLAMP (L:165)

09407-18402

$2.19

8A

BOLT, CLAMP | E33 This part replaces 01550-06123.

01550-0612A

$1.97

9

LOCK SET

37101-19830

Unavailable

9

LOCK SET | E33; Includes Item(s) 10

37101-19840

Unavailable

10

LOCK ASSY, STEERING

37100-19F00

Unavailable

11

BOLT (8X20)

09139-08016

$3.37

12

SWITCH ASSY, STOP LAMP | MODEL X/Y/K1

37740-31D00

$28.23

12

SWITCH ASSY, STOP LAMP | MODEL K2

37740-19F00

$31.28

13

SPRING

09443-06005

$3.37

14

BRACKET, STOP LAMP SWITCH

43251-19F00

Unavailable

15

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

16

SWITCH ASSY,SID This part replaces 37840-19F00.

37840-19F01

$83.27

17

BOLT (6X20) | MODEL X/Y/K1 This part replaces 37849-19F00.

09103-06248

Unavailable

17

BOLT (6X20) | MODEL K2

09103-06248

Unavailable

18

NUT This part replaces 08316-10063.

08316-1006B

$2.50

19

HORN ASSY | MODEL X/Y/K1

38500-02F60

Unavailable

19

HORN ASSY | MODEL K2

38500-19F00

Unavailable

20

BRACKET, HORN

38590-19F00

Unavailable

21

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

22

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

23

KEY,.BLANK | OPT

37146-33E00

$21.21

24

WIRE, STARTER CONTROL | OPT

36854-19F00

Unavailable
