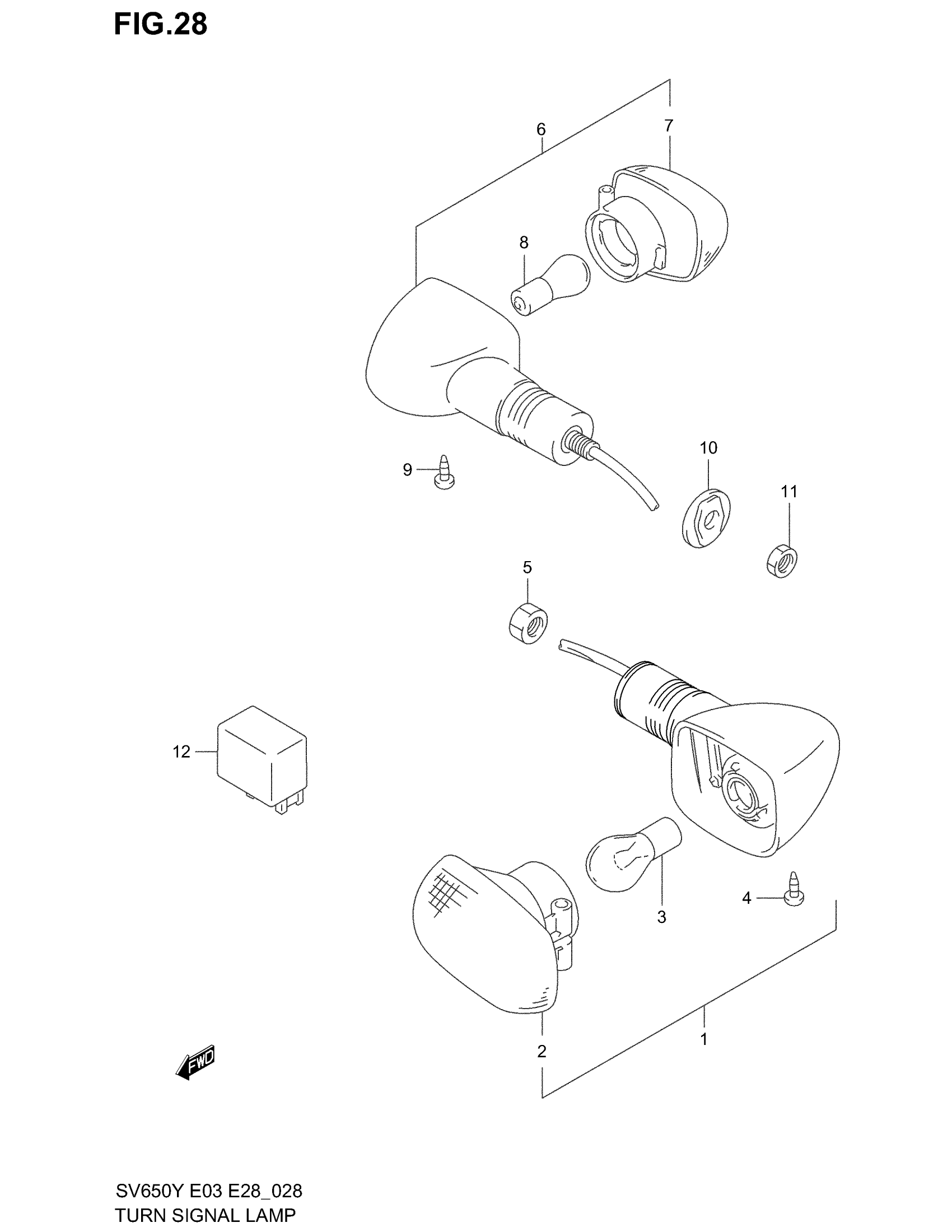

Suzuki SV650 (2002) TURNSIGNAL LAMP (SV650X/Y/K1/K2) Diagram

#

Description

Price

1

LAMP ASSY, FRONT TURNSIGNAL RH

35601-20F30

$130.43

1

LAMP ASSY, FRONT TURNSIGNAL LH | Includes Item(s) 2 - 4

35602-20F30

$130.43

2

LAMP UNIT

35610-33E00

$36.97

3

BULB (12V,21W)

09471-12045

$2.95

4

SCREW This part replaces 03242-04123.

03242-0412B

$3.23

5

NUT This part replaces 08316-10103.

08316-1010B

$2.65

6

LAMP ASSY, REAR This part replaces 35603-33E10.

35603-33E20

Unavailable

6

LAMP ASSY,REAR | Includes Item(s) 7 - 9 This part replaces 35604-33E10.

35604-33E20

$133.08

7

LAMP UNIT

35610-33E00

$36.97

8

BULB (12V,21W)

09471-12045

$2.95

9

SCREW This part replaces 03242-04123.

03242-0412B

$3.23

10

SPACER, REAR TURNSIGNAL

35695-17C00

$3.69

11

NUT This part replaces 08310-00103.

08310-0010A

$1.86

12

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
