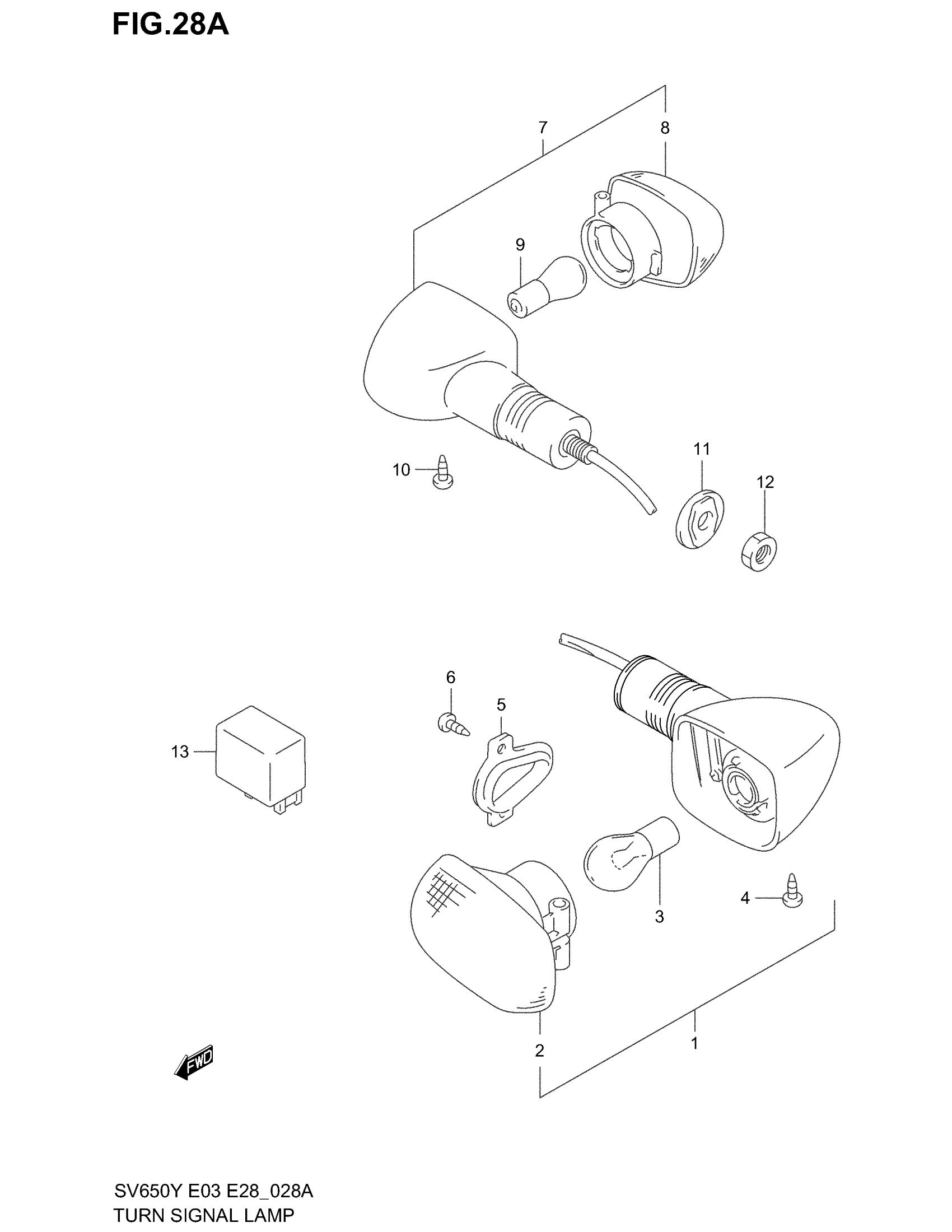

Suzuki SV650 (2002) TURNSIGNAL LAMP (SV650SX/SY/SK1/SK2) Diagram

#

Description

Price

1

LAMP ASSY, FRONT TURNSIGNAL RH

35601-33E30

$96.77

1

LAMP ASSY, FRONT TURNSIGNAL LH | Includes Item(s) 2 - 4

35602-33E30

$85.04

2

LAMP UNIT

35610-33E00

$32.75

3

BULB (12V,21W)

09471-12045

$3.27

4

SCREW This part replaces 03242-04123.

03242-0412B

$2.98

5

PLATE, FRONT TURNSIGNAL LAMP

35629-33E00

$5.98

6

SCREW This part replaces 03511-05103.

03511-0510A

$1.71

7

LAMP ASSY, REAR This part replaces 35603-33E10.

35603-33E20

Unavailable

7

LAMP ASSY,REAR | Includes Item(s) 8 - 10 This part replaces 35604-33E10.

35604-33E20

$118.48

8

LAMP UNIT

35610-33E00

$32.75

9

BULB (12V,21W)

09471-12045

$3.27

10

SCREW This part replaces 03242-04123.

03242-0412B

$2.98

11

SPACER, REAR TURNSIGNAL

35695-17C00

$4.03

12

NUT This part replaces 08310-00103.

08310-0010A

$1.84

13

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
