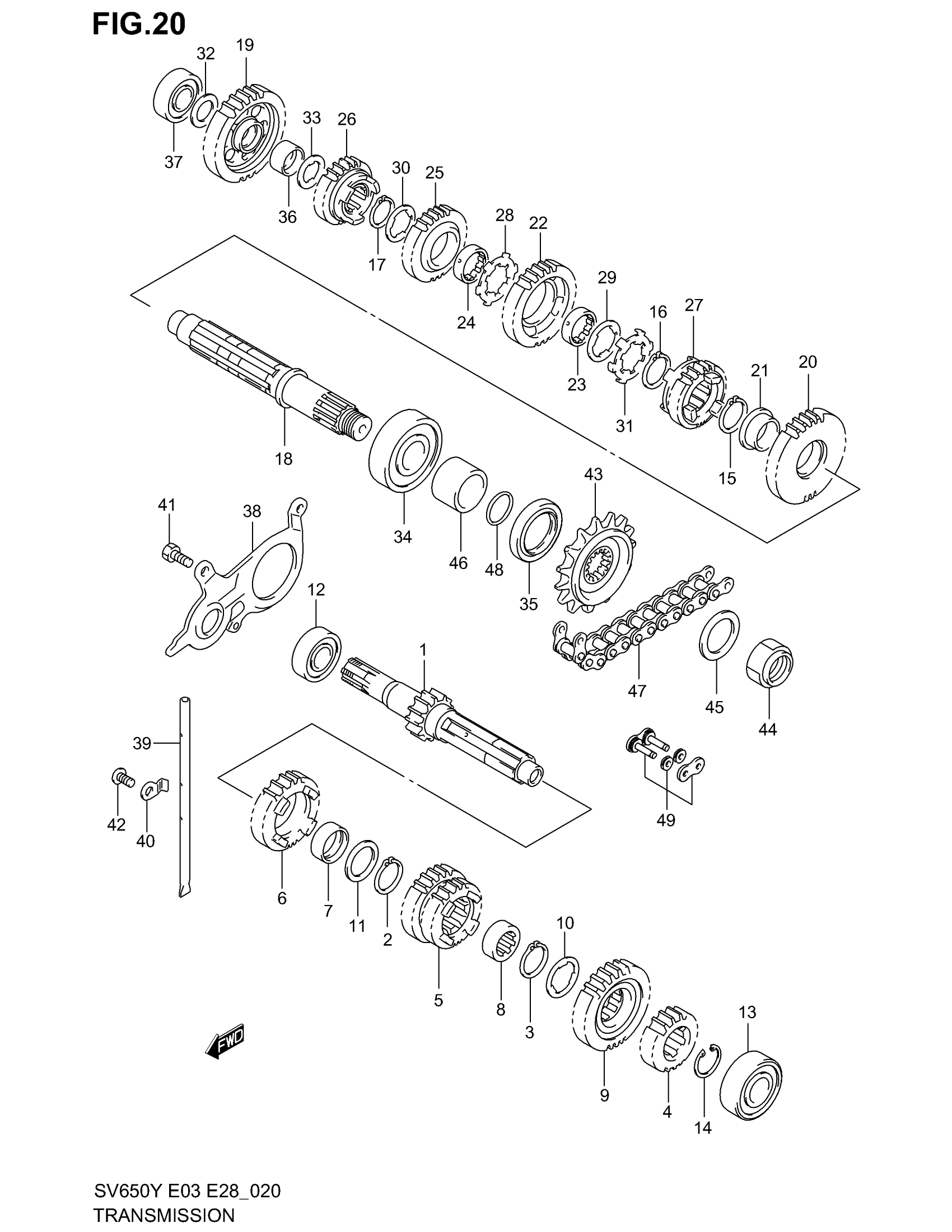

Suzuki SV650 (2002) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:13)

24120-19F00

Unavailable

2

CIRCLIP, 5TH DRIVE GEAR

24127-19F00

$3.87

3

CIRCLIP, 6TH DRIVE GEAR

24127-19F00

$3.87

4

GEAR,2ND DRIVE (NT:18) This part replaces 24221-20F00.

24221-20F10

Unavailable

5

GEAR,3RD & 4TH DRIVE (NT:21/2 | MODEL X/Y/K1,NT:21/24 This part replaces 24231-20F00.

24231-20F10

Unavailable

5

GEAR,3RD & 4TH DRIVE (NT:21/2 | MODEL K2,NT:21/24 This part replaces 24231-20F02.

24231-20F10

Unavailable

6

GEAR,5TH DRIVE (NT:26) This part replaces 24251-20F01.

24251-20F02

Unavailable

7

BUSH, 5TH DRIVE

24252-19F00

$17.12

8

BUSH,6TH DRIVE GEAR

24252-38A10

Unavailable

9

GEAR,6TH DRIVE (NT:27)

24261-20F00

Unavailable

10

WASHER,LOCK (25.1X33X1.0) | 25.1X33X1.0

09167-25021

$3.85

11

WASHER, 5TH DRIVE

09181-25167

$3.12

12

BEARING, CNTR SHAFT LH | 17X40X12

09262-17046

$38.05

13

BEARING (20X52X15) | 20X52X15 This part replaces 09262-20116.

09262-20145

$37.70

14

RING, 2ND DRIVE

09380-25012

$2.47

15

CIRCLIP, 2ND DRIVEN

24127-19F00

$3.87

16

CIRCLIP, 3RD DRIVEN

24127-19F00

$3.87

17

CIRCLIP, 4TH DRIVEN

24127-19F00

$3.87

18

SHAFT, DRIVE

24130-19F01

Unavailable

19

GEAR, 1ST DRIVEN (NT:32)

24311-20F00

$137.02

20

GEAR, 2ND DRIVEN (NT:32) This part replaces 24321-20F00.

24321-20F01

$125.38

21

BUSH, 2ND DRIVEN

24322-19F00

$23.78

22

GEAR, 3RD DRIVEN (NT:29)

24331-20F00

Unavailable

23

BUSH, 3RD, DRIVEN

24332-24510

$18.67

24

BUSH, 4TH DRIVEN

24332-24510

$18.67

25

GEAR, 4TH DRIVEN (NT:27)

24341-20F00

$137.02

26

GEAR, 5TH DRIVEN (NT:25) This part replaces 24351-20F01.

24351-20F02

Unavailable

27

GEAR, 6TH DRIVEN (NT:23) This part replaces 24361-20F00.

24361-20F01

$141.12

28

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

29

WASHER,LOCK (25.1X33X1.0)

09167-25021

$3.85

30

WASHER,LOCK (25.1X33X1.0)

09167-25021

$3.85

31

WASHER, 3RD DRIVEN LOCK

09169-25001

$2.70

32

WASHER, 1ST DRIVEN | 17X28X1.0

09181-17195

$3.07

33

WASHER, 1ST DRIVEN | 20X30X1.0

09181-20195

$2.60

34

BEARING, DRIVE SHAFT LH | 25X62X17

09262-25125

$59.09

35

SEAL, DRIVE SHAFT | 36X50X6

09283-36003

$12.61

36

BUSH, 1ST DRIVEN

09300-20032

$17.50

37

BEARING, DRIVE SHAFT RH | 17X40X12

09262-17023

$16.75

38

RETAINER,DRIVE SHAFT OIL SEAL This part replaces 24751-19F00.

24751-19F10

$14.72

39

GUIDE, T/M OIL

24881-12C20

$12.72

40

RETAINER,TRANSMISSION OIL

24885-12C10

Unavailable

41

BOLT This part replaces 01500-06123.

01500-0612A

$1.78

42

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

43

SPROCKET, ENGINE (NT:15) This part replaces 27510-20F00.

27510-20F21

$53.33

44

NUT, ENGINE SPROCKET

09159-20004

$15.67

45

WASHER, ENGINE SPROCKET

09167-25019

$2.19

46

SPACER, ENGINE SPROCKET This part replaces 27531-19F00.

27531-19F01

$30.71

47

CHAIN, DRIVE | SV650X/K1/K2 This part replaces 27600-32C10-110.

27600-32C90-110

$231.82

47

CHAIN ASSY,DRIV | SV650SX/SK1/SK2 This part replaces 27600-32C10-108.

27600-32C90-108

$211.75

48

O RING (D:2.4,ID:23.7)

09280-24010

$5.64
