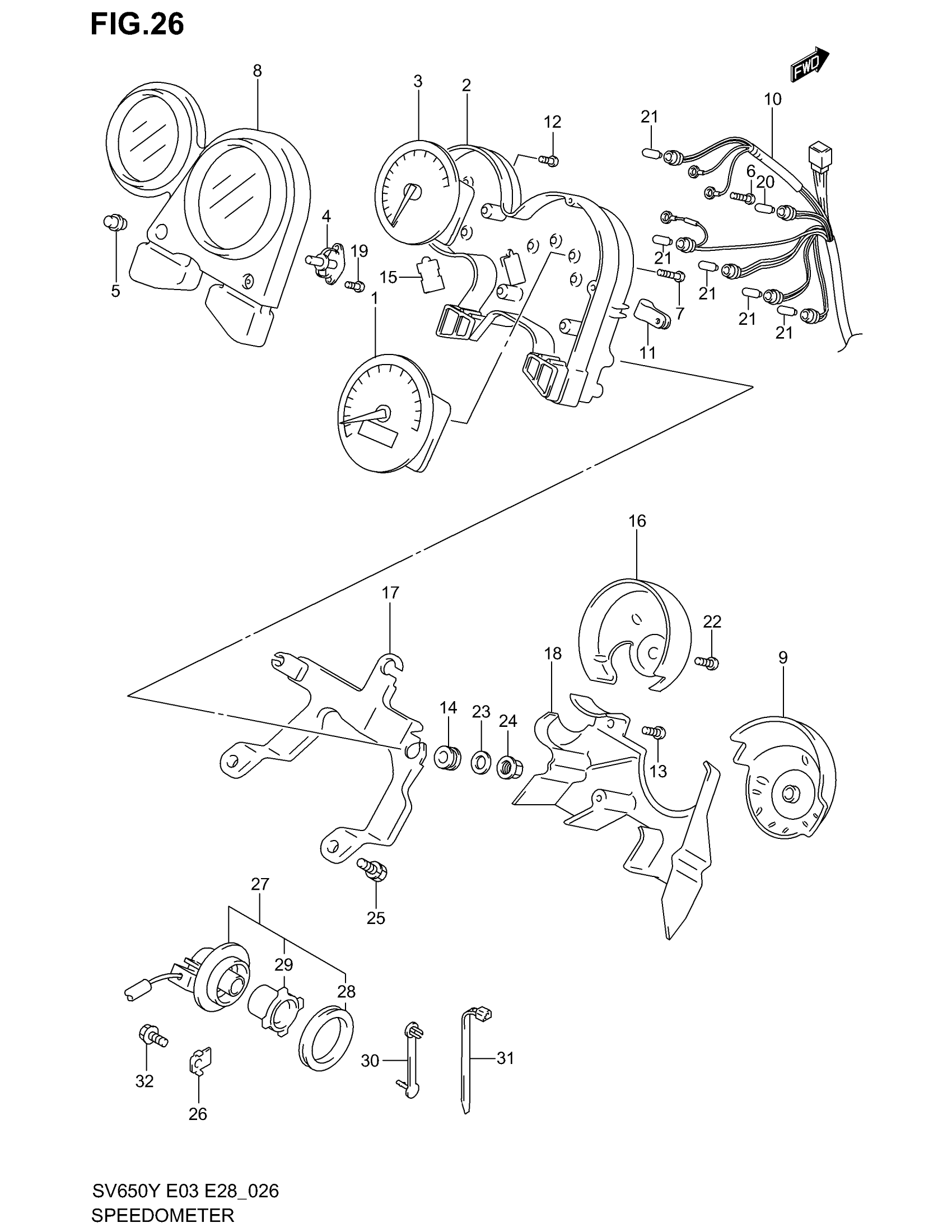

Suzuki SV650 (2002) SPEEDOMETER (SV650X/Y/K1/K2) Diagram

#

Description
Price

1

SPEEDOMETER (MILE)

34110-20F10

Unavailable

2

LOWER CASE

34111-19F20

$123.73

3

TACHOMETER

34210-20F00

Unavailable

4

ATTACHMENT, SWITCH

34123-33E00

Unavailable

5

SWITCH, GUM

34124-33E00

$5.75

6

SCREW, PAN HEAD (3X18)

34147-19F20

Unavailable

7

SCREW, PAN HEAD (3X20)

34149-19F20

Unavailable

8

UPPER CASE

34150-19F20

$249.02

9

ORNAMENT, SPEEDOMETER

34152-19F20

Unavailable

10

CORD ASSY

34173-19F20

Unavailable

11

CLAMP

34176-19F20

Unavailable

12

.SCREW (3X12)

34183-09F00

$2.56

13

SCREW, HEAD TAPPING (4X16)

34183-19F20

$3.87

14

CUSHION, METER This part replaces 34188-19F20.

34955-33E00

$3.56

15

GROMMET

34198-19F20

Unavailable

16

ORNAMENT, TACHOMETER

34211-19F20

$109.88

17

BRACKET

34950-19F20

$102.17

18

COVER

36383-19F20

$33.80

19

SCREW (3X10)

09132-03005

Unavailable

20

BULB (12V,1.7W,T10)

09471-12077

$3.55

21

.BULB (12V1.7W)

09471-12108

$3.42

22

SCREW This part replaces 03541-04163.

03541-0416A

$1.49

23

WASHER (6.5X18X1)

09160-06056

$1.72

24

.NUT

08310-00067

$2.13

25

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

26

GUIDE, SENSOR LEAD

34938-14F00

$6.30

27

SENSOR, SPEED | Includes Item(s) 28 - 29

34990-21E00

$249.50

28

SEAL, SENSOR OIL

09286-44001

$11.67

29

ROTOR

34983-21E00

$31.16

30

CLAMP

09407-03401

$3.07

31

CLAMP (L:145)

09407-14407

$3.57

32

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32
