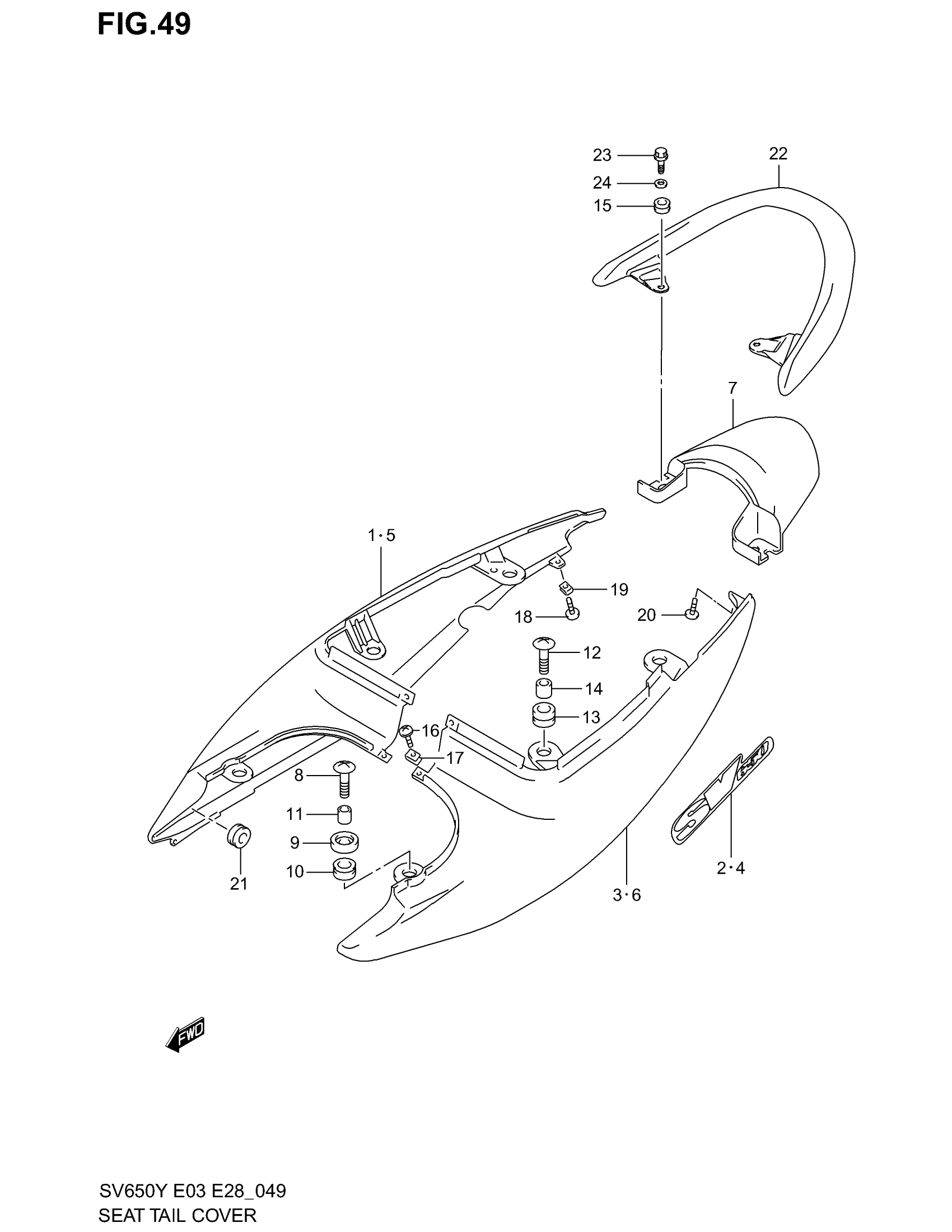

Suzuki SV650 (2002) SEAT TAIL COVER (MODEL Y) Diagram

#

Description
Price

1

COVER, SEAT TAIL RH (BLUE) | SV650Y FOR YC2

45501-20F00-YC2

Unavailable

1

COVER, SEAT TAIL RH (RED) | SV650Y FOR Y7M; Includes Item(s) 2 - 2

45501-20F00-Z7X

Unavailable

2

EMBLEM, TAIL COVER,SV650 | FOR YC2

68165-20F00-N9W

Unavailable

2

EMBLEM, TAIL COVER,SV650 | FOR Z7X

68165-20F00-N9V

Unavailable

3

COVER, SEAT TAIL LH (BLUE) | SV650Y FOR YC2

45502-20F00-YC2

Unavailable

3

C0VER, SEAT TAIL LH (RED) | SV650Y FOR Y7M; Includes Item(s) 4 - 4

45502-20F00-Z7X

Unavailable

4

EMBLEM, TAIL COVER,SV650 | FOR YC2

68165-20F00-N9W

Unavailable

4

EMBLEM, TAIL COVER,SV650 | FOR Z7X

68165-20F00-N9V

Unavailable

5

COVER, SEAT TAIL RH (BLUE) | SV650SY E28

45501-19F10-YC2

Unavailable

5

COVER, SEAT TAIL RH (YELLOW) | SV650SY E28

45501-19F10-Y9F

Unavailable

6

COVER, SEAT TAIL LH (BLUE) | SV650SY E28

45502-19F10-YC2

Unavailable

6

COVER, SEAT TAIL LH (YELLOW) | SV650SY E28

45502-19F10-Y9F

Unavailable

7

COVER, SEAT TAIL CENTER (GRAY) | FOR YC2,Y7M,Y9F

45503-19F50-35W

Unavailable

8

SCREW, FRONT (6X30)

09136-06083

$2.19

9

CUSHION, FR UPPER (10X28X13)

47116-19F00

$6.37

10

CUSHION, FR LOWER (10X22X15)

47115-19F00

$5.52

11

SPACER (6.5X10X15.70)

09180-06294

$3.35

12

SCREW, CENTER (6X20)

09136-06105

$1.97

13

CUSHION (10X28X19)

09320-10045

$3.76

14

SPACER (6.5X10X9.4)

09180-06286

$2.50

15

CUSHION, REAR (15X28X12)

47115-05F00

$5.63

16

SCREW This part replaces 03241-15123.

03241-1512B

$2.39

17

NUT

09148-05038

$1.97

18

SCREW This part replaces 03241-15123.

03241-1512B

$2.39

19

NUT

09148-05038

$1.97

20

SCREW This part replaces 03242-04103.

03241-0410A

$1.52

21

CUSHION (8x26x7)

09320-08018

$3.04

22

HANDLE, PILLION RIDER (BLACK)

46210-19F50-291

Unavailable

23

BOLT This part replaces 01551-08253.

01551-0825A

$2.85

24

WASHER

09160-08126

$2.44
