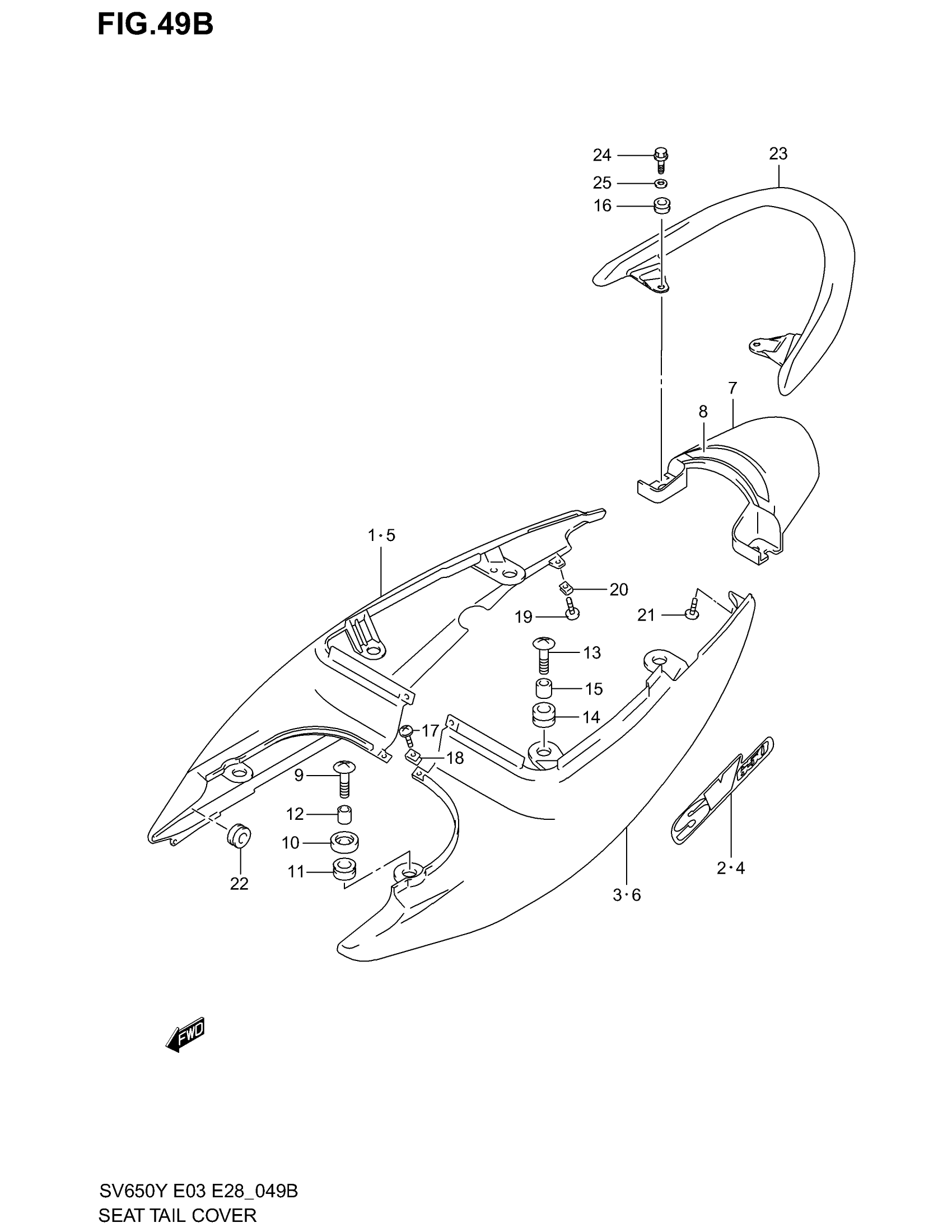

Suzuki SV650 (2002) SEAT TAIL COVER (MODEL K2) Diagram

#

Description
Price

1

COVER, SEAT TAIL RH (BLUE) | SV650K2

45501-20F20-YC2

Unavailable

1

COVER, SEAT TAIL RH (BLACK) | SV650K2

45501-20F20-Y7L

Unavailable

1

COVER, SEAT TAIL RH (SILVER) | SV650K2

45501-20F20-YD8

Unavailable

1

COVER, SEAT TAIL RH (YELLOW) | SV650K2; Includes Item(s) 2 - 2

45501-20F20-Y9H

Unavailable

2

EMBLEM, TAIL COVER | FOR YC2

68161-20F00-GY3

Unavailable

2

EMBLEM, TAIL COVER | FOR Y7L

68161-20F00-GY1

Unavailable

2

EMBLEM, TAIL COVER | FOR YD8

68161-20F00-GY4

Unavailable

2

EMBLEM, TAIL COVER | FOR Y9H

68161-20F00-GY2

Unavailable

3

COVER, SEAT TAIL LH (BLUE) | SV650K2

45502-20F20-YC2

Unavailable

3

COVER, SEAT TAIL LH (BLACK) | SV650K2

45502-20F20-Y7L

Unavailable

3

C0VER, SEAT TAIL LH (SILVER) | SV650K2

45502-20F20-YD8

Unavailable

3

COVER, SEAT TAIL LH (YELLOW) | SV650K2; Includes Item(s) 4 - 4

45502-20F20-Y9H

Unavailable

4

EMBLEM, TAIL COVER | FOR YC2

68161-20F00-GY3

Unavailable

4

EMBLEM, TAIL COVER | FOR Y7L

68161-20F00-GY1

Unavailable

4

EMBLEM, TAIL COVER | FOR YD8

68161-20F00-GY4

Unavailable

4

EMBLEM, TAIL COVER | FOR Y9H

68161-20F00-GY2

Unavailable

5

COVER, SEAT TAIL RH (BLUE) | SV650SK2

45501-19F10-YC2

Unavailable

5

COVER, SEAT TAIL RH (BLACK) | SV650SK2

45501-19F10-Y7L

Unavailable

5

COVER, SEAT TAIL RH (SILVER) | SV650SK2

45501-19F10-YD8

Unavailable

5

COVER, SEAT TAIL RH (YELLOW) | SV650SK2

45501-19F10-Y9H

Unavailable

6

COVER, SEAT TAIL LH (BLUE) | SV650SK2

45502-19F10-YC2

Unavailable

6

COVER, SEAT TAIL LH (BLACK) | SV650SK2

45502-19F10-Y7L

Unavailable

6

COVER, SEAT TAIL LH (SILVER) | SV650SK2

45502-19F10-YD8

Unavailable

6

COVER, SEAT TAIL LH (YELLOW) | SV650SK2

45502-19F10-Y9H

Unavailable

7

COVER, SEAT TAIL CENTER (BLACK)

45503-19F50-Y7L

Unavailable

8

TAPE, SEAT TAIL COVER CENTER

45514-19F00

Unavailable

9

SCREW, FRONT (6X30)

09136-06083

$2.19

10

CUSHION, FR UPPER (10X28X13)

47116-19F00

$6.37

11

CUSHION, FR LOWER (10X22X15)

47115-19F00

$5.52

12

SPACER (6.5X10X15.70)

09180-06294

$3.35

13

SCREW, CENTER (6X20)

09136-06105

$1.97

14

CUSHION (10X28X19)

09320-10045

$3.76

15

SPACER (6.5X10X9.4)

09180-06286

$2.50

16

CUSHION, REAR (15X28X12)

47115-05F00

$5.63

17

SCREW This part replaces 03241-15123.

03241-1512B

$2.39

18

NUT

09148-05038

$1.97

19

SCREW This part replaces 03241-15123.

03241-1512B

$2.39

20

NUT

09148-05038

$1.97

21

SCREW This part replaces 03242-04103.

03241-0410A

$1.52

22

CUSHION (8x26x7)

09320-08018

$3.04

23

HANDLE, PILLION RIDER (BLACK)

46210-19F50-291

Unavailable

24

BOLT This part replaces 01551-08253.

01551-0825A

$2.85

25

WASHER

09160-08126

$2.44
