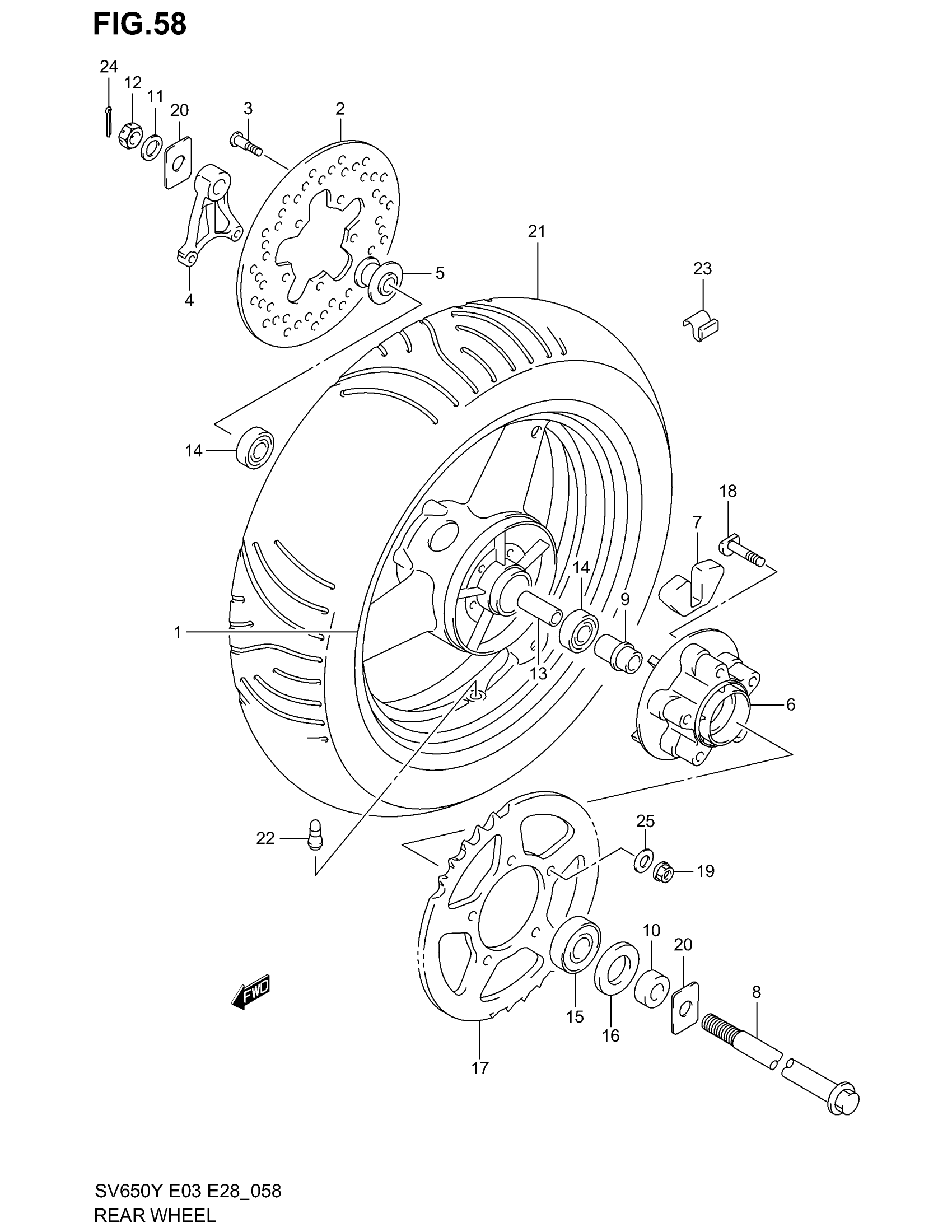

Suzuki SV650 (2002) REAR WHEEL Diagram

#

Description
Price

1

WHEEL,RR,17M/CX | MODEL X/K1/K2 This part replaces 64111-08F00-Y6G.

64111-08F01-Y6G

Unavailable

1

WHEEL,RR,17M/CX | MODEL Y This part replaces 64111-08F00-12R.

64111-08F01-12R

Unavailable

2

DISC, REAR BRAKE

69211-21E00

$388.57

3

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

4

BRACKET, REAR CALIPER

69721-33D00

Unavailable

5

SPACER, REAR AXLE RH

64740-19C00

$22.22

6

DRUM, SPROCKET MOUNTING

64611-19F00

Unavailable

7

ABSORBER,RR HUB SHOCK

64651-27A01

$9.78

8

AXLE, REAR

64711-19F10

$81.22

9

RETAINER, REAR SPROCKET DRUM

64733-34C00

$29.10

10

SPACER, REAR AXLE LH

64741-45D00

$15.08

11

WASHER

09160-17050

$2.45

12

NUT

09141-16007

$8.75

13

SPACER (17.5X25X88)

09180-17067

$23.05

14

BEARING

08143-63037

$22.58

15

BEARING (25X62X17)

09262-25073

$25.92

16

SEAL,OIL (35X62X8)

09285-35001

$10.19

17

SPROCKET, REAR (NT:45-525) | SV650X/Y/K1/K2

64511-32C00

$93.37

17

SPROCKET, REAR (NT:44-525) | SV650SX/SY/SK1/SK2

64511-33C01

$84.03

18

BOLT (10X47)

09119-10043

$4.26

19

NUT

08319-31107

$2.73

20

WASHER, CHAIN ADJUSTER

64712-33D00

$6.58

21

TIRE, REAR,160/60 ZR17(69W) | (METZELER)

65110-20F00

Unavailable

22

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

23

BALANCER, WHEEL (10G)

55411-00A00

$1.49

23

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$7.05

24

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

25

WASHER (10.5X22X2.3) This part replaces 09160-10506.

09160-10039

$2.26
