2002 Suzuki SV650 Rear Fender Diagram

← All diagrams

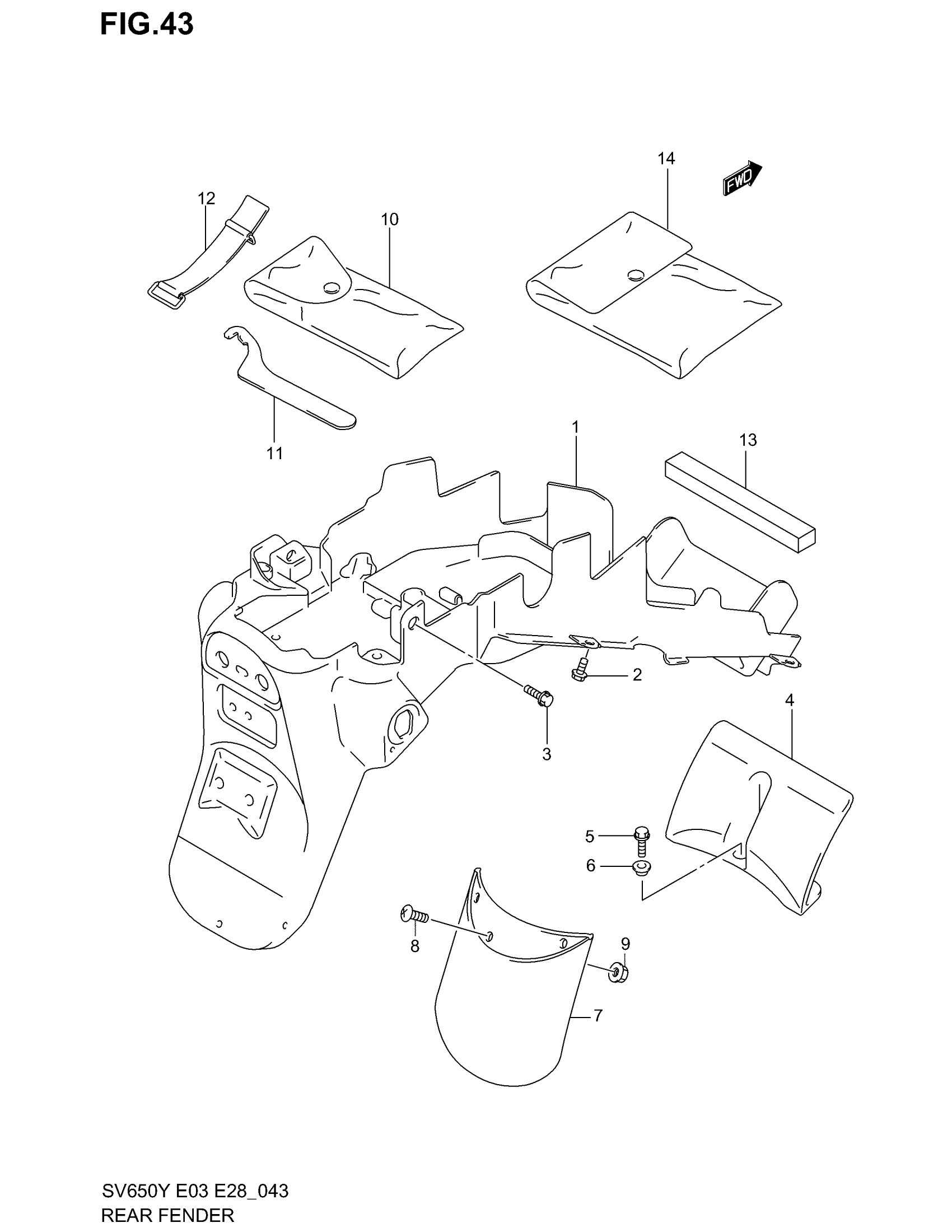

Find the part on the Rear Fender diagram for your 2002 Suzuki SV650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki SV650 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, REAR | SV650X/Y This part replaces 63111-19F30.

63111-19F31

1
Out of stock

1

FENDER, REAR | SV650K1/K2

63111-19F31

1
Out of stock

1

FENDER, REAR | SV650SX/SY E28

63111-19F20

—
Out of stock

1

FENDER, REAR | SV650SK1/SK2

63111-19F21

1
Out of stock

2

BOLT

09116-06168

4
Out of stock

3

BOLT | MODEL X

09111-06066

2

$2.85

In stock

3

BOLT | MODEL Y/K1/K2

09113-06001

2
Out of stock

4

MUD GUARD, REAR FENDER FRONT

63421-19F00

1
Out of stock

5

BOLT | MODEL X This part replaces 01550-06163.

01550-0616A

1
Out of stock

5

SCREW | MODEL Y/K1/K2 This part replaces 02162-06163.

02162-0616B

1
Out of stock

6

WASHER

09169-06071

1
Out of stock

7

EXTENSION, REAR FENDER

63311-19F10

1
Out of stock

8

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

3
Out of stock

9

NUT

09146-06003

3
Out of stock

10

TOOL ASSY This part replaces 09800-21008.

09800-21065

1
Out of stock

11

CLAMP, WRENCH

09822-00005

1
Out of stock

12

BAND,TOOL | MODEL X/Y This part replaces 47435-02F00.

47435-02F02

1
Out of stock

12

BAND,TOOL | MODEL K1/K2 This part replaces 47435-02F01.

47435-02F02

1
Out of stock

13

CUSHION

47161-08F00

1
Out of stock

14

BAG,OWNERS MANUAL This part replaces 94980-42A00.

94980-42A02

1
Out of stock
