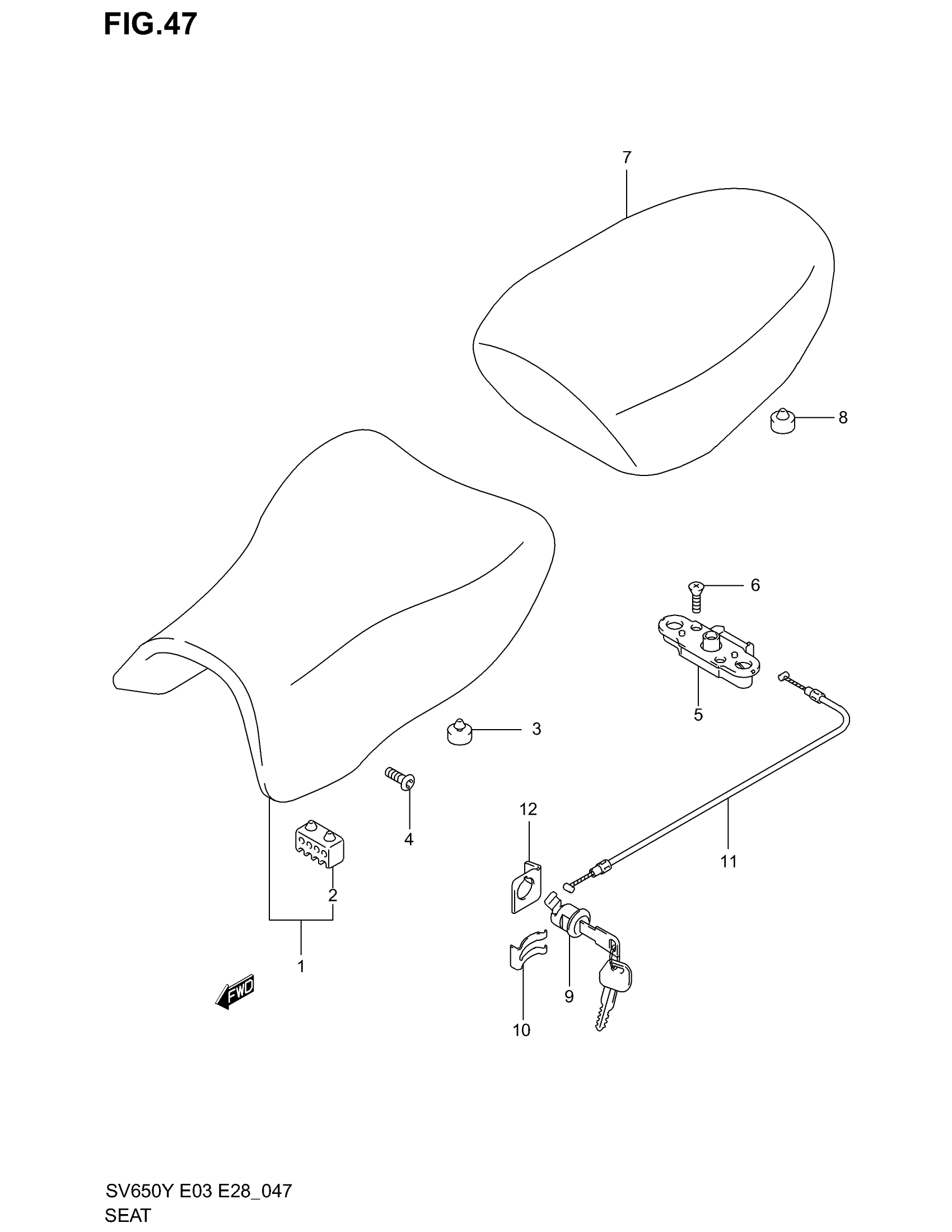

Suzuki SV650 (2002) SEAT Diagram

#

Description
Price

1

SEAT ASSY | Includes Item(s) 2 - 3 This part replaces 45100-19F50-W05.

45100-19F52-W05

Unavailable

2

CUSHION

45149-31300

$3.41

3

CUSHION

09321-10002

$2.02

4

BOLT (6X18)

09106-06064

$5.60

5

BRACKET, SEAT SUPPORT This part replaces 45220-20A01.

45220-47H00

$155.43

6

SCREW This part replaces 02122-06303.

02122-0630B

$2.14

7

SEAT ASSY,PILLI | Includes Item(s) 8 This part replaces 45300-19F50-W05.

45300-19F51-W05

Unavailable

8

CUSHION

09321-10011

$2.80

9

LOCK SET, SEAT

95700-14810

$102.14

10

PLATE, SEAT LOCK

45289-11F00

$5.93

11

CABLE, SEAT LOCK

45280-38400

$15.43

12

GUIDE, SEAT LOCK CABLE

45288-14F00

$5.14
