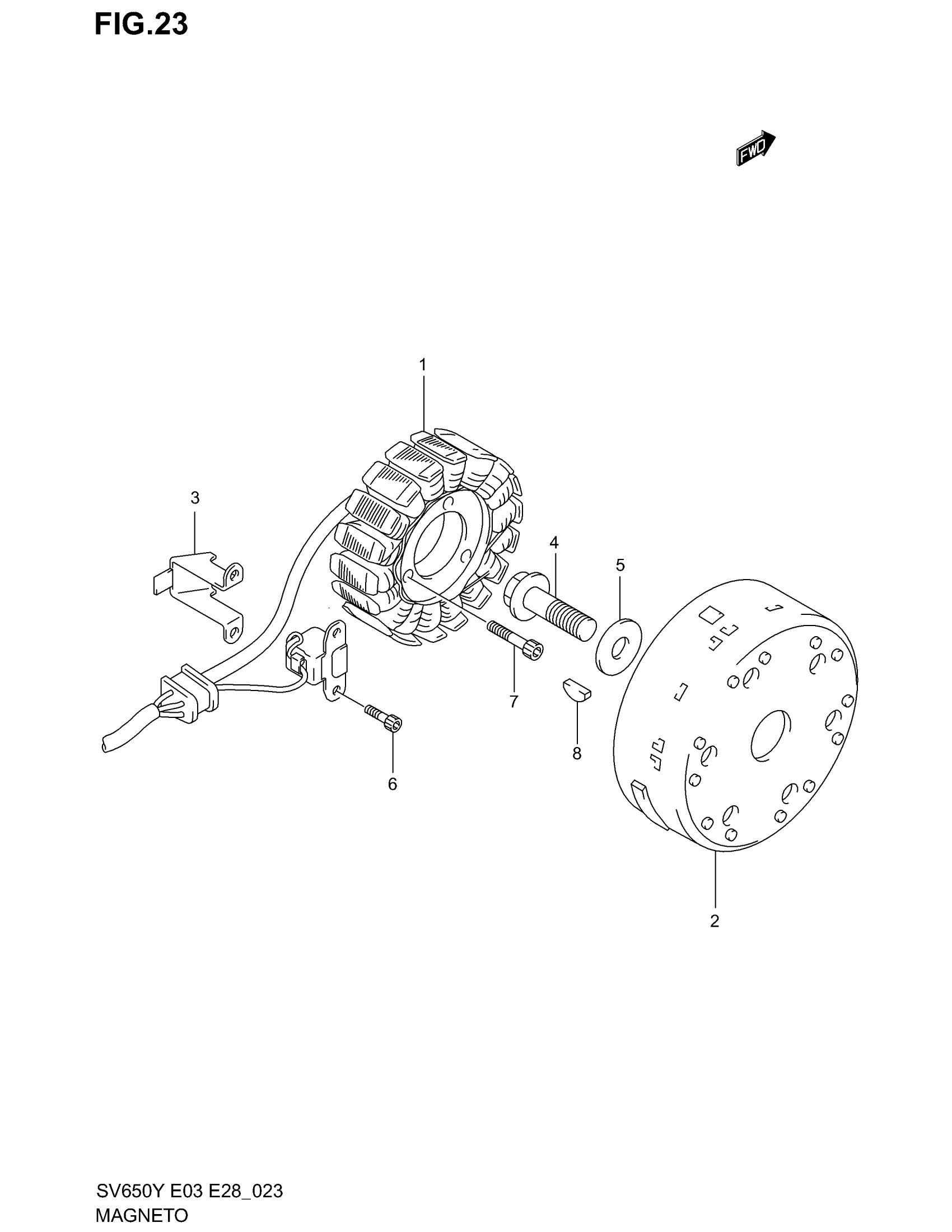

Suzuki SV650 (2002) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY | MODEL X/Y/K1

32101-19F00

Unavailable

1

STATOR ASSY | MODEL K2

32101-19F10

Unavailable

2

ROTOR ASSY

32102-20F00

Unavailable

3

CLAMP, MAGNETO LEAD

32371-19F00

$5.78

4

BOLT (12X40)

09103-12004

$4.00

5

WASHER (12X30X3.0)

09160-12036

$3.93

6

BOLT This part replaces 07130-05123.

07130-0512B

$2.50

7

BOLT | MODEL X/Y/K1 This part replaces 07130-06303.

07130-0630B

$3.37

7

BOLT | MODEL K2 This part replaces 07130-06253.

07130-0625B

$3.04

8

KEY

09420-04008

$3.42
