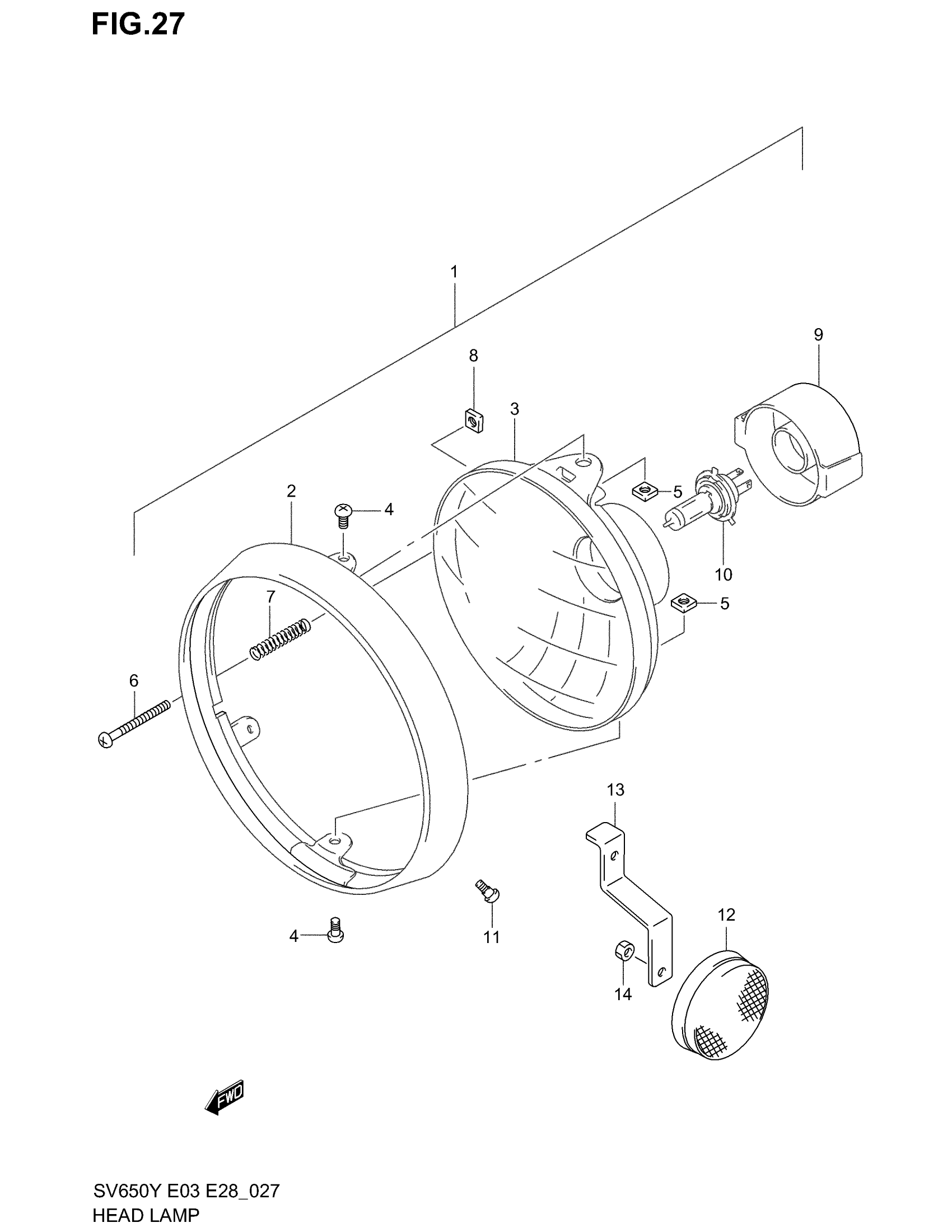

Suzuki SV650 (2002) HEADLAMP (SV650X/Y/K1/K2) Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 9 This part replaces 35100-19F00-999.

35100-19F01-999

$222.22

2

RIM

35111-19F00

$102.22

3

LAMP UNIT

35121-19F00

$153.02

4

.SCREW (5X16)

35181-19F00

$3.25

5

NUT

35135-45900

$3.25

6

SCREW, ADJUSTING

35151-19F00

$4.52

7

SPRING

35154-13F00

$4.82

8

.NUT

35152-45600

$3.47

9

.COVER,SOCKET

35174-19F00

$30.22

10

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

$25.15

11

SCREW

09139-05038

$2.06

12

REFLEX REFLECTOR ASSY

35950-14A00

$16.94

13

BRACKET, FRONT SIDE RR

35956-19F00

Unavailable

14

NUT This part replaces 08310-00053.

08310-0005A

$1.84
