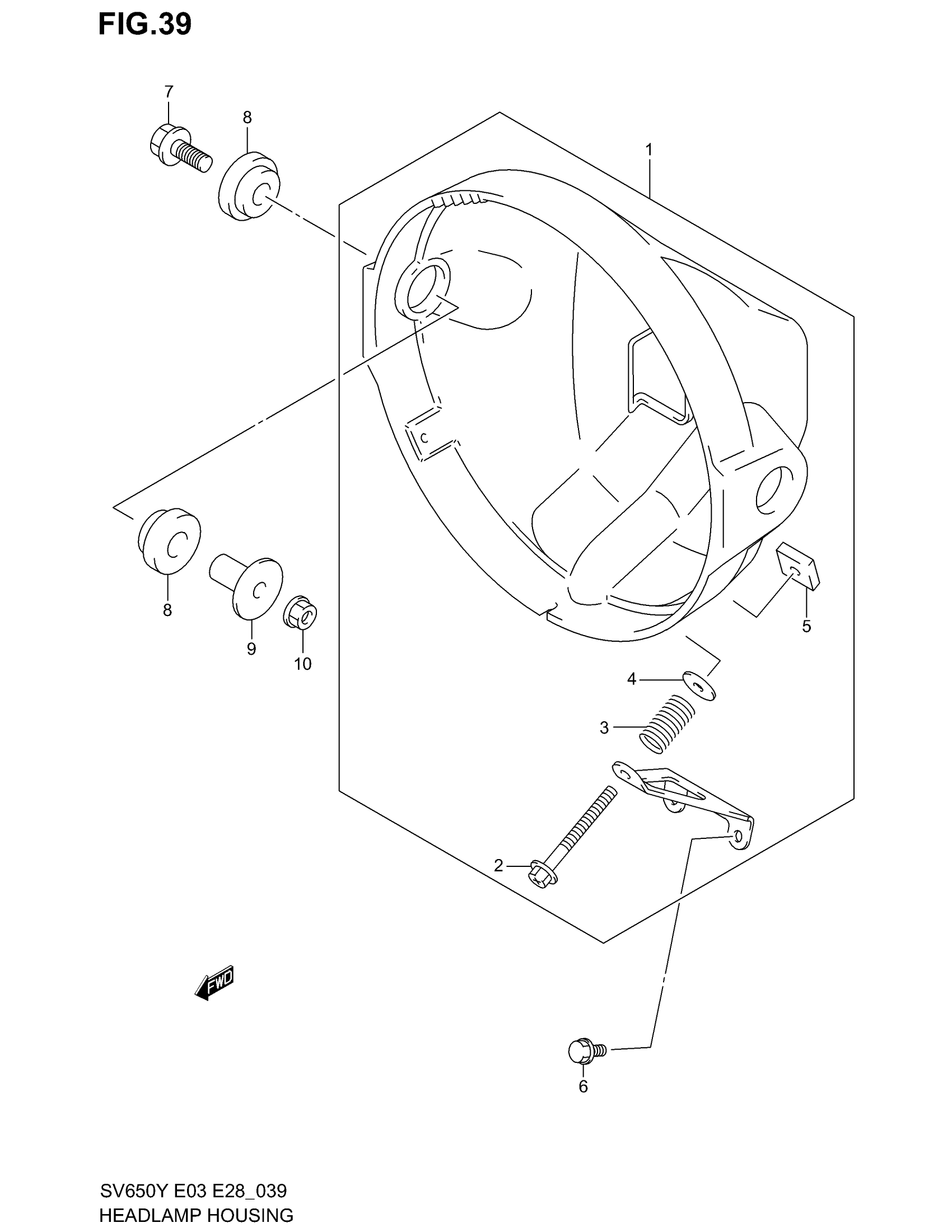

Suzuki SV650 (2002) HEADLAMP HOUSING (SV650X/Y/K1/K2) Diagram

#

Description

Price

1

HOUSING ASSY,HE | Includes Item(s) 2 - 5 This part replaces 51800-19F00.

51800-19F01

Unavailable

2

BOLT, HEADLAMP ADJUSTER

51858-25D00

Unavailable

3

SPRING, HEADLAMP ADJUSTER

51837-25D00

$5.10

4

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.84

5

NUT, HEADLAMP ADJUSTER

51825-25D00

$4.10

6

BOLT This part replaces 01550-05123.

01550-0512B

$2.87

7

BOLT

01244-08357

$3.99

8

CUSHION This part replaces 09320-12065.

09320-12101

$2.98

9

SPACER (8.6X12X20)

09180-08168

$7.38

10

NUT This part replaces 08316-10083.

08316-1008B

$2.66
