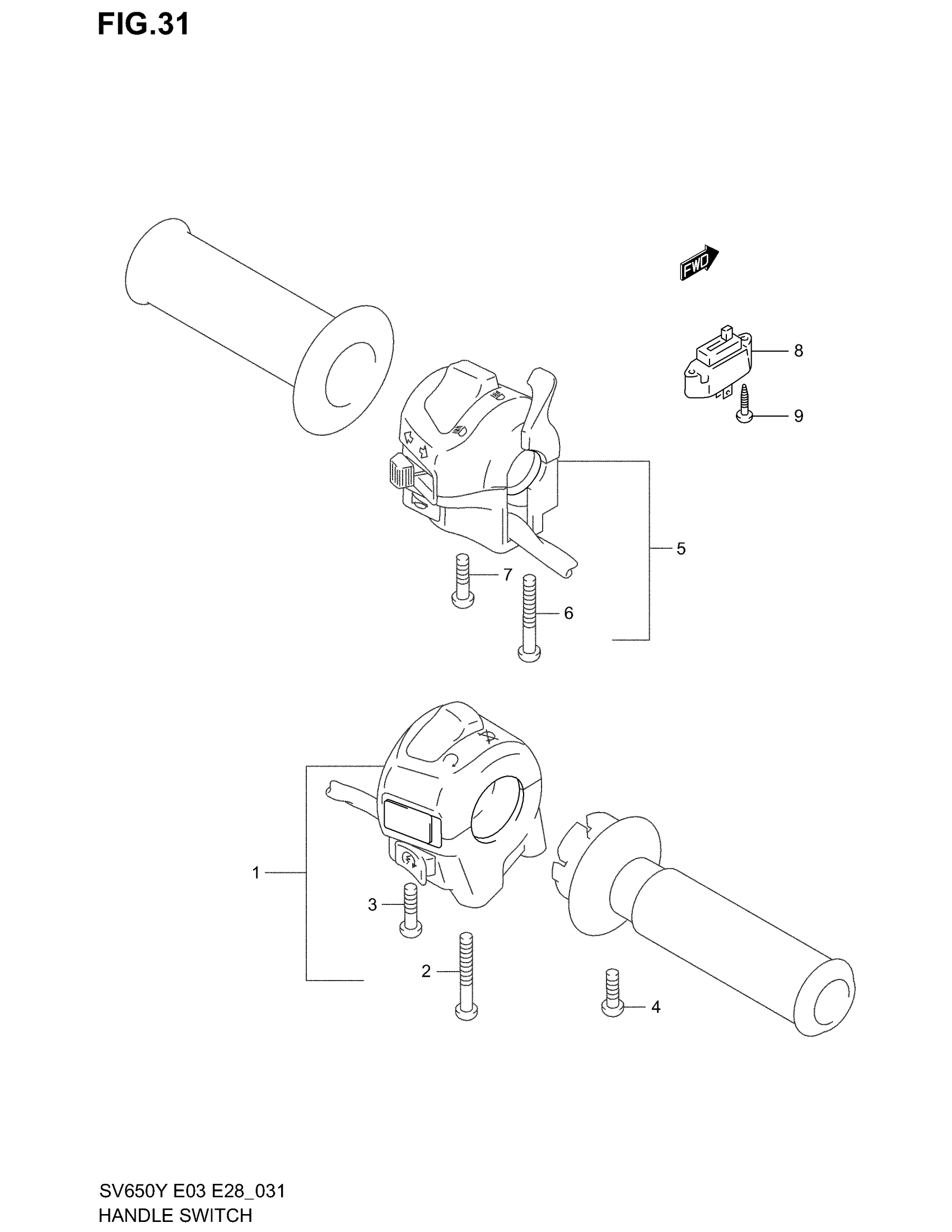

Suzuki SV650 (2002) HANDLE SWITCH (SV650X/Y/K1/K2) Diagram

#

Description

Price

1

SWITCH ASSY, HANDLE RH | Includes Item(s) 2 - 3

37200-27E31

$166.27

2

SCREW This part replaces 02112-05505.

02112-0550B

$2.39

3

.SCREW This part replaces 02112-05305.

02112-0530B

$1.49

4

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

$1.49

5

SWITCH ASSY, HANDLE LH | MODEL X/Y/K1

37400-23E30

$235.75

5

SWITCH ASSY, HANDLE LH | MODEL K2; Includes Item(s) 6 - 7

37400-20F30

Unavailable

6

.SCREW This part replaces 02112-05455.

02112-0545B

$2.26

7

SCREW (5X25)

09125-05066

$1.65

8

SWITCH ASSY, CLUTCH

37560-38A00

$18.50

9

SCREW, CLUTCH SWITCH | MODEL X/Y/K1 This part replaces 37564-26E00.

09132-03017

$2.11

9

SCREW (3X14) | MODEL K2

09132-03017

$2.11
