Description

Price

1

GRIP,THROTTLE This part replaces 57110-46E01.

57110-46E02

$29.06

2

LEVER ASSY, BRAKE | Includes Item(s) 3 - 4

57300-33E01

$48.61

3

BOLT, KNOCKER

57431-17C00

$7.11

4

NUT This part replaces 08316-10063.

08316-1006B

$2.50

5

SWITCH ASSY,FR BRAKE | Includes Item(s) 6 This part replaces 57460-17C00.

57460-14J02

$38.46

6

SCREW

57465-17C00

$2.19

7

GRIP, LH (BLACK) This part replaces 57211-22D01.

57211-22D02-291

$14.55

8

LEVER ASSY,CLUT | SV650X/Y/K1/K2 This part replaces 57500-10D01.

57500-10D31

$46.35

8

LEVER ASSY,CLUT | SV650SX/SY/SK1/SK2; Includes Item(s) 9 - 15 This part replaces 57500-10D80.

57500-10DA1

$46.35

9

LEVER

57620-27A31

$22.77

10

SCREW, BRAKE LEVER PIVOT

57531-14A00

$7.46

11

.NUT This part replaces 08319-21063.

08319-2106B

$2.32

12

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

13

ADJUSTER, CABLE

57441-11010

$5.62

14

NUT, CABLE ADJUSTER

57442-11010

$2.79

15

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78

16

COVER,CLUTCH LE This part replaces 57661-45C00.

57661-45C01

$7.93

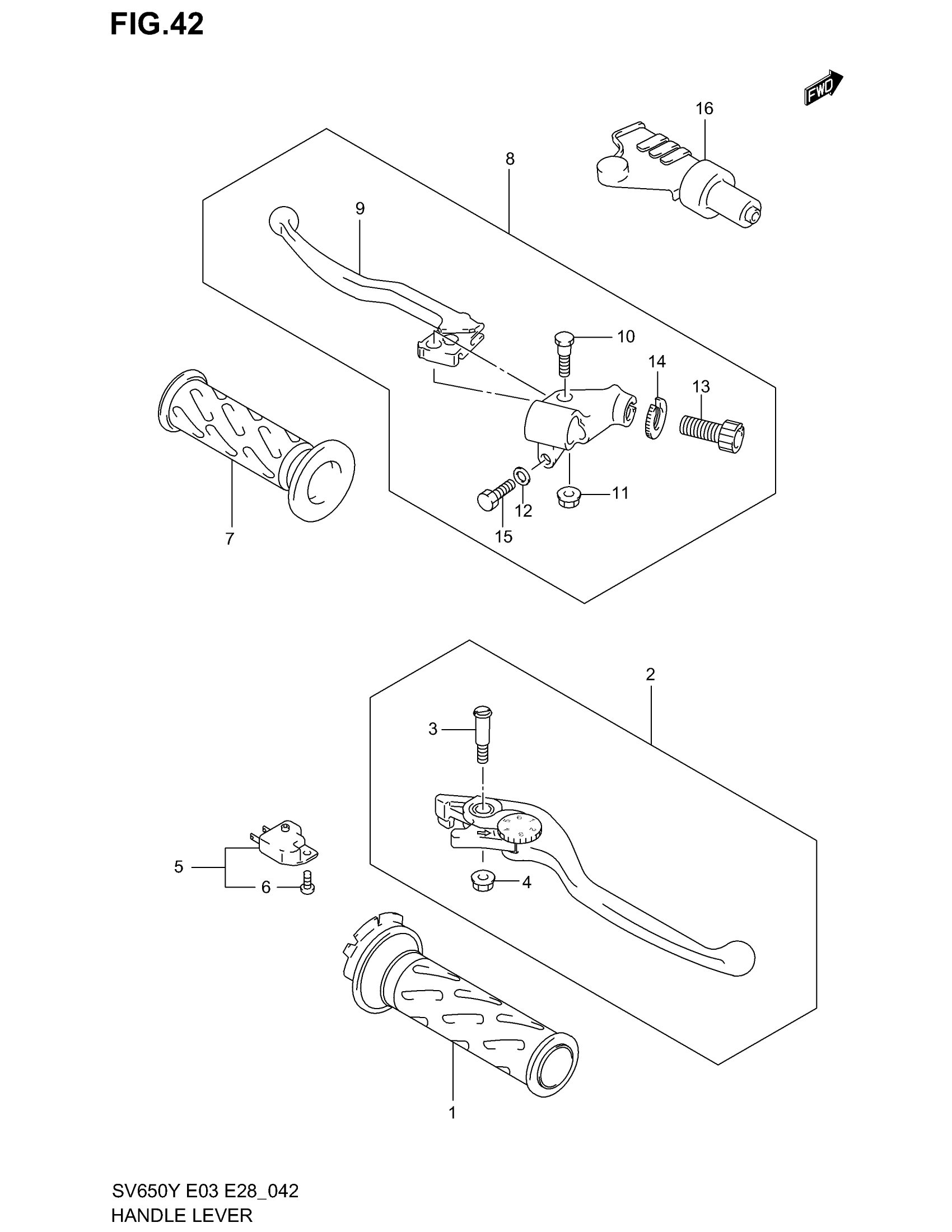

Suzuki SV650 (2002) HANDLE LEVER Diagram
