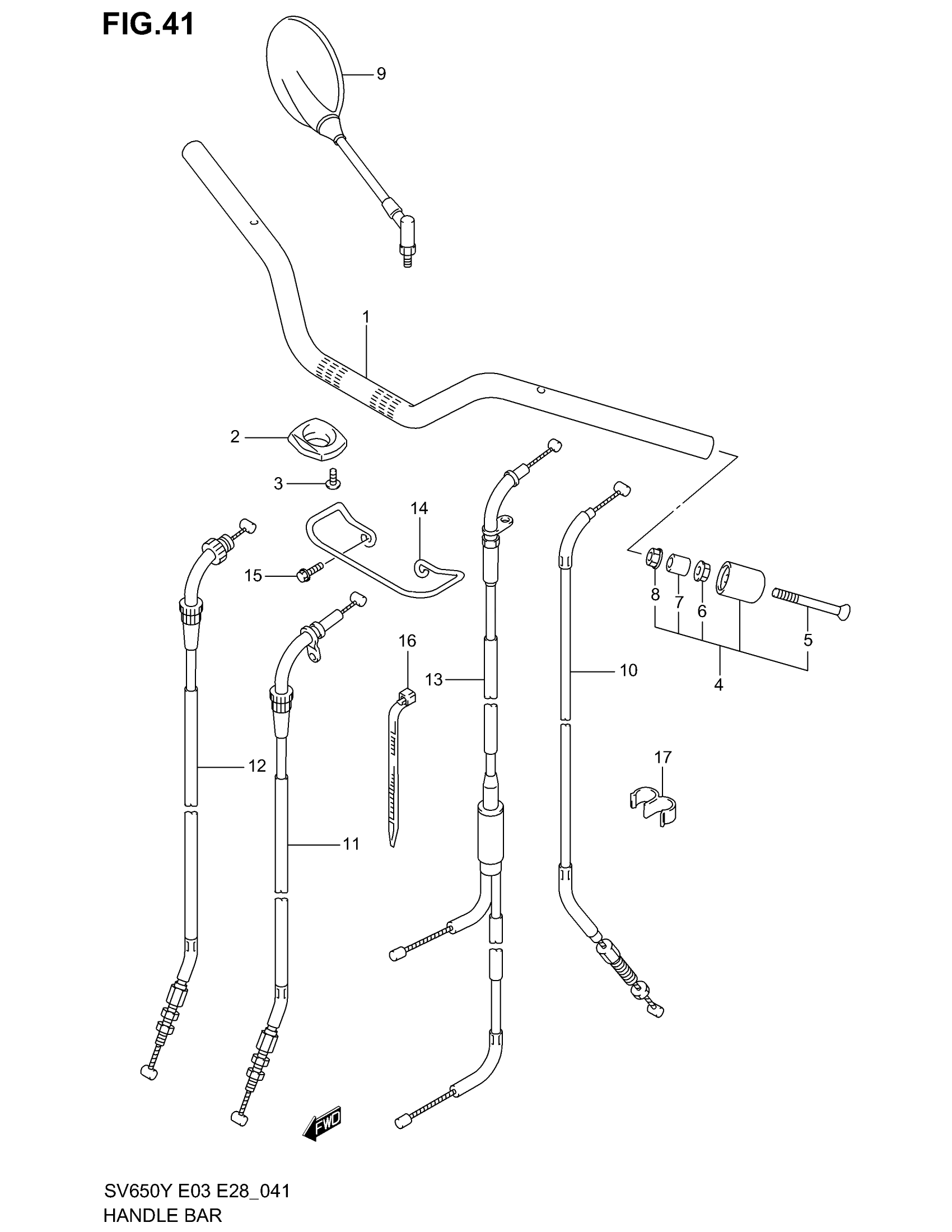

Suzuki SV650 (2002) HANDLE BAR (SV650X/Y/K1/K2) Diagram

#

Description
Price

1

HANDLE BAR | MODEL X/Y

56111-19F20

Unavailable

1

HANDLE BAR | MODEL K1/K2

56111-19F30

$176.32

2

COVER, IGNITION SWITCH

56170-19F00

Unavailable

3

SCREW This part replaces 02142-04123.

02142-0412A

$1.50

4

BALANCER SET,HA | Includes Item(s) 5 - 8 This part replaces 56200-32821.

56200-32823

$24.87

5

SCREW This part replaces 02122-06803.

02122-0680B

$3.72

6

NUT This part replaces 08316-10083.

08316-1008B

$2.66

7

EXPANDER, HANDLE BALANCER

56272-44500

$4.42

8

NUT

09159-06024

$2.11

9

MIRROR ASSY,RR This part replaces 56500-09020.

56500-09091

$154.18

10

CABLE ASSY, CLUTCH

58200-20F00

$18.56

11

CABLE ASSY, THROTTLE NO.1

58300-20F20

Unavailable

12

CABLE ASSY, THROTTLE NO.2 | MODEL X/Y/K1

58300-20F30

Unavailable

12

CABLE ASSY, THROTTLE NO.2 | MODEL K2

58300-20F50

Unavailable

13

CABLE, STARTER

58410-20F00

$63.45

14

GUIDE, CABLE | MODEL X/Y

58621-19F00

Unavailable

14

GUIDE, CABLE | MODEL K1

58621-19F10

Unavailable

14

GUIDE, CABLE | MODEL K2

58621-19F20

Unavailable

15

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

16

CLAMP

09407-14407

$3.57

17

CLIP

09408-00033

$2.83
