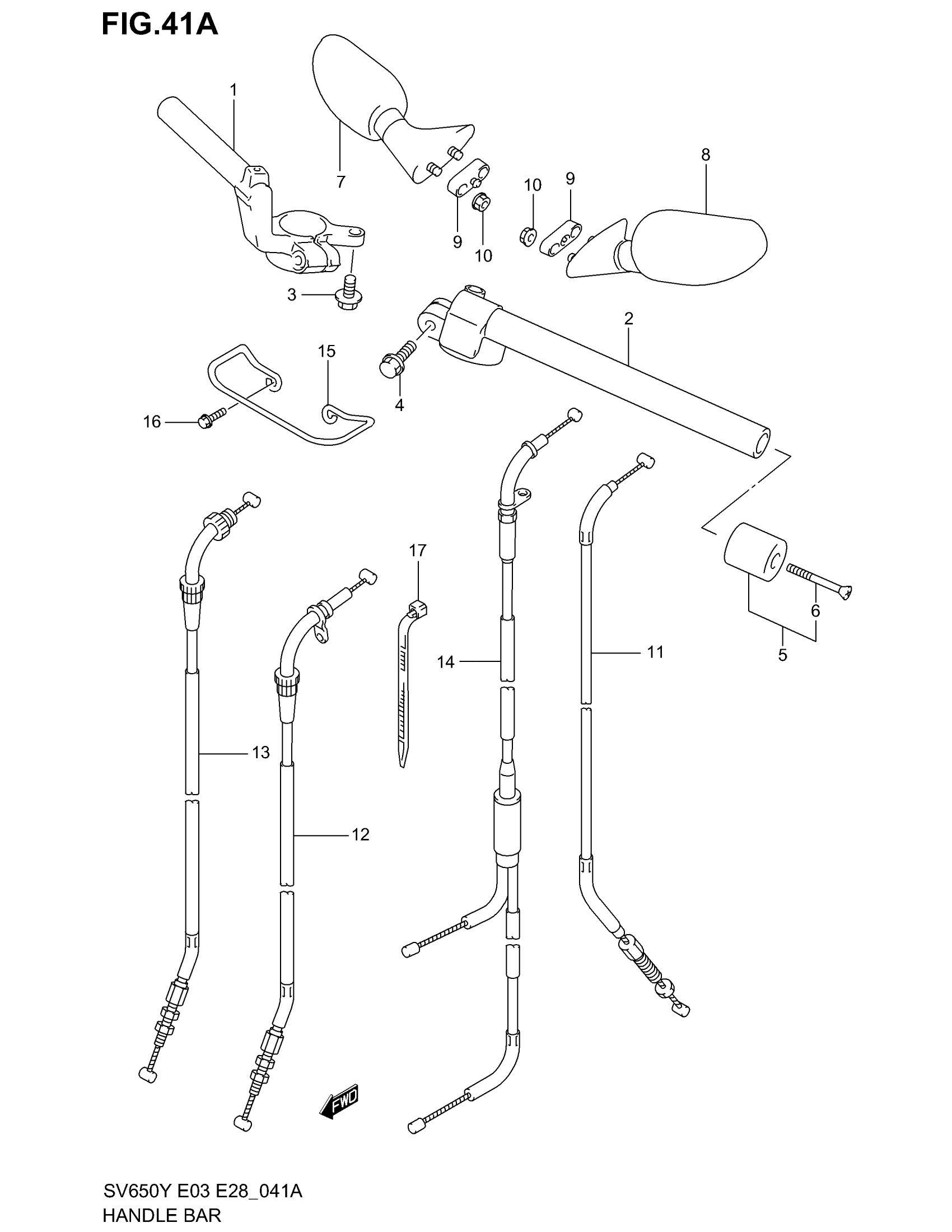

Suzuki SV650 (2002) HANDLE BAR (SV650SX/SY/SK1/SK2) Diagram

#

Description
Price

1

HANDLE BAR, RH

56111-19F00

Unavailable

2

HANDLE BAR, LH

56151-19F00

Unavailable

3

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

4

BOLT (8X30)

09103-08269

$2.71

5

BALANCER SET, HANDLE BAR | Includes Item(s) 6

56200-04821

$45.92

6

SCREW This part replaces 02122-06603.

02122-0660B

$3.04

7

MIRROR ASSY,RR This part replaces 56500-19F00.

56500-19F01

$117.98

8

MIRROR ASSY,RR This part replaces 56600-19F00.

56600-19F01

$109.25

9

CUSHION, REAR VIEW MIRROR

94576-19F00

$7.43

10

NUT, REAR VIEW MIRROR

56619-17C00

$7.72

11

CABLE ASSY, CLUTCH

58200-19F00

$18.94

12

CABLE ASSY, THROTTLE NO.1

58300-20F00

Unavailable

13

CABLE ASSY, THROTTLE NO.2

58300-20F10

Unavailable

14

CABLE, STARTER

58410-19F00

$65.58

15

GUIDE, CABLE | MODEL X/Y

58621-19F00

Unavailable

15

GUIDE, CABLE | MODEL K1

58621-19F10

Unavailable

15

GUIDE, CABLE | MODEL K2

58621-19F20

Unavailable

16

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

17

CLAMP

09407-14407

$3.57
