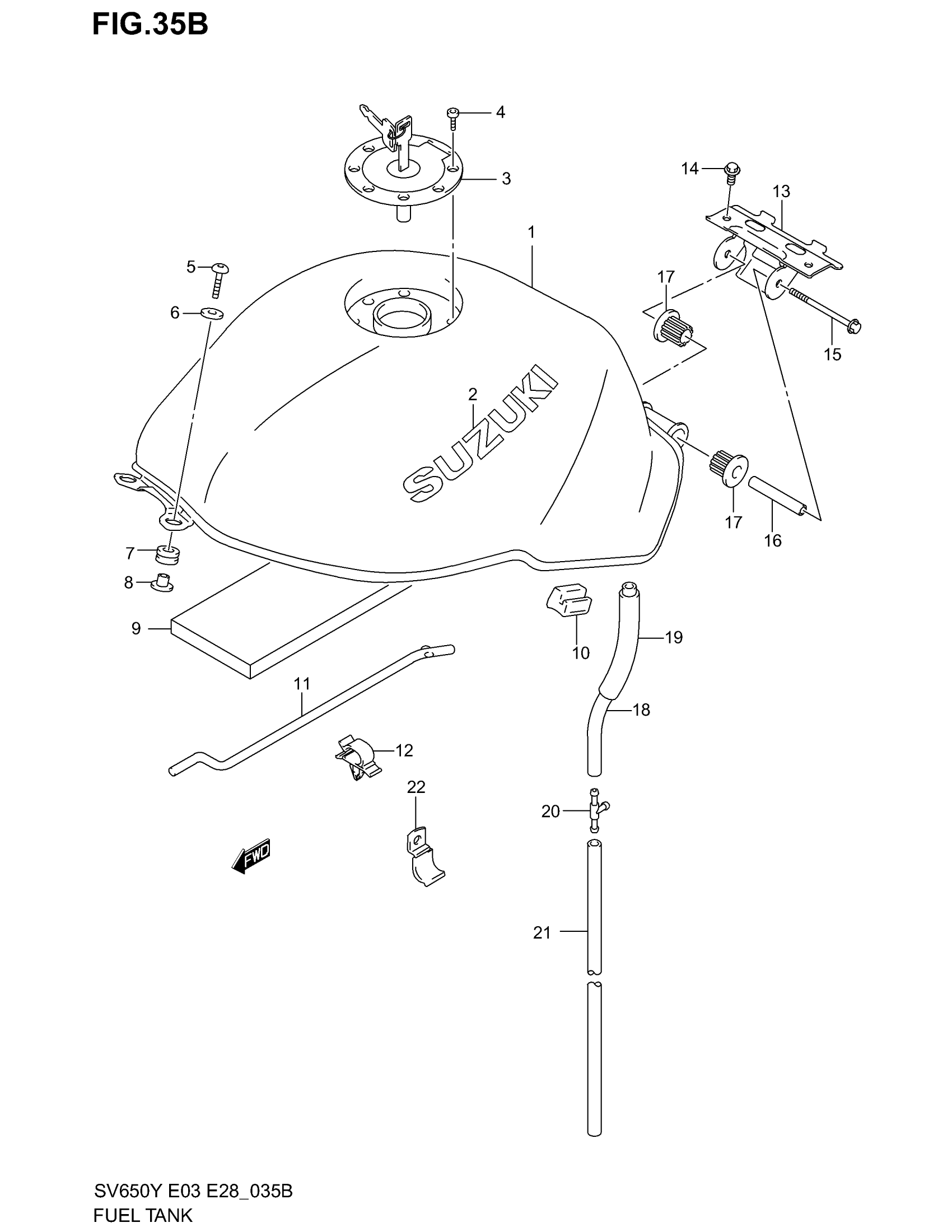

Suzuki SV650 (2002) FUEL TANK (MODLE K1) Diagram

#

Description
Price

1

TANK ASSY,FUEL This part replaces 44100-19F40-19A.

44100-19F60-19A

Unavailable

1

TANK ASSY, FUEL (BLACK)

44100-19F40-Y7L

Unavailable

1

TANK ASSY,FUEL This part replaces 44100-19F40-YC2.

44100-19F60-YC2

Unavailable

1

NO DESCRIPTION AVAILABLE | E33 This part replaces 44100-19F50-19A.

44100-19F70-19A

Unavailable

1

NO DESCRIPTION AVAILABLE | E33 This part replaces 44100-19F50-Y7L.

44100-19F70-Y7L

Unavailable

1

NO DESCRIPTION AVAILABLE | E33; Includes Item(s) 2 - 2 This part replaces 44100-19F50-YC2.

44100-19F70-YC2

Unavailable

2

EMBLEM (SILVER) | FOR 19A This part replaces 68111-12C00-YD8.

68111-12C30-YD8

$25.25

2

EMBLEM | FOR Y7L,YC2 This part replaces 68111-12C00-1ZY.

68111-12C30-1ZY

Unavailable

3

CAP SET,FUEL TA This part replaces 44200-33870.

44200-33872

$211.40

3

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

$252.70

4

BOLT

09106-05017

$2.83

5

SCREW, FRONT

09139-06029

$5.36

6

WASHER

09160-06054

$1.62

7

CUSHION,FUEL TA This part replaces 44511-19F00.

44511-19F01

$5.68

8

CUSHION, LOWER

44512-19F00

$7.44

9

SHIELD, TANK FRONT

44194-19F00

Unavailable

10

CUSHION,FUEL TA This part replaces 44559-19F00.

44559-19F01

$16.60

11

STAY, FUEL TANK

44574-33E01

$15.45

12

CLAMP

09403-05310

$2.66

13

BRACKET, FUEL TANK REAR

44550-19F10

Unavailable

14

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

15

BOLT This part replaces 01550-08853.

01550-0885B

Unavailable

16

SPACER

44561-19F00

Unavailable

17

CUSHION,FUEL TANK RR This part replaces 44541-02F00.

44541-02F01

$11.60

18

HOSE,WATER DRAI This part replaces 44423-19F00.

44423-19F01

$11.01

19

PROTECTOR (L:600->140)

09351-14152-600

$10.62

20

JOINT, 3 WAY

09367-08004

$4.83

21

HOSE(7X10.2X600 This part replaces 09352-70103-600.

09352-70104-600

$5.63

22

CLAMP, DRAIN HOSE

44339-19F00

Unavailable
