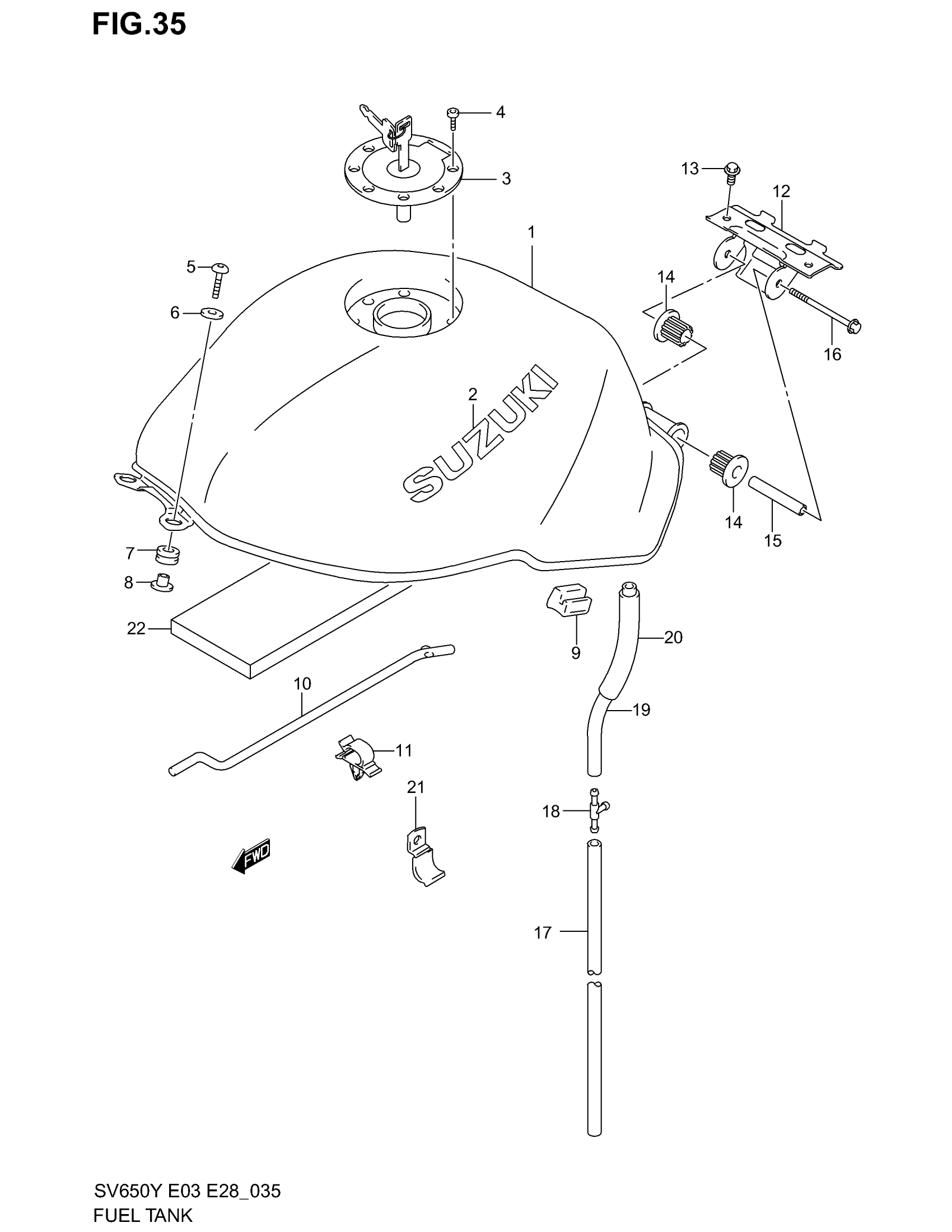

Suzuki SV650 (2002) FUEL TANK (MODEL X) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLUE)

44100-19F00-Y7E

Unavailable

1

TANK ASSY, FUEL (RED)

44100-19F00-Y7M

Unavailable

1

TANK ASSY, FUEL (YELLOW) | SV650SX E28

44100-19F00-Y9F

Unavailable

1

TANK ASSY, FUEL (BLUE) | E33

44100-19F20-Y7E

Unavailable

1

TANK ASSY, FUEL (RED) | E33; Includes Item(s) 2 - 2

44100-19F20-Y7M

Unavailable

2

EMBLEM, FUEL TANK (GRAY) | FOR Y9F,Y7M This part replaces 68111-42E00-20G.

68111-42E20-20G

Unavailable

2

EMBLEM, FUEL TANK (GRAY) | FOR Y7E This part replaces 68111-42E00-1ZY.

68111-42E20-1ZY

Unavailable

3

CAP SET,FUEL TA This part replaces 44200-33870.

44200-33872

$211.40

3

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

$252.70

4

BOLT (L:20)

09106-05017

$2.83

5

SCREW (6X25)

09139-06029

$5.36

6

WASHER (6.5X22X1.6)

09160-06054

$1.62

7

CUSHION,FUEL TA This part replaces 44511-19F00.

44511-19F01

$5.68

8

CUSHION, FRONT

44512-19F00

$7.44

9

CUSHION,FUEL TA This part replaces 44559-19F00.

44559-19F01

$16.60

10

STAY, FUEL TANK

44574-33E01

$15.45

11

CLAMP

09403-05310

$2.66

12

BRACKET, FUEL TANK REAR

44550-19F10

Unavailable

13

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

14

CUSHION,FUEL TANK RR This part replaces 44541-02F00.

44541-02F01

$11.60

15

SPACEER, FUEL TANK REAR

44561-19F00

Unavailable

16

BOLT This part replaces 01550-08853.

01550-0885B

Unavailable

17

HOSE(7X10.2X600 This part replaces 09352-70103-600.

09352-70104-600

$5.63

18

JOINT, 3 WAY

09367-08004

$4.83

19

HOSE(7X10.2X600 This part replaces 09352-70103-600.

09352-70104-600

$5.63

20

PROTECTOR (L:600->140)

09351-14152-600

$10.62

21

CLAMP, DRAIN HOSE

44339-19F00

Unavailable

22

SHIELD, TANK FRONT

44194-19F00

Unavailable
