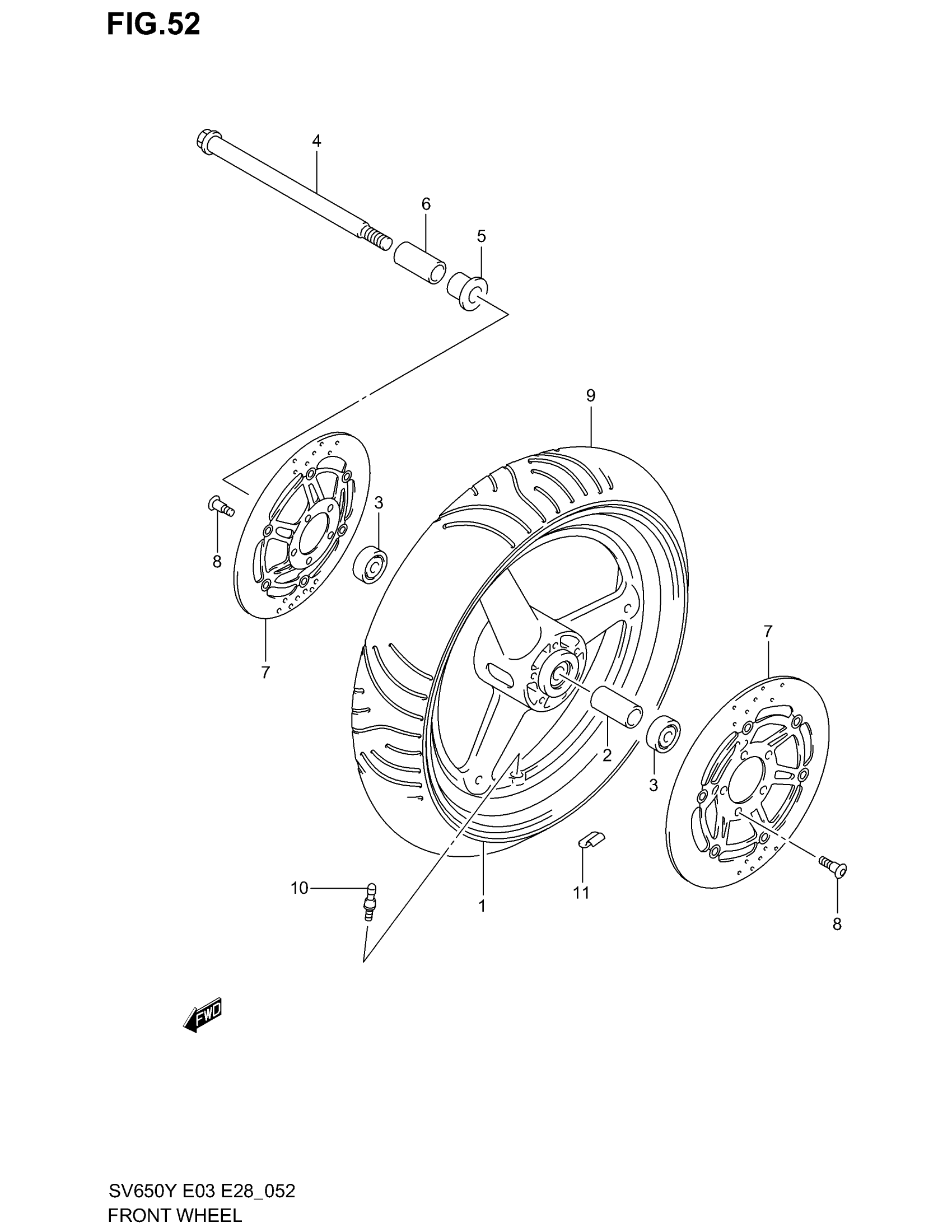

Suzuki SV650 (2002) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL,FR,17M/CX | MODEL X/K1/K2 This part replaces 54111-03FA0-Y6G.

54111-03FA1-Y6G

Unavailable

1

WHEEL,FR,17M/CX | MODEL Y This part replaces 54111-03FA0-12R.

54111-03FA1-12R

Unavailable

2

SPACER (17.5X22.5X73)

09180-17094

$18.20

3

BEARING This part replaces 08133-62037.

08133-6203B

$17.61

4

AXLE, FRONT

54711-07F00

$51.31

5

SPACER, FRONT AXLE RH

54740-32C00

$18.43

6

SPACER, FRONT AXLE RH

54741-03FA0

Unavailable

7

DISC, FRONT BRAKE

59210-08F00

Unavailable

8

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

9

TIRE, FRONT,120/60 ZR17(55W) | (METZELER)

55110-20F00

Unavailable

10

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

11

BALANCER, WHEEL (10G)

55411-00A00

$1.49

11

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$7.05
