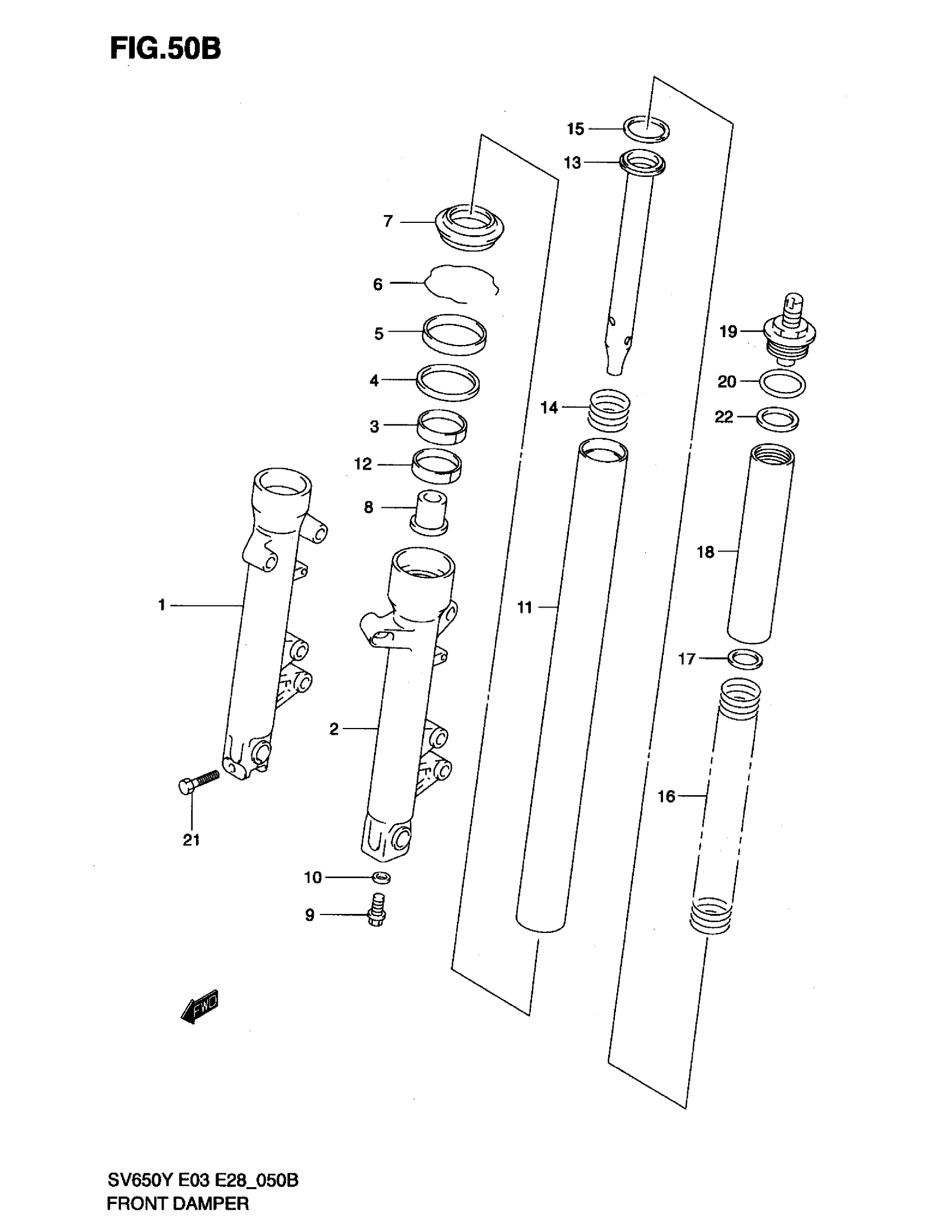

Suzuki SV650 (2002) FRONT FORK DAMPER (MODEL K2) Diagram

#

Description
Price

DAMPER ASSY, FRONT FORK RH | SV650K2 E3,E33

51103-20FC0

Unavailable

DAMPER ASSY, FRONT FORK LH | SV650K2 E3,E33

51104-20FC0

Unavailable

DAMPER ASSY, FRONT FORK RH | SV650SK2 E28

51103-20FA0

Unavailable

DAMPER ASSY, FRONT FORK LH | SV650SK2 E28

51104-20FA0

Unavailable

DAMPER ASSY, FRONT FORK RH | SV650SK2 E3,E33

51103-20FD0

Unavailable

DAMPER ASSY, FRONT FORK LH | SV650SK2 E3,E33; Includes Item(s) 1 - 22

51104-20FD0

Unavailable

1

TUBE, OUTER RH

51130-20FA0

Unavailable

2

TUBE, OUTER LH

51140-20FA0

Unavailable

3

METAL, SLIDE

51167-26E10

$24.52

4

WASHER

51158-05A00

$5.83

5

SEAL, OIL

51153-14F00

$20.70

6

CIRCLIP

51156-49440

$5.05

7

SEAL, DUST

51173-14F00

$23.07

8

PIECE, OIL LOCK

51195-33D10

$26.20

9

BOLT

51147-16510

$4.34

10

WASHER

51148-41310

$2.26

11

TUBE, INNER

51110-20F00

Unavailable

12

PISTON

51121-33D10

$18.90

13

CYLINDER | SV650K2/SK2 E3,E33

51146-20F50

Unavailable

13

CYLINDER | SV650SK2 E28 This part replaces 51146-20F30.

51146-20F50

Unavailable

14

SPRING

51177-06C00

$13.05

15

RING, PISTON

51196-31F00

$7.05

16

SPRING, FRONT

51171-20FA0

Unavailable

17

WASHER

51356-10D03

$7.50

18

SPACER, SPRING | SV650K2/SK2 E3,E33

51176-20FC0

Unavailable

18

SPACER, SPRING | SV650SK2 E28

51176-20FA0

Unavailable

19

CAP

51351-10D80

$57.77

20

O RING

09280-32001

$2.06

21

BOLT, RH

01550-08457

$4.00

22

WASHER, UPPER

51192-06C00

$6.47
